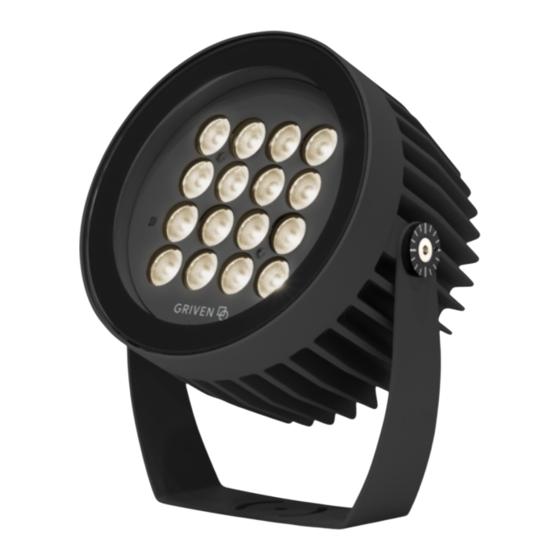

Jupiter
Code / Codice
Power consumption
Consumo di energia
Power supply
Alimentazione elettrica
Inrush current
Corrente di spunto
Power factor
Fattore di potenza
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
Startup temperature
Temperature di avvio
IP rating / Grado IP
IK rating / Grado IK
Size / Dimensioni
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 4.0
Date:22/11/2022
AL5340
186
7.32
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
Jupiter
0.18A @ 230V / 38W max.
120-277V / 50-60 Hz
27.9A@230VAC / Cold start
cos.φ= 0.91
3 Kg / 6.6 lb
-40°C to 50°C / (-40°F to 122°F)
-30°C to 50°C / (-22°F to 122°F)
40°
.
551115
Jupiter MC
AL5345
I
IP67
IK07
134.1
5.28
47.5
1.87
page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Jupiter
Summary of Contents for Griven Jupiter

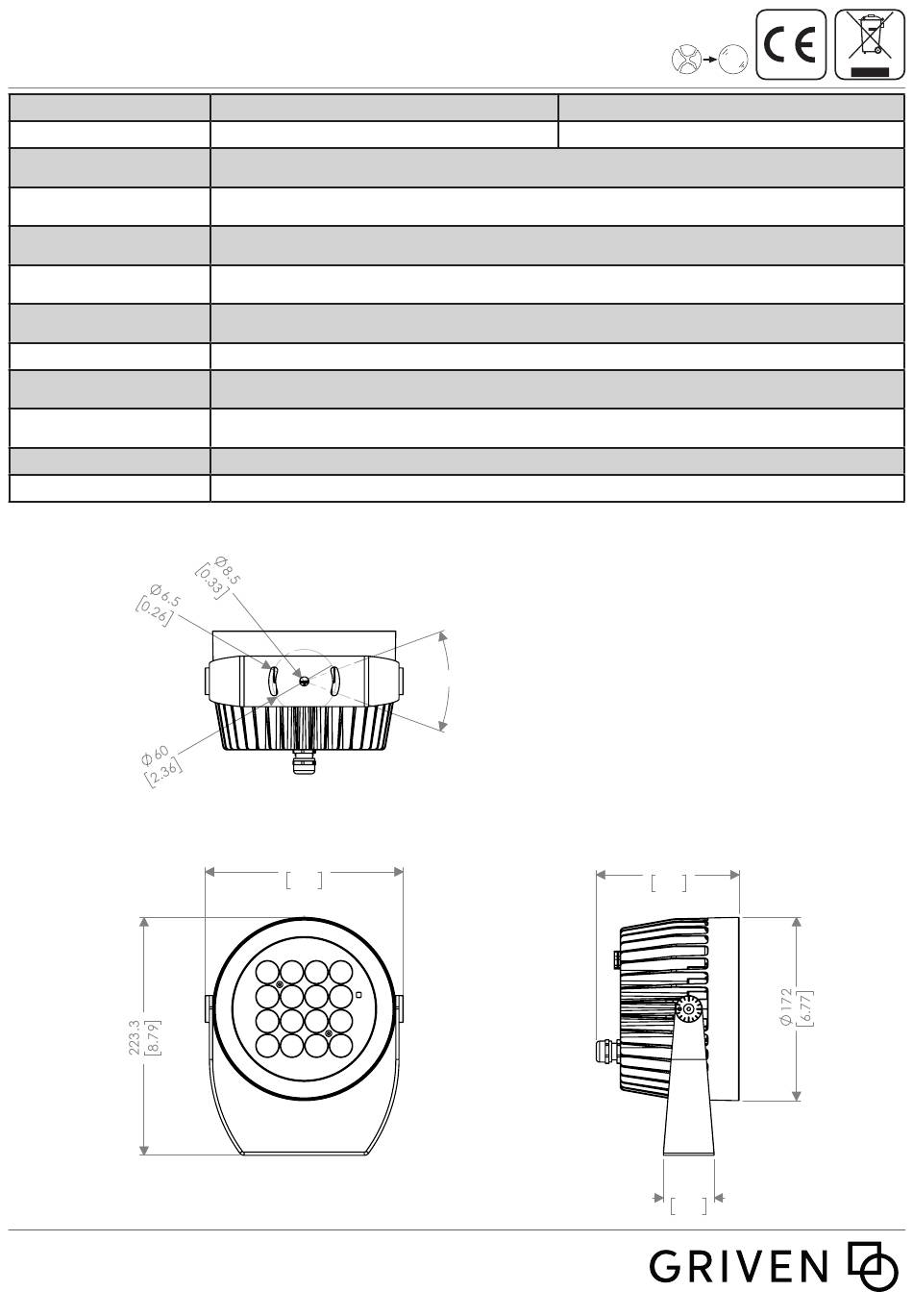

- Page 1 1 of 10 1.87 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Replaceable (LED only) light source by a professional professionista This product contains a light source of energy efficiency Questo prodotto contiene una sorgente luminosa di classe class: di efficienza energetica: 3000K 4000K Dynamic White RGBW 4000K page 2 of 10 Jupiter Rev. 4.0 551115...
- Page 3 Step 1 / Passo 1 134.1 7.32 5.28 Step 2 / Passo 2 47.5 1.87 A=size 3 (ISO) / B=size 2 (ISO) A=Cacciaviti 3 (ISO) / B=Cacciaviti 2 (ISO) Step 3 - Passo 3 page 3 of 10 Jupiter Rev. 4.0 551115...
- Page 4 Nota: i collegamenti di potenza e di segnale dei cavi di tipo S e M possono essere effettuati utilizzando il kit page 4 of 10 di collegamento opzionale. Seguire le istruzioni fornite insieme al kit di connessione. Jupiter Rev. 4.0 551115...
- Page 5 Single Chain con guration - M type cable Con gurazione catena singola - Tipo di cavo M 120Ω RESISTANCE RESISTENZA 120Ω Junction Box Scatola di giunzione (Not supplied by Griven) (Non fornito da Griven) (Minimum IP Rating: IP67) (Classi cazione IP minima: IP67) Power Input Ingresso alimentazione...
- Page 6 Neutral DMX Configurations / Configurazioni DMX DMX Cable Code: AL0512 Yellow/Green Ground Junction Box (Not supplied by Griven) Minimun IP Rating: IP67 DMX Data + Single Chain con guration - M type cable Black DMX Data - Max. 10A Use a DMX repeater on each xture of the daisy...
-
Page 7: Dmx Mode
¹ WARNING ! in this mode, no other DMX control device must be present along the line. ² Only on wireless fixtures ¹ ATTENZIONE ! in questa modalità non deve essere presente lungo la linea nessun altro dispositivo di controllo DMX. page 7 of 10 ² Solo su dispositivi wireless Jupiter Rev. 4.0 551115... -
Page 8: Dmx Chart
0-100% Green fine tunig 0-255 • Temperature: it displays the LEDs operating temperature IR=8 0-100% Blue 0-255 value. 0-100% Blue fine tuning 0-255 0-100% White 0-255 0-100% White fine tuning 0-255 page 8 of 10 Jupiter Rev. 4.0 551115... - Page 9 Query Scene level Query Groups 0...7 Query Groups 8...15 Query Random Address High Query Random Address Middle Query Random Address Low DALI version: 1, Device Type: 6(LED), Minimum Physical Level: 1 (0.1%) page 9 of 10 Jupiter Rev. 4.0 551115...
- Page 10 WARNING: At very low temperatures (below -20° C), it is mandatory to leave the fixture always powered and to switch on the LEDs when needed. ATTENZIONE: A temperature molto basse (inferiori a -20 ° C), è obbligatorio lasciare sempre l’apparecchio alimentato e accendere i led quando necessario. page 10 of 10 Jupiter Rev. 4.0 551115...
