Center Box - ScrapBox WorkBox 3.0 Assembly Manual

CENTER BOX

1
Nuts
x16
2
Insert (2) Posts into post holes on
top side of Center Box Base.
Finished Edge
Center Box
Divider 1
Build on a blanket for best results

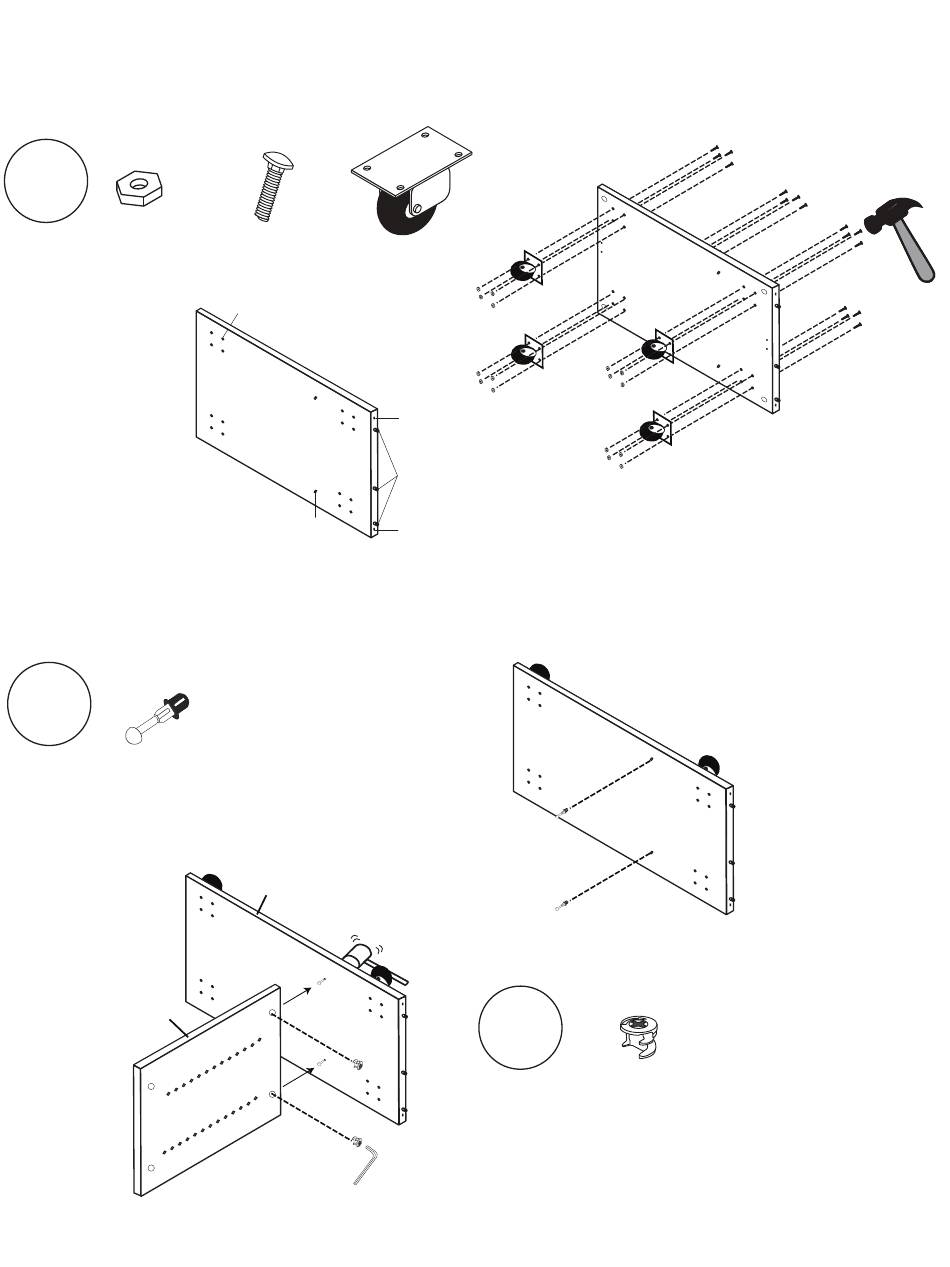

First, assemble the lower section of the Center Box.
x16
Bolts
Pre-drilled
wheel screw
Center Box
holes
Base Top View
Post
hole
x2
Posts
Finished Edge
Center Box
Base
Bottom View
Wheels
x4
Post hole
Green dowel
Hammer (16) bolts into top of base.
Install (4) wheels onto bolts.
Post hole
Tighten with (16) nuts using a
wrench or socket wrench.
Do NOT overtighten screws
Center Box
Base
Top Side
3
Fit Divider 1 onto posts with finished
edges facing up. Tap with Mallet to secure.
Insert (2) Cams at bottom of Divider 1 and
tighten with Allen Wrench until secure.
Center Box
Base
(wheels should spin freely)
x2
Locking
Cams
17
