AMP Research Power Step 10-02996-13 Installation Manual page 5

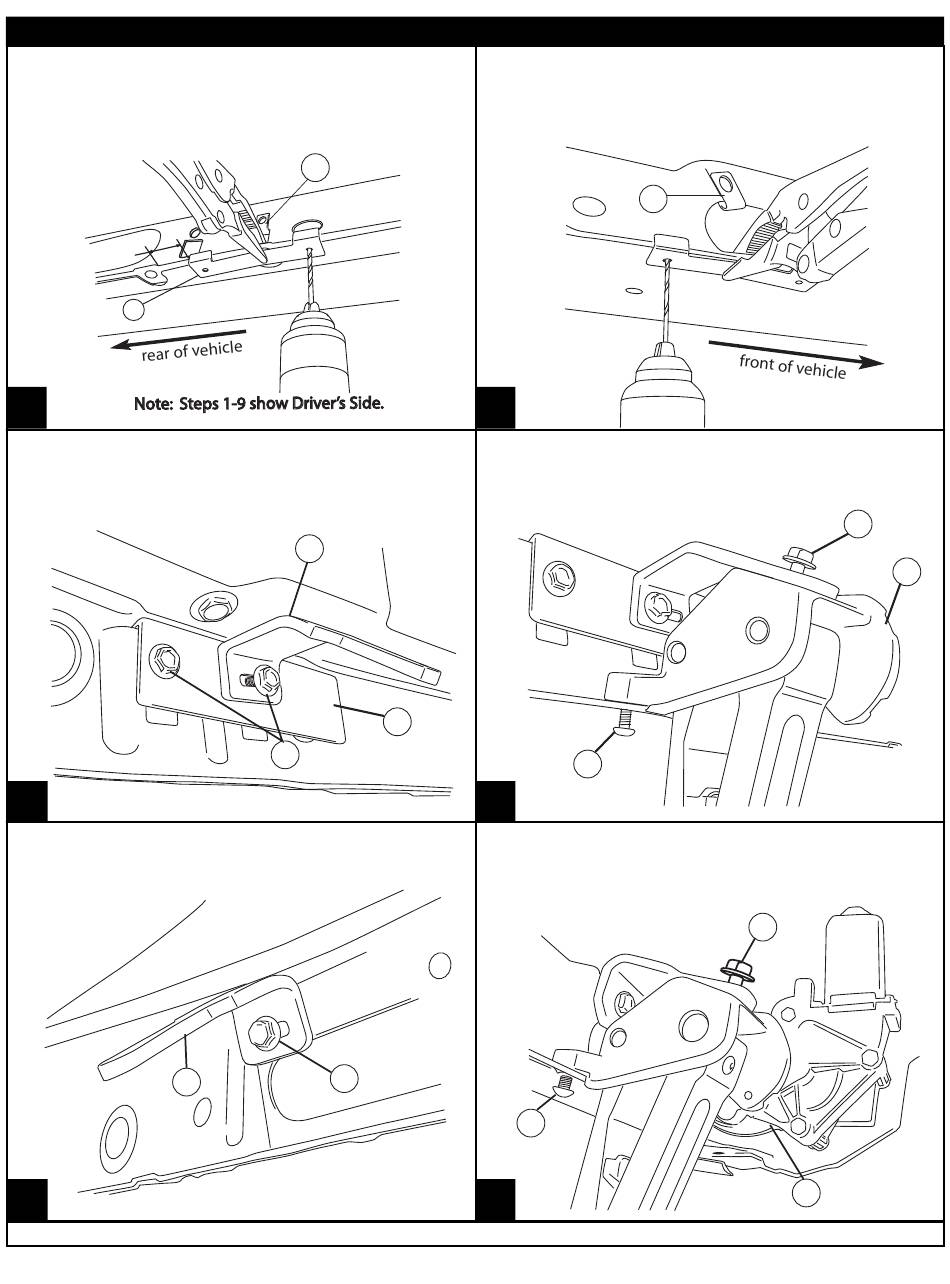

Install U-Nut. Drilling Rear Mounting Holes: Posi-
tion and clamp drill template as shown, (center on
U-Nut) and pilot drill mount holes with 1/8" drill bit.
Remove template and drill holes to 21/64" .
1.2"
8
1
Mounting Rear Brackets: Install two u-nuts if
not already present. Install support bracket and
then install Rear Bracket. Do not tighten bolts
yet.
3
3
Mount Front Bracket to upper stock mounting
hole that the drill template was centered about.
10
5
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P – F O R D F 1 5 0 S U P E R C R E W
13
9
15
15
Install U-Nut. Drilling Forward Mounting Holes:
Position and clamp drill template as shown,
(center on U-Nut) centering the template
around stock mounting hole.
2
Position Idler Mount at rear mount location and
bolt to bracket and drilled mounting holes.
Snug all bolts... do not fully tighten.
12
4
Position motor linkage assembly in forward
mounting position and bolt to bracket and
drilled mounting holes. Snug all bolts... do not
fully tighten.
14
6
5/10
13
14
11
IM2996 rev 11.27.06
