LED Display

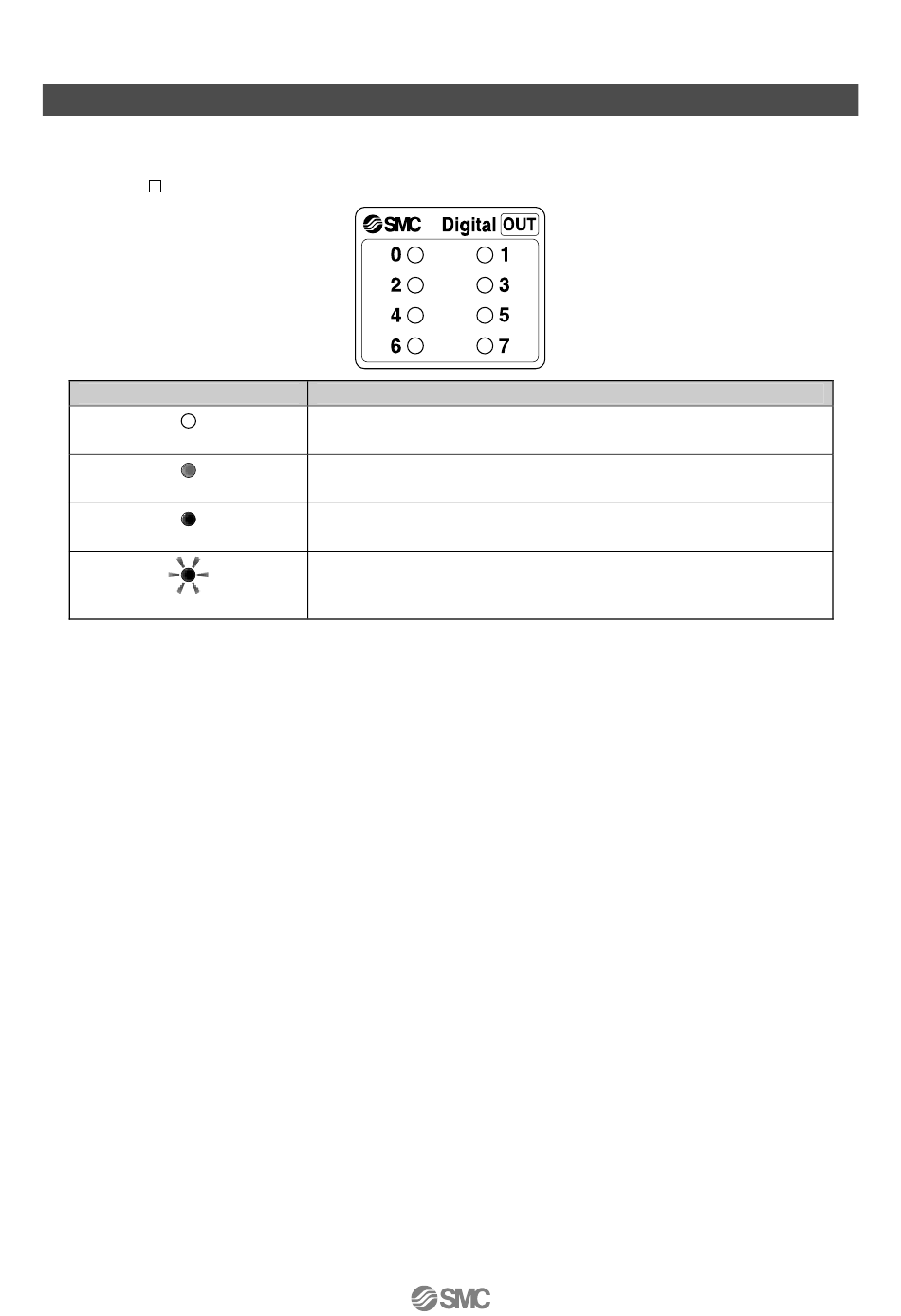

The status display LED shows the following unit state.
Various kinds of status can be checked as
•EX600-DY B
Display
OFF
Green LED is ON
Red LED is ON
Red LED is flashing
∗: Refer to troubleshooting (SI unit Operation Manual of protocol used) for the further details of countermeasures.
follows:
The power supply for control and input, or the output device, is OFF.
The output device is ON.
The output device has a short circuit.
Either of the following conditions:
•The output device ON/OFF count has exceeded the set value.
•The output device is open circuit.
