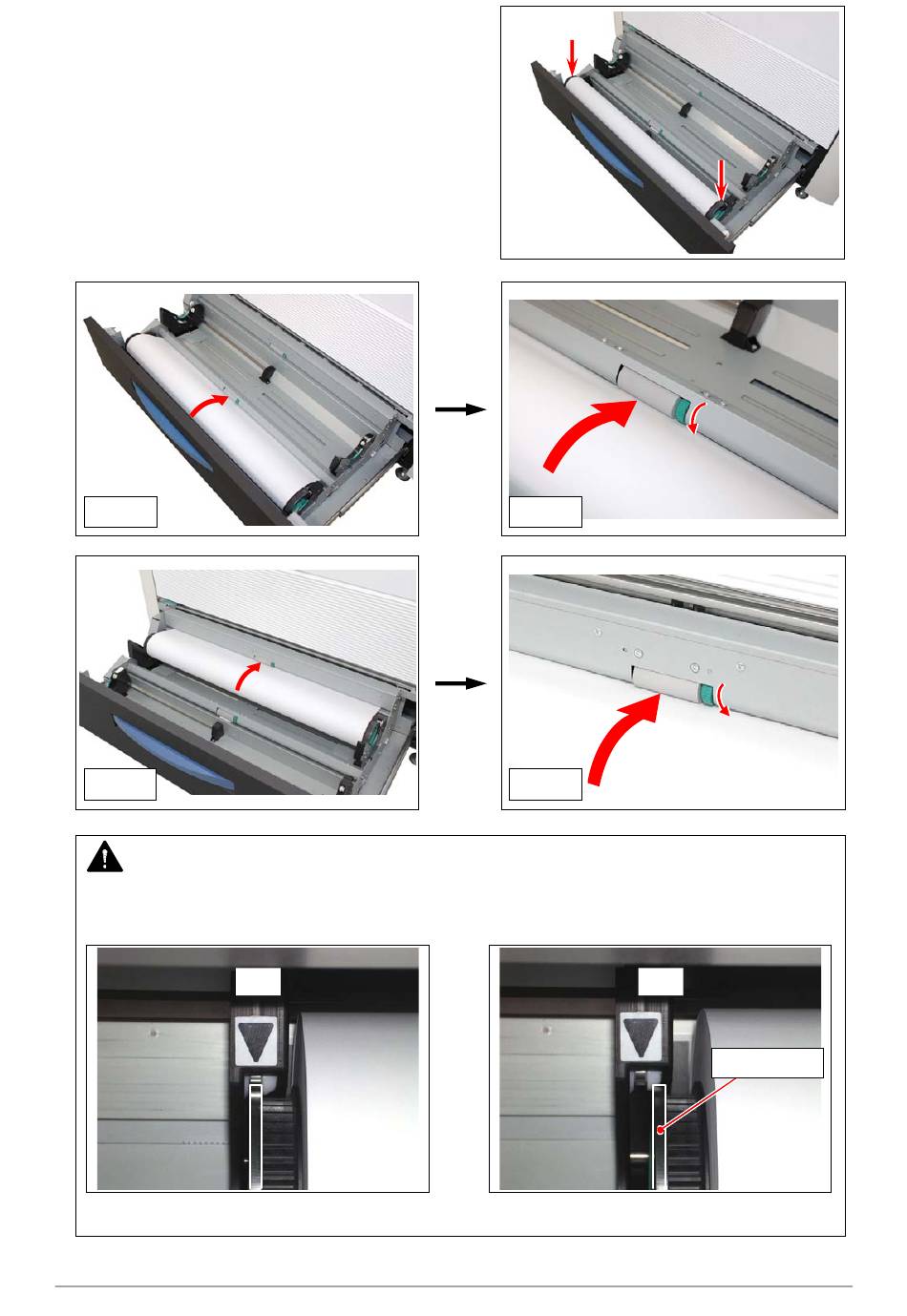

3. Set the roll media correctly.
Roll 1
Roll 2
NOTE
The outside rim of Flange should meet the black triangle marked on Slide Guide. Otherwise
the roll media may fall in Roll Deck or result in an incorrect media feeding.
OK
Correct
Roll 1
Roll 2
3-4
NG
Out of position
Wrong
