KIP 700m - User Manual
Version A3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIP 700m and is the answer not in the manual?

Questions and answers

MV
April 22, 2025

ROLL NOT RECOGNISING

0
1 comments:
Mr. Anderson
May 11, 2025

The KIP 700m may not recognize the roll if the end of the roll media is not fixed to the core with glue or tape. In that case, a small portion of the media may remain in the media path when the roll is empty, and the printer does not show a mis-feed error for it. This can prevent proper roll detection. You should check for remaining media through the square window in the Roll Deck and rotate the green roller to remove it.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for KIP KIP 700m

Summary of Contents for KIP KIP 700m

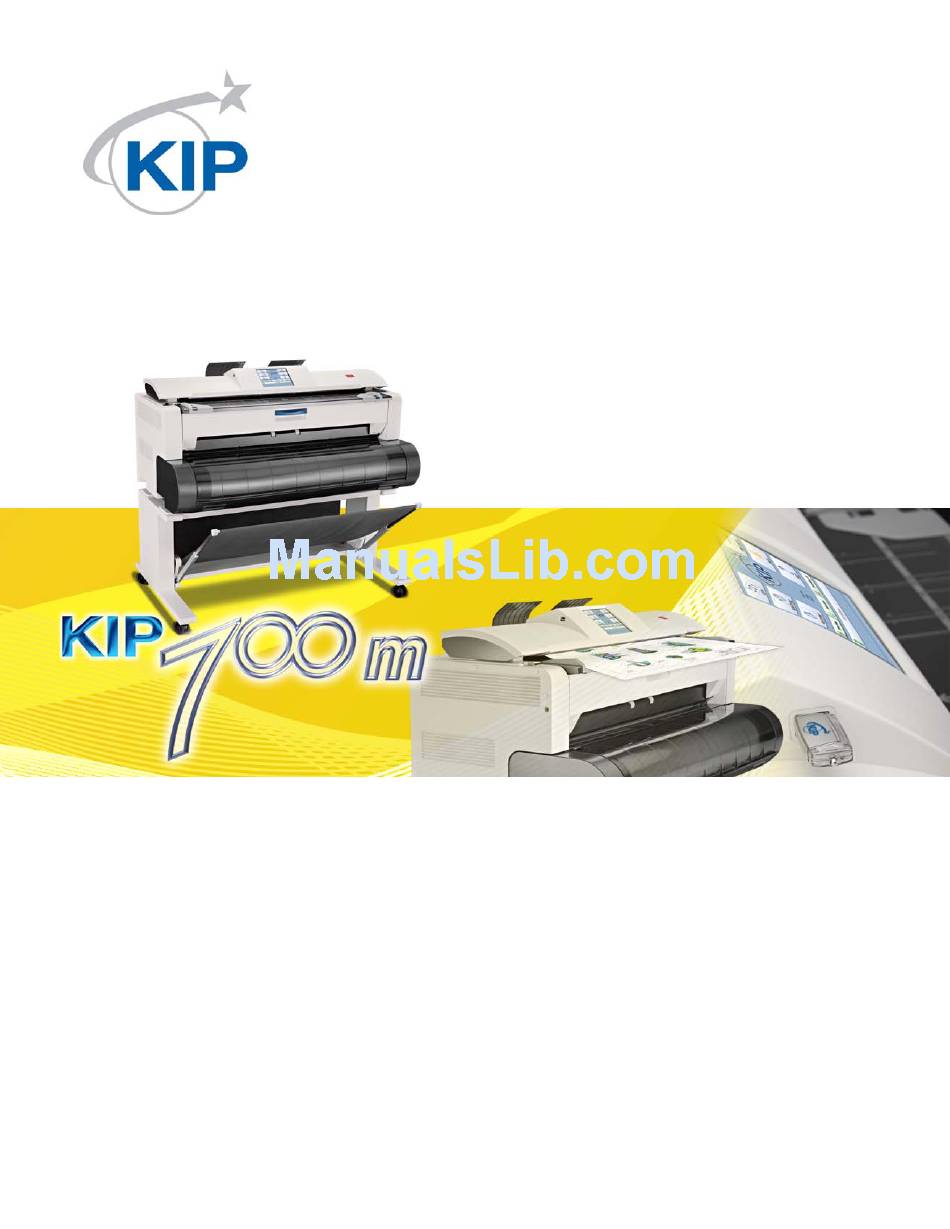

  • Page 1 KIP 700m - User Manual Version A3...
  • Page 2 Thank you for purchasing the Multi-Function Printer KIP 700m. This Hardware Operation Guide contains functional and operational explanations for the KIP 700m. Please read this Hardware Operation Guide carefully before using the printer. Please keep this Hardware Operation Guide for future reference.

  • Page 3: Safety Warnings

    Safety Warnings The following warnings are very important in order to safely use this product. These notes are important in preventing danger to the operator or operation of the printer. The following symbols are found throughout the USER’S Manual and have the following meaning: WARNING This WARNING mark means that there is a possibility of death or serious injury if you ignore or do not follow the said instruction.
  • Page 4 WARNING Ground the product with a correct ground source or you may be electrically shocked. 1. The Power source should be as follows: In U.S.A. : 120V plus/minus10%, 50/60Hz, 15A or higher In Europe : 220-240V plus6% or minus10%, 50/60Hz, 10A or higher 2.
  • Page 5 CAUTION Do not install the printer in a humidified room or a dusty room. Also, do not install the printer on an unstable floor as injuries may occur. 1. Unplug the printer before you move it. The power cord may be damaged and it may result in a fire or electric shock.
  • Page 6 POWER CORD INSTRUCTION The installation of (or exchange to) a power plug which fits in the wall outlet of the installation location shall be conducted in accordance with the following: WARNING Select a power plug which meets the following criteria; - The plug has a voltage and current rating appropriate for the product’s rating marked on its name plate.
  • Page 7 Chapter 1 Before Use page 1. 1 Installation Requirements 1- 2 1. 2 Originals Prohibited from Duplication 1- 3 1. 3 Features 1- 4 1. 4 Specifications 1- 5 1. 4. 1 General 1- 5 1. 4. 2 Printer part 1- 7 1.
  • Page 8 (Refer to the following figure.) The equipment must be leveled and the floor strength must be ample to sustain the weight of the equipment. 20cm/8” or larger with no option (Rear) KIP 700m 10cm/4” or larger 10cm/4” or larger (Front) 20cm/8” or larger...
  • Page 9 1. 2 Originals Prohibited from Duplication It is not necessarily allowed to copy every kind of original. You may be punished by the law if only you possess the copy of some kind of original. We recommend you to consider enough before you copy such original. [Originals prohibited from copying by the law] 1.
  • Page 10 1. 3 Features (1) KIP 700m is a Multi-Function Printer for scan, copy and print large format documents. Some of these features may be optional. (2) Front loading - front delivery structure saves the installation space. (3) Various media source; roll media feeding (1 roll), cut sheet manual feeding, Paper Tray multiple cut sheet feeder (option).
  • Page 11 1. 4 Specifications 1. 4. 1 General Subject Specification Model KIP 700m Configuration Console Power consumption 1500w (US model) (Maximum) 1600w (Europe/Asia model) (Including Scanner & Controller Unit) Power consumption 13w or less (US model) (Low power mode) 13.5w or less (Europe/Asia model)
  • Page 12 1. 4. 2 Printer part Subject Specification Printing method LED Array Electro photography Photoreceptor Organic Photoconductive Drum Print speed 40mm per second (Inch) 1.7ppm/E 2.9ppm/D Landscape (Metric) 1.6ppm/A0 2.8ppm/A1 Landscape Print head LED Array Resolution of print head 600dpi x 600dpi Print width Maximum 914mm / 36”...
  • Page 13 Subject Specification Media source 1 Roll Deck (3” / 2” core roll) Manual Feeder (single cut sheet) Paper Tray (multiple cut sheet, option) Media (Recommended Roll Media) - US model: Bond : 64g/m to 80g/m , US Bond (20# Bond) Vellum : US Vellum (20# Vellum) Film...
  • Page 14 1. 4. 3 Scanner part Subject Specification Scanning method Contact Image Sensor (CIS) (5 pieces of A4 sized CIS) Light source LED (R/G/B) Setting of original Face up Starting point of scan Center Scan width Max: 914.4mm / 36” Min : 279.4mm Scan length Max:...

  • Page 15: Front View

    1. 5. 1 Front view Name Function Main Switch You can turn on/off the KIP 700m. Original Guides Feed the original under the Scanner Unit along the Original Guides. User Interface This is a Touch Screen, and many kinds of user operation are available.

  • Page 16: Rear View

    Open here to access toner supply system. Original Guide These trays catch the original ejected from the Scanner Unit. LAN Port Connect the LAN Cable to connect the KIP 700m to the network. (Do not connect a telephone line) USB Port Service Use, 5VDC max. Breaker It is possible to shut off supplying the AC power.
  • Page 17 1. 6 Specifications for the Scan Original A scan original must satisfy the following specifications. Thickness 0.05mm to 1.6mm Width 279.4mm to 914.4mm Length 210mm to 6,000mm (If an original is thicker than 0.65mm, its image quality is not guaranteed even it is transported.) Do not scan the following kinds of originals.
  • Page 18 Not square K I P K I P Metal or fabric material Metal Fabric K I P K I P Rough surface (Carbon paper for example) Rough surface Clipped or stapled Clipped Stapled K I P K I P 1-12 Chapter 1 Before Use...
  • Page 19 The following kinds of originals can be read with using a carrier sheet. Image quality or the reliability of paper feeding for them is not guaranteed. Patched Punched 1-13 Chapter 1 Before Use...

  • Page 20: Papers Not Available To Use

    1. 7 Specifications for the Printing Paper 1. 7. 1 Papers not available to use Do not use the following kinds of printing paper. Doing so may damage the print engine. Excessively curled (a diameter of 50 mm or less) Folded Creased Torn...

  • Page 21: Keeping The Paper In The Custody

    Pre-printed Extremely slippery Extremely sticky Extremely thin and soft OHP Film CAUTION Do not use the paper with staple, or do not use such conductive paper as aluminum foil and carbon paper. The above may result in a danger of fire. NOTE (1) Print image may become light if printed on a rough surface of the paper.

  • Page 22: Treatment Against Environmental Condition

    1. 7. 3 Treatment against environmental condition Take a necessary treatment according to the environmental condition as shown below. Humidity(%) Possible problem Necessary treatment “Void of image”, “crease of paper” and 1. Install an humidifier in the room, and other problems occurs when you print humidify the room air.

  • Page 23: Table Of Contents

    Chapter 2 Basic Operation page 2. 1 Turning on KIP 700m 2- 2 2. 2 Turning off KIP 700m 2- 4 2. 3 Replacing Roll Media 2- 5 2. 4 Initial Cut 2- 9 2. 5 Toner Supply 2-10 2. 6...

  • Page 24: Turning On Kip 700M

    In Europe : 220-240V plus 6% or minus 10%, 50/60Hz and 10A 2. Press “ | ” side the Power Switch on the right side of the printer to turn on the KIP 700m. Power Switch Press “ | “ side.
  • Page 25 Ready Indicator The UI screen may vary depending on your system configuration. (Shown with available options) 4. When Ready Indicator stops flashing, the KIP 700m is ready for operation. NOTE It is impossible to make any prints while Ready Indicator is flashing in orange.

  • Page 26: Turning Off Kip 700M

    ” side. CAUTION The KIP 700m print engine and UI appear to be shut down when you turn off KIP 700m. However, the controller PC embedded inside the KIP 700m is still operating and will shutdown in approximately two minutes after Power Switch operation.

  • Page 27: Replacing Roll Media

    2. 3 Replacing Roll Media NOTE A media mis-feed tends to occur just before out of a roll media. 1. Open Roll Deck Cover (1). Holding both Flanges (2), lift and remove a roll media or an empty roll core (3). 2.
  • Page 28 4. Insert each Flange (2) into both ends of the roll media core to be installed. NOTE (1) Fully insert Flange into the roll media core so that the inside rim of Flange evenly touches the side face of the roll media. Inside Rim Inside Rim Correct: Fully inserted...
  • Page 29 6. Lift the roll media by holding both Flanges. Lower Flanges onto Slide Guides (5) in Roll Deck. NOTE (1) Be careful of the winding direction of the roll media. This direction (2) The outside rim of Flange (2) should fit into the groove on the Slide Guide. Otherwise the roll media may fall in Roll Deck or result in an incorrect media feeding.
  • Page 30 7. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (6). After that, the leading edge will automatically go into the roll media’s wait position. This is called “Auto Media Loading”.

  • Page 31: Initial Cut

    2. 4 Initial Cut Reference (1) Initial Cut is a function to trim the roll media with its leading edge cut off. (2) Initial Cut becomes available while the printer is ready. 1. Open the Manual Feeder Table (1). 2. Press the green button (2) on the right. 3.

  • Page 32: Toner Supply

    2. 5 Toner Supply When the UI screen shows “Adding Toner”, follow the instruction to install a genuine Toner Cartridge. 1. Open the Toner Hatch (1) on the rear top. You do not have to remove the Original Guide. 2. Shake the Toner Bottle (2) several times to loosen the toner.
  • Page 33 3. Put the dent area (3) under the holder (4) to firmly seat the bottom plate of the Toner Bottle (2) to the toner supply position. from front from right from front 2-11 Chapter 2 Basic Operation...
  • Page 34 4. With pressing down the Toner Bottle (2), slide the green lever (5) to the arrow direction until it stops. When it stops, wait 10 seconds as it is. from right NOTE Gently press down the Toner Bottle. Pressing too much makes the lever (5) much heavier. 5.
  • Page 35 6. Close the Toner Hatch (1). 7. Press [OK] button on the UI screen. 2-13 Chapter 2 Basic Operation...

  • Page 36: Cut Sheet Media

    2. 6 Cut Sheet Media There are several size markings on the table of Bypass Feeder which indicate possible feed positions. Place the cut sheet on the table between its concerning size markings then insert it into the Bypass Feeder. When the leading edge touches the feeding roller, the printer automatically carries and sets the paper at the proper position.

  • Page 37: Copying

    When the leading edge touches the original feeding roller, the machine automatically carries and sets the original at the proper position. 3. The KIP 700m will start the copy process. NOTE The scanner unit does not accept originals automatically during Sleep Mode.

  • Page 38: Emergency Stop Of Scan Or Copy

    2. 8 Emergency Stop of Scan or Copy 1. If necessary, press the Emergency Stop Button (1) on the Scanner Unit to immediately stop the original while making a copy or scan. Pressing the button stops the current reading a document immediately. The current printing is stopped as well and is ejected.

  • Page 39: Canceling Sleep Mode

    NOTE (1) It may take time for the machine to get ready. (2) Tapping on the UI screen can cancel the screensaver but the KIP 700m needs to recover temperature on Fuser Unit. It may need another waiting time to start warming up for printing.
  • Page 40 Chapter 3 Error Correction page 3. 1 Mis-feed Error 3- 2 3. 1. 1 J-0103 Roll Deck section 3- 3 3. 1. 2 J-0203 Manual Feeder section 3- 4 3. 1. 3 J-0104 / 0204 Media Feed section 1 3- 5 3.

  • Page 41: Mis-Feed Error

    3. 1 Mis-feed Error If a jam occurs, the UI screen will show its location and the corresponding code “J-****” (if any). Please refer to the following figure to check the jam location. (Mis-feed Codes are described on the later pages.) Fuser Section J-0106 / 0206 Feed Section 2...

  • Page 42: 0103 Roll Deck Section

    3. 1. 1 J-0103 Roll Deck section Remove a mis-feed media in the Roll Deck if the UI screen will show J-0103. J-0103 1. Open the Roll Deck Cover. Rewind the roll onto the media core. 2. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (1).
  • Page 43 Reference If your roll media’s end is not fixed to the core (by glue or a tape), a small portion of the media may remain in the media path of the Roll Deck at a roll empty. The printer does not show any mis-feed error code against the portion.

  • Page 44: 0203 Manual Feeder Section

    3. 1. 2 J-0203 Manu l Feeder section Remove a mis-feed media in the Manual Feeder if the UI screen will show J-0203. J-0203 1. Pull out the mis-feed cut sheet from the Manual Feeder. NOTE The mis-feed cut sheet should be replaced with a new one if its leading edge has a torn or fold.

  • Page 45: J-0104 / 0204 Media Feed Section

    3. 1. 3 J-0104 / 0204 Media Feeder section 1 Remove a mis-feed media in the Media Feeder section 1 if the UI screen will show J-0104 or 0204. J-0104 or J-0204 1. Press down the blue levers (1) on both sides to unlock and open the Upper Unit. 2.
  • Page 46 3. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction. Hold here Hold here Chapter 3 Error Correction...

  • Page 47: J-0105 / 0205 Media Feed Section

    3. 1. 4 J-0105 / 0205 Media Feeder section 2 Remove a mis-feed media in the Media Feeder section 2 if the UI screen will show J-0105 or 0205. J-0105 or J-0205 1. Press down the blue levers (1) on both sides to unlock and open the Upper Unit. 2.
  • Page 48 3. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction. Hold here Hold here Chapter 3 Error Correction...

  • Page 49: 0106 / 0206 Fuser Section

    3. 1. 4 J-0106 / 0206 Fuser section Remove a mis-feed media in the Fuser section if the UI screen will show J-0106 or 0206. J-0106 or J-0206 1. Hold the blue handle (1) and open the Exit Cover (2). 2.
  • Page 50 3. Press down the blue levers (3) on both sides to unlock and open the Upper Unit. 4. Remove the mis-feed media. 5. Close the Exit Door. 3-11 Chapter 3 Error Correction...
  • Page 51 6. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction. Hold here Hold here 3-12 Chapter 3 Error Correction...

  • Page 52: 1300 / 1400 Door Open While Printing

    3. 1. 6 J-1300 / 1400 Door Open while printing If the Exit Cover or the Upper Unit is open while the printer is processing a print job, the UI screen will show J-1300 (Exit Cover) / J-1400 (Upper Unit). For clearing J-1400, please start on the step 3.
  • Page 53 4. Remove the mis-feed media. If the mis-feed media does not exist, go to the next step. 5. Close the Exit Door. 6. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction.
  • Page 54 7. Open the Roll Deck Cover. Rewind the roll onto the media core. 8. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (4). After that, the leading edge will automatically go into the roll media’s wait position.

  • Page 55: Original Jam

    3. 1. 7 Original Jam If an original is mis-fed while scanning, the UI screen shows “Original Jam”. Follow the instruction below to remove the mis-fed original. 1. On both sides, pull the levers (1) under the scanner cover to open the Scanner Unit until it locks. 2.

  • Page 56: Other Operator Call Error

    3. 2 Other Operator Call Error 3. 2. 1 Roll Replacement When the printer is running out of a loaded roll media, the UI Screen will display “Roll Replacement” sign. If there is no suitable roll media required for the current print job, the UI Screen will display “Roll Replacement”...

  • Page 57: Service Call Error

    1. Turn off KIP 700m, and turn it on after an interval of 30 seconds or more. 2. If the same error code appears, turn off KIP 700m, and then unplug the printer from the wall outlet after an interval of two minutes for shutdown.
  • Page 58 Chapter 4 Maintenance page 4. 1 Cleaning 4- 2 4. 1. 1 Scanner Unit 4- 2 4. 1. 2 Touch Screen 4- 4 Chapter 4 Maintenance...
  • Page 59 It is recommended to clean each Scan Glass, Feeding Rollers and Guide Plates as the scan/copy image may become defective if these parts are dirty. 1. Turn off KIP 700m. 2. Press the levers (1) up to unlock the Scanner Unit. Open the Scanner Unit.
  • Page 60 4. Wipe the Feed Rollers (4: gray), Press Rollers (5: white) and the inside surface with a soft dry cloth. 5. Gently press Scanner Unit down and firmly close it. NOTE Press down Scanner Unit on both side to close it. Do not close it by pressing only one side down.
  • Page 61 4. 1. 2 Touch Screen 1. Wipe the Touch Screen with a dry cloth. NOTE Do not use water, alcohol, organic solvent and glass cleaner for the cleaning. Chapter 4 Maintenance...
