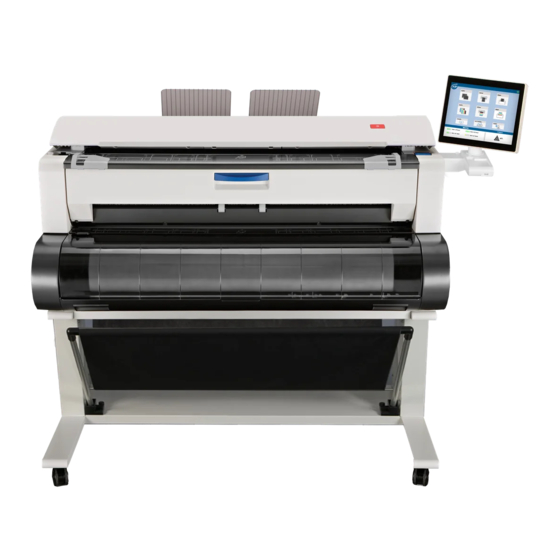

KIP 770K User Manual

Multi-function printer
Hide thumbs Also See for 770K:
Table of Contents

Advertisement

Quick Links

KIP 770K User Manual
Version A.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 770K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KIP 770K

Summary of Contents for KIP 770K

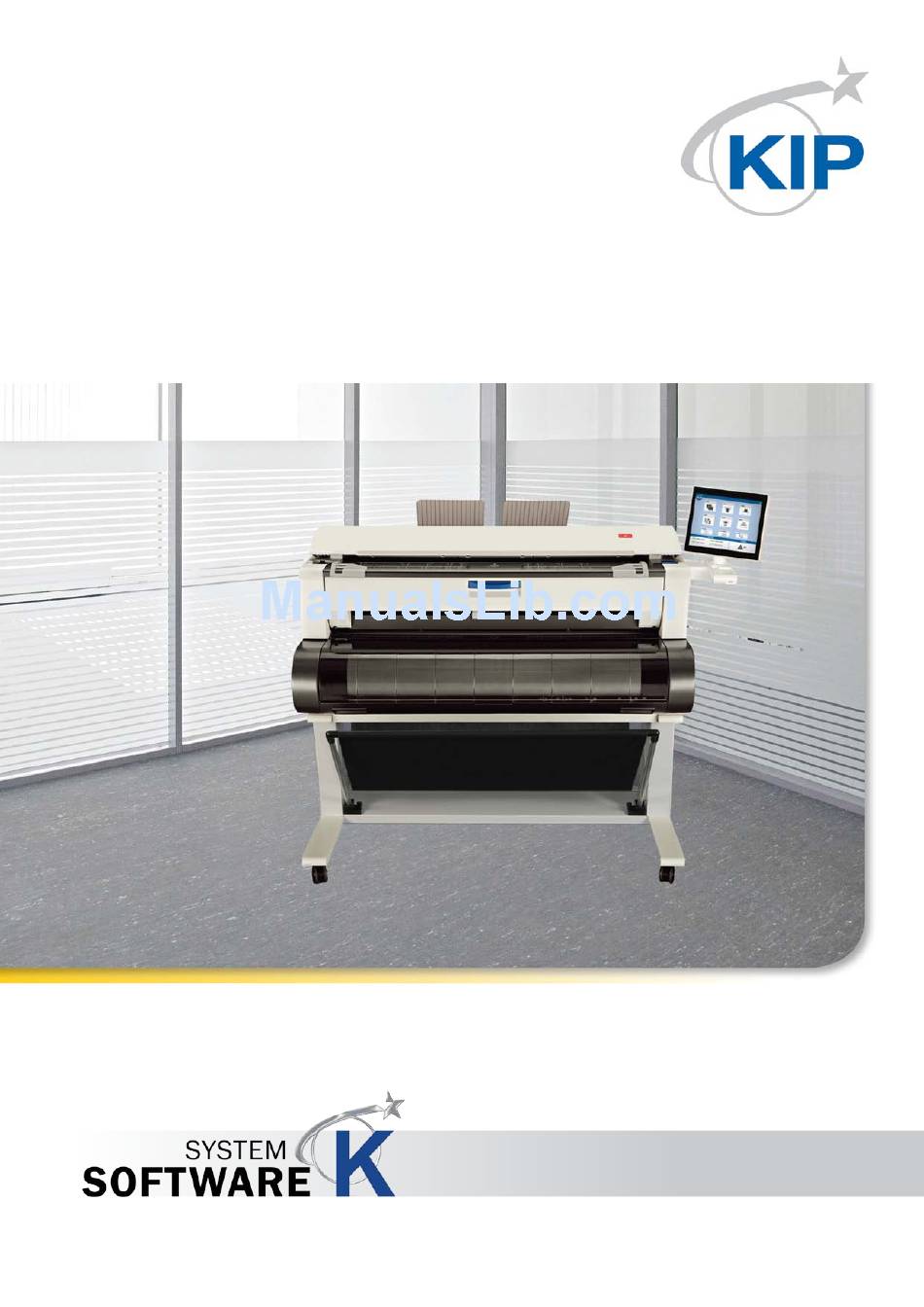

  • Page 1 KIP 770K User Manual Version A.1...
  • Page 2 Thank you for purchasing the Multi-Function Printer KIP 770. This Hardware Operation Guide contains functional and operational explanations for the KIP 770. Please read this Hardware Operation Guide carefully before using the printer. Please keep this Hardware Operation Guide for future reference.

  • Page 3: Safety Warnings

    Safety Warnings The following warnings are very important in order to safely use this product. These notes are important in preventing danger to the operator or operation of the printer. The following symbols are found throughout the USER’S Manual and have the following meaning: WARNING This WARNING mark means that there is a possibility of death or serious injury if you ignore or do not follow the said instruction.
  • Page 4 WARNING Ground the product with a correct ground source or you may be electrically shocked. 1. The Power source should be as follows: In U.S.A. : 120V plus/minus10%, 50/60Hz, 15A or higher In Europe : 220-240V plus6% or minus10%, 50/60Hz, 10A or higher 2.
  • Page 5 CAUTION Do not install the printer in a humidified room or a dusty room. Also, do not install the printer on an unstable floor as injuries may occur. 1. Unplug the printer before you move it. The power cord may be damaged and it may result in a fire or electric shock.
  • Page 6 POWER CORD INSTRUCTION The installation of (or exchange to) a power plug which fits in the wall outlet of the installation location shall be conducted in accordance with the following: WARNING Select a power plug which meets the following criteria; - The plug has a voltage and current rating appropriate for the product’s rating marked on its name plate.

  • Page 7: Table Of Contents

    Chapter 1 Before Use page 1. 1 Installation Requirements 1- 2 1. 2 Originals Prohibited from Duplication 1- 3 1. 3 Features 1- 4 1. 4 Specifications 1- 5 1. 4. 1 General 1. 4. 2 Printer part 1- 6 1.

  • Page 8: Installation Requirements

    Keep ample space around the equipment to ensure comfortable operation. The floor must be level and the strength must be ample to sustain the weight of the equipment. 20cm/8” or larger with no option (Rear) KIP 770 10cm/4” or larger 10cm/4” or larger (Front) 20cm/8”...

  • Page 9: Originals Prohibited From Duplication

    1. 2 Originals Prohibited from Duplication It is not necessarily allowed to copy every kind of original. You may be punished by the law if only you possess the copy of some kind of original. We recommend you to consider enough before you copy such original. [Originals prohibited from copying by the law] 1.

  • Page 10: Features

    (3) Various media source; roll media feeding (1 roll), cut sheet manual feeding, Paper Tray multiple cut sheet feeder (option). (4) A dedicated printer stand offers easy print handling with the print basket. The KIP 770 is also suitable for your office layout as a desktop MFP.

  • Page 11: Specifications

    1. 4 Specifications 1. 4. 1 General Subject Specification Model KIP 770 Configuration Console Power consumption 1500w (US model) (Maximum) 1600w (Europe/Asia model) (Including Scanner & Controller Unit) Power consumption Conformity with International Energy Star Program (Low power mode) Acoustic noise Idling Max.

  • Page 12: Printer Part

    1. 4. 2 Printer part Subject Specification Printing method LED Array Electro photography Photoreceptor Organic Photoconductive Drum Print speed 40mm per second (Inch) 1.7ppm/E 2.9ppm/D Landscape (Metric) 1.6ppm/A0 2.8ppm/A1 Landscape Print head LED Array Resolution of print head 600dpi x 1800dpi Print width Maximum 914mm / 36”...
  • Page 13 Subject Specification Media source 1 Roll Deck (3” / 2” core roll* ) Manual Feeder (single cut sheet) Paper Tray (multiple cut sheet, option) Media (Recommended Roll Media) - US model: Bond : 64g/m to 80g/m , US Bond (20# Bond) Vellum : US Vellum (20# Vellum) Film...

  • Page 14: Scanner Part

    1. 4. 3 Scanner part Subject Specification Scanning method Contact Image Sensor (CIS) (5 pieces of A4 sized CIS) Light source LED (R/G/B) Setting of original Face up Starting point of scan Center Scan width Max: 914.4mm / 36” Min : 210mm Scan length Max:...

  • Page 15: Appearance

    Front view Name Function Main Switch You can turn on/off the KIP 770. Original Guides Feed the original under the Scanner Unit along the Original Guides. User Interface This is a Touch Screen, and many kinds of user operation are available.

  • Page 16: Rear View

    Open here to access toner supply system. Original Guide These trays catch the original ejected from the Scanner Unit. LAN Port Connect the LAN Cable to connect the KIP 770 to the network. (Do not connect a telephone line) USB Port Service Use, 5VDC max. Breaker It is possible to shut off supplying the AC power.

  • Page 17: Specifications For The Scan Original

    1. 6 Specifications for the Scan Original A scan original must satisfy the following specifications. Thickness 0.05mm to 1.6mm Width 210mm to 914.4mm Length 210mm to 6000mm *1. Image quality for an original with 0.25mm or thicker is guaranteed only in a standard size even the scanner physically accepts it. *2.

  • Page 18: "Do Not Scan" Originals

    1. 6. 3 “Do Not Scan” Originals It is impossible to use the following types of originals because they are likely to damage the scanner. Do not scan the following kinds of originals. The original or the scanner may damage. Sticked with paste Paste Torn...
  • Page 19 Not square K I P K I P Metal or fabric material Metal Fabric K I P K I P Rough surface Rough surface (Carbon paper for example) Clipped or stapled Clipped Stapled K I P K I P 1-13 Chapter 1 Before Use...
  • Page 20 The following kinds of originals can be read with using a carrier sheet. However, the image quality and feed reliability are not guaranteed. However, the image quality and feed reliability are not guaranteed. Patched Punched 1-14 Chapter 1 Before Use...

  • Page 21: Specifications For The Printing Paper

    1. 7 Specifications for the Printing Paper 1. 7. 1 Papers not available to use Do not use the following kinds of printing paper. Doing so may damage the print engine. Excessively curled (a diameter of 50 mm or less) Folded Creased Torn...

  • Page 22: Keeping The Paper In The Custody

    Pre-printed Extremely slippery Extremely sticky Extremely thin and soft OHP Film CAUTION Do not use the paper with staple, or do not use such conductive paper as aluminum foil and carbon paper. The above may result in a danger of fire. NOTE (1) Print image may become light if printed on a rough surface of the paper.

  • Page 23: Treatment Against Environmental Condition

    1. 7. 3 Treatment against environmental condition Take a necessary treatment according to the environmental condition as shown below. Humidity(%) Possible problem Necessary treatment “Void of image”, “crease of paper” and 1. Install an humidifier in the room, and other problems occurs when you print humidify the room air.
  • Page 24 Chapter 2 Basic Operation page 2. 1 Turning on KIP 770 2- 2 2. 2 Turning off KIP 770 2- 4 2. 3 Replacing Roll Media 2- 5 2. 4 Initial Cut 2- 9 2. 5 Toner Supply 2-10 2. 6...

  • Page 25: Turning On Kip 770

    In Europe : 220-240V plus 6% or minus 10%, 50/60Hz and 10A 2. Press “ | ” side the Power Switch on the right side of the printer to turn on the KIP 770. Power Switch Press “ | “ side.
  • Page 26 The UI screen may vary depending on your system configuration. (Shown with available options) NOTE It is not possible to print while displaying "Warming Up" in the status indication. 4. "Ready" is displayed in the status indication when KIP 770 is available to print. Chapter 2 Basic Operation...

  • Page 27: Turning Off Kip 770

    ” side. CAUTION The KIP 770 print engine and UI appear to be shut down when you turn off KIP 770. However, the controller PC embedded inside the KIP 770 is still operating and will shutdown in approximately two minutes after Power Switch operation.

  • Page 28: Replacing Roll Media

    2. 3 Replacing Roll Media When the printer is running out of a roll media, the UI Screen will display “Out of Paper” sign. Follow the later procedure (or as noted in the UI’s User Guide) to load a roll media. NOTE A media mis-feed tends to occur just before out of a roll media.
  • Page 29 4. Insert each Flange (2) into both ends of the roll media core to be installed. NOTE (1) Fully insert Flange into the roll media core so that the inside rim of Flange evenly touches the side face of the roll media. Inside Rim Inside Rim Correct: Fully inserted...
  • Page 30 6. Lift the roll media by holding both Flanges. Lower Flanges onto Slide Guides (5) in Roll Deck. NOTE (1) Be careful of the winding direction of the roll media. This direction (2) The outside rim of Flange (2) should fit into the groove on the Slide Guide. Otherwise the roll media may fall in Roll Deck or result in an incorrect media feeding.
  • Page 31 7. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (6). After that, the leading edge will automatically go into the roll media’s wait position. This is called “Auto Media Loading”.

  • Page 32: Initial Cut

    2. 4 Initial Cut Reference (1) Initial Cut is a function to trim the roll media with its leading edge cut off. (2) Initial Cut becomes available while the printer is ready. 1. Open the Manual Feeder Table (1). 2. Press the green button (2) on the right. 3.

  • Page 33: Toner Supply

    2. 5 Toner Supply WARNING There is combustible powder in the toner cartridge. Do not burn up the used toner cartridge. Reference When the toner is empty, the UI Screen will display “Toner Empty” sign. Follow the later procedure (or as noted in the UI’s User Guide) to Supply the Toner with a new one (genuine).
  • Page 34 3. Put the dent area (3) under the holder (4) to firmly seat the bottom plate of the Toner Bottle (2) to the toner supply position. from front from right from front 2-11 Chapter 2 Basic Operation...
  • Page 35 4. With pressing down the Toner Bottle (2), slide the green lever (5) to the arrow direction until it stops. When it stops, wait 10 seconds as it is. from right NOTE Gently press down the Toner Bottle. Pressing too much makes the lever (5) much heavier. 5.
  • Page 36 6. Close the Toner Hatch (1). 2-13 Chapter 2 Basic Operation...

  • Page 37: Cut Sheet Media

    2. 6 Cut Sheet Media There are several size markings on the table of Bypass Feeder which indicate possible feed positions. Place the cut sheet on the table between its concerning size markings then insert it into the Bypass Feeder. When the leading edge touches the feeding roller, the printer automatically carries and sets the paper at the proper position.

  • Page 38: Copying

    2. 7 Copying Please refer to the detailed procedure for making a copy, which is included in "GUIDES" in UI Home screen as well. 1. Press [COPY] in UI Home screen. 2. There are several size markings on Original Table which indicate possible feed positions. Line up Original Guides (1) with the proper markings according to the original width.
  • Page 39 4. The KIP 770 will start the copy process. Reference Pressing START button may be required to start the scan according to the scanner’s controller software. For further details of “Auto Start”, see the software’s document. Start Button NOTE The scanner unit does not accept originals automatically during Sleep Mode.

  • Page 40: Stop Of Scan Or Copy

    2. 8 Stop of Scan or Copy 1. If necessary, press the Scan Abort Button on the Scanner Unit to immediately stop the original while making a copy or scan. Scan Abort Button Pressing the button stops the current reading a document immediately. The current printing is stopped as well and is ejected.

  • Page 41: Canceling Sleep Mode

    NOTE (1) It may take time for the machine to get ready. (2) Tapping on the UI screen can cancel the screensaver but the KIP 770 needs to recover temperature on Fuser Unit. It may need another waiting time to start warming up for printing.

  • Page 42: Dehumidifying Roll Media (Option)

    You may be able to fix the above kinds of problem. The KIP 770 has a built-in Dehumidify Heater (option). To turn on the Dehumidify Heater, press the H side of the Dehumidify Heater Switch on the rear.
  • Page 43 Chapter 3 Error Correction page 3. 1 Mis-feed Error 3- 2 3. 1. 1 Roll Deck Section Jam (Deck 1 Mis-feed) 3- 3 3. 1. 2 Manual Feeder Section Jam (Mid Feed Mis-feed) 3- 5 3. 1. 3 Media Feed Section Jam (Registration Mis-feed) 3- 6 3.

  • Page 44: Mis-Feed Error

    3. 1 Mis-feed Error "xxxx Mis-feed" is displayed in the UI screen when the media is jammed. The jammed location when displaying " xxxx Mis-feed " is shown below. Fuser Section Media Feed Section Manual Feeder Section Media Feed Section Roll Deck Section NOTE (1) Be careful not to get paper cuts on your hand.

  • Page 45: Roll Deck Section Jam (Deck 1 Mis-Feed)

    3. 1. 1 Roll Deck Section Jam (Deck 1 Mis-feed) Roll Deck Section - Deck 1 Mis-feed 1. Open the Roll Deck Cover. Rewind the roll onto the media core. 2. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (1).
  • Page 46 Reference If your roll media’s end is not fixed to the core (by glue or a tape), a small portion of the media may remain in the media path of the Roll Deck at a roll empty. The printer does not show any mis-feed error code against the portion.

  • Page 47: Manual Feeder Section Jam (Mid Feed Mis-Feed)

    3. 1. 2 Manual Feeder Section Jam (Mid Feed Mis-feed) Manual Feeder Section - Mid Feed Mis-feed 1. Pull out the mis-feed cut sheet from the Manual Feeder. NOTE The mis-feed cut sheet should be replaced with a new one if its leading edge has a torn or fold.

  • Page 48: Media Feed Section Jam (Registration Mis-Feed)

    3. 1. 3 Media Feed Section Jam (Registration Mis-feed) Media Feed Section - Registration Mis-feed 1. Press down the blue levers (1) on both sides to unlock and open the Upper Unit. 2. Remove the mis-feed media. Chapter 3 Error Correction...
  • Page 49 3. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction. Hold here Hold here Chapter 3 Error Correction...

  • Page 50: Fuser Section Jam (Separation Mis-Feed)

    3. 1. 4 Fuser Section Jam (Separation Mis-feed) Fuser Section - Separation Mis-feed 1. Hold the blue handle (1) and open the Fuser Cover (2). 2. If it is possible, pull and remove the mis-feed media. If little amount of the leading edge area is coming to the Fuser and you cannot pull it out, or if the trailing edge remains deep to be caught in the printer, do not pull it by force.
  • Page 51 3. Press down the blue levers (3) on both sides to unlock and open the Upper Unit. 4. Remove the mis-feed media. 5. Close the Exit Door. Chapter 3 Error Correction...
  • Page 52 6. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction. Hold here Hold here 3-10 Chapter 3 Error Correction...

  • Page 53: Door Open While Printing

    3. 1. 5 Door Open while printing When opening the Fuser Cover, the Manual Feeder Table or the Upper Unit while printing, the printer stops feeding the media and the media is stuck in the machine. Please remove the stuck media by the followings.
  • Page 54 4. Remove the mis-feed media. If the mis-feed media does not exist, go to the next step. 5. Close the Exit Door. 6. Put your hands on the rear rim of the scanner unit just as you hold the Upper Unit. Push the entire unit down to the arrow direction.
  • Page 55 7. Open the Roll Deck Cover. Rewind the roll onto the media core. 8. Rotate the roll media in the arrow direction and insert the leading edge of the roll media to the media path until it touches the feeding rollers (4). After that, the leading edge will automatically go into the roll media’s wait position.

  • Page 56: Original Jam

    3. 1. 6 Original Jam If an original is mis-fed while scanning, the UI screen shows “Original Jam”. Follow the instruction below to remove the mis-fed original. 1. Lift up both sides (1) of the Scanner Unit 2. Remove a mis-feed original. 3.

  • Page 57: Door Open

    3. 2 Door Open "Door Open" is displayed in the UI screen when the door in each unit is opened. 3. 2. 1 Roll Deck Cover (Deck 1 Open) Close the Roll Deck Cover securely to clear "Deck 1 Open". Roll Deck Cover 3.

  • Page 58: Upper Unit (Front Cover Open)

    3. 2. 3 Upper Unit (Front Cover Open) Holding the rear side of the Scanner Cover, close the Upper Unit securely to clear "Front Cover Open". Upper Unit NOTE There is an interlock switch of the Upper Unit on both sides. In case that "Door Open"...

  • Page 59: Scanner Unit (Scanner Feeder Open)

    3. 2. 5 Scanner Unit (Scanner feeder open) The UI screen shows “Scanner feeder open” if the Scanner Unit is open. (not closed properly) For closing the Scanner Unit, see [3.1.6 Original Jam]. 3-17 Chapter 3 Error Correction...

  • Page 60: Other Operator Call

    3. 3 Other Operator Call 3. 3. 1 Roll Replacement When the printer is running out of a loaded roll media, the UI Screen will display “Out of Paper” sign. If there is no suitable roll media required for the current print job, the UI Screen will display “Out of Paper”...

  • Page 61: Service Call Error

    3. 4 Service Call Error If an error with significant effect on the printer occurs, the printer stops the operation and indicates a related Customer Engineer Call Error Code (or description, and its equivalent internal code) on the UI screen. Call the service staff immediately as these problems can be fixed by a well trained technician only.
  • Page 62 Chapter 4 Maintenance page 4. 1 Scanner Unit 4- 2 4. 1. 1 Scan Glass, Feed Roller, Guide Plate 4- 2 4. 1. 2 Sensor 4. 2 Touch Screen 4- 7 Chapter 4 Maintenance...

  • Page 63: Scanner Unit

    It is recommended to clean each Scan Glass, Feeding Rollers and Guide Plates as the scan/copy image may become defective if these parts are dirty. 1. Turn off KIP 770. 2. Lift up both sides (1) of the Scanner Unit.
  • Page 64 3. Gently wipe the Scan Glass (2) and Feed Rollers (white) (3) with a soft cloth. Equal mixture of water and neutral detergent can be used. NOTE Do not use organic solvent, glass cleaner and anti-static spray for the cleaning. 4.
  • Page 65 6. Wipe the Upper Guide Plate (5) and the Lower Guide Plate (6) with a dry cloth. 7. Gently press Scanner Unit down and firmly close it. NOTE Press down Scanner Unit on both side to close it. Do not close it by pressing only one side down. Chapter 4 Maintenance...

  • Page 66: Sensor

    Perform cleaning or as needed. NOTE For ease of visual check, this document shows the Upper Unit fully open (not actual wide). 1. Turn off KIP 770. 2. Lift up both sides (1) of the Scanner Unit. Chapter 4 Maintenance...
  • Page 67 3. Gently wipe Sensors (2) with a dry cotton bud. NOTE Do not use water, organic solvent, glass cleaner or antistatic spray for cleaning. 4. Gently press Scanner Unit down and firmly close it. NOTE Press down Scanner Unit on both side to close it. Do not close it by pressing only one side down.

  • Page 68: Touch Screen

    4. 2 Touch Screen 1. Wipe the Touch Screen with a dry cloth. NOTE Do not use water, alcohol, organic solvent and glass cleaner for the cleaning. Chapter 4 Maintenance...
  • Page 69 Multi-Function Printer KIP 770 Hardware Operation Guide Version A.1 (Issued on April 13, 2015) Please note that some articles, illustrations and photographs might be partially different from the actual machine because of the modification of machine and so on. No part of this publication may be copied, reproduced or distributed in any form without express...
