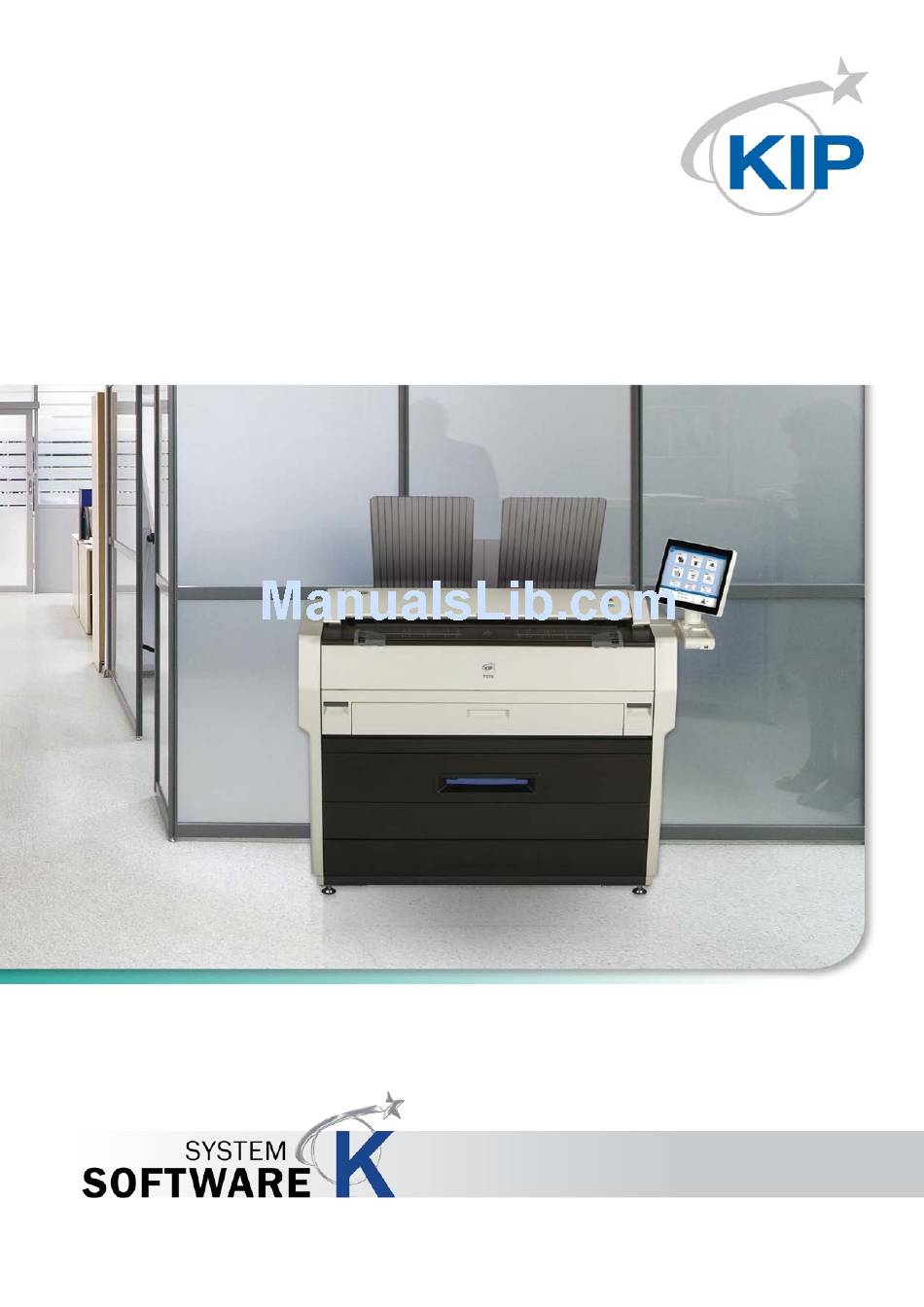

KIP 7170K User Manual
Version A.1

Advertisement

Table of Contents
loading

Related Manuals for KIP 7170K

Summary of Contents for KIP 7170K

  • Page 1 KIP 7170K User Manual Version A.1...
  • Page 2 Thank you for purchasing the Multi-Function Printer KIP 7170. This Hardware Operation Guide contains functional and operational explanations for the KIP 7170. Please read this Hardware Operation Guide carefully before using the printer. Please keep this Hardware Operation Guide for future reference.
  • Page 3 KIP 7170 is an ENERGY STAR qualified multifunction equipment. The International NERGY TAR ® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of equipment with functions that effectively reduce energy consumption.

  • Page 4: Safety Warnings

    Safety Warnings The following warnings are very important in order to safely use this product. These notes are important in preventing danger to the operator or operation of the printer. The following symbols are found throughout the USER’S Manual and have the following meaning: WARNING This WARNING mark means that there is a possibility of death or serious injury if you ignore or do not follow the said instruction.
  • Page 5 WARNING Ground the product with a correct ground source or you may be electrically shocked. 1. The Power source should be as follows: In U.S.A. : 120V plus/minus10%, 50/60Hz, 15A or higher In Europe : 220-240V plus6% or minus10%, 50/60Hz, 10A or higher 2.
  • Page 6 CAUTION Do not install the printer in a humidified room or a dusty room. Also, do not install the printer on an unstable floor as injuries may occur. 1. Unplug the printer before you move it. The power cord may be damaged and it may result in a fire or electric shock.
  • Page 7 POWER CORD INSTRUCTION The installation of (or exchange to) a power plug which fits in the wall outlet of the installation location shall be conducted in accordance with the following: WARNING Select a power plug which meets the following criteria; - The plug has a voltage and current rating appropriate for the product’s rating marked on its name plate.

  • Page 8: Table Of Contents

    Chapter 1 Before Use page 1. 1 Installation Requirements 1- 2 1. 2 Originals Prohibited from Duplication 1- 3 1. 3 Features 1- 4 1. 4 Specifications 1- 5 1. 4. 1 General 1- 5 1. 4. 2 Printer part 1- 6 1.

  • Page 9: Installation Requirements

    The equipment must be leveled and the floor strength must be ample to sustain the weight of the equipment. 30cm/12” or larger (Rear) (w/o option) KIP 7170 * L + R = 35cm/14” or larger (R must be larger than L) (L = 5cm/2” or larger (Front) 80cm/32”...

  • Page 10: Originals Prohibited From Duplication

    1. 2 Originals Prohibited from Duplication It is not necessarily allowed to copy every kind of original. You may be punished by the law if only you possess the copy of some kind of original. We recommend you to consider enough before you copy such original. [Originals prohibited from copying by the law] 1.

  • Page 11: Features

    (9) Contactless IC card reader for more efficient accounting management (option) (10) KIP 7170 adopts 12.1 inch screen for the UI, wider than 8.5 for our old products. The capacitive multi-touch screen offers smooth, various and intuitive user operation that a pressure sensing device lacks.

  • Page 12: Specifications

    1. 4 Specifications 1. 4. 1 General Subject Specification Model KIP 7170 Configuration Console Power consumption 1,440W (US model) (Maximum) 1,680W or less (EU / Asia model) (scanner / controller included) Power consumption Conformity with International Energy Star Program (Low power mode)

  • Page 13: Printer Part

    1. 4. 2 Printer part Subject Specification Printing method LED Array Electro photography Photoreceptor Organic Photoconductive Drum Print speed 80mm per second (Inch) 3.4ppm/E 5.8ppm/D Landscape (Metric) 3.3ppm/A0 5.6ppm/A1 Landscape Print head LED Array Resolution of print head 600dpi x 2400dpi Print width Maximum 914mm / 36”...
  • Page 14 Subject Specification Media (Recommended Media) US model: Bond 64g/m to 80g/m , US Bond (PB-20) Vellum US Vellum (XV-20) Film 4MIL (PF-4DME) EU / Asia model: Plain Paper 64g/m to 80g/m Tracing Paper Gateway Tracing Paper (73g/m Film NSF4mil Storage of consumables (Toner cartridge) Store the cartridge within the temperature range from 0 to 35 degrees Centigrade and within the humidity range from 35...

  • Page 15: Scanner Part

    1. 4. 3 Scanner part Subject Specification Scanning method Contact Image Sensor (CIS) (5 pieces of A4 sized CIS) Light source LED (R/G/B) Scanning speed Monochrome : 65mm/s (600 dpi, normal quality) Grayscale : 65mm/s (max) Color : 22mm/s NOTE : The actual speed may vary by the scan software. Setting of original Face up Starting point of scan...

  • Page 16: Appearance

    1. 5. 1 Front view Name Function Main Switch You can turn on/off the KIP 7170. Original Guides Feed the original under the Scanner Unit along the Original Guides. User Interface This is a Touch Screen, and many kinds of user operation are available.

  • Page 17: Rear View

    For an optional device Service Use. 5VDC max. LAN Port Connect the LAN Cable to connect the KIP 7170 to the network. (Do not connect a telephone line) Dehumidify Heater Switch Turn on the Dehumidify Heater with this switch when you (DEHUMIDIFY KIT is an would like to dry the paper in the humid season.

  • Page 18: Specifications For Scan Original

    1. 6 Specifications for Scan Original A scan original must satisfy the following specifications. Thickness 0.05mm to 1.60mm Width 210mm to 914.4mm Length 210mm to 6,000mm NOTE : 1. Suggest to change “It does not guarantee both scan/copy image quality and original feeding reliability in case the original is non- standard size one of which thickness is 0.25mm or thicker.

  • Page 19: "Do Not Scan" Originals

    1. 6. 3 “Do Not Scan” Originals It is impossible to use the following types of originals because they are likely to damage the scanner. Do not scan the following kinds of original, because you may damage the original or scanner itself! Sticked with paste Paste Torn...
  • Page 20 Not square Wet image Made of metal or fabric Metal Fabric Rough surface (Carbon paper for example) Rough surface Clipped or stapled Clipped Stapled 1-13 Chapter 1 Before Use...
  • Page 21 The following kinds of originals can be read with using a carrier sheet. However, the image quality and feed reliability are not guaranteed. Patched Punched 1-14 Chapter 1 Before Use...

  • Page 22: Specifications For The Printing Media

    1. 7 Specifications for the Printing Media 1. 7. 1 Papers not available to use Do not use the following kinds of printing paper. Doing so may damage the print engine. Excessively curled (a diameter of 50 mm or less) Folded Creased Torn...

  • Page 23: Keeping The Paper In The Custody

    Pre-printed Extremely slippery Extremely sticky Extremely thin and soft OHP Film CAUTION Do not use the paper with staple, or do not use such conductive paper as aluminium foil and carbon paper. The above may result in a danger of fire NOTE (1) Print image may become light if printed on a rough surface of the paper.

  • Page 24: Treatment Against Environmental Condition

    1. 7. 3 Treatment against environmental condition Take a necessary treatment according to the environmental condition as shown below. Humidity(%) Possible problem Necessary treatment “Void of image”, “crease of paper” and 1. Install the humidifier in the room, and other problems occurs when you print humidify the room air.
  • Page 25 Chapter 2 Basic Operation page 2. 1 Turning on KIP 7170 2- 2 2. 2 Turning off KIP 7170 2- 4 2. 3 Replacing Roll Media 2- 5 2. 4 Replacing Toner Cartridge 2-11 2. 5 Cut Sheet Media 2-16 2.

  • Page 26: Turning On Kip 7170

    In Europe : 220-240V plus 6% or minus 10%, 50/60Hz and 10A 2. Press “ | ” side the Power Switch on the right side of the printer to turn on the KIP 7170. Power Switch Press “ | “ side.
  • Page 27 The UI screen may vary depending on your system configuration. (Shown with available options) NOTE It is not possible to print while displaying "Warming Up" in the status indication. 4. "Ready" is displayed in the status indication when KIP 7170 is available to print. Chapter 2 Basic Operation...

  • Page 28: Turning Off Kip 7170

    ” side. CAUTION The KIP 7170 print engine and UI appear to be shut down when you turn off KIP 7170. However, the controller PC embedded inside the KIP 7170 is still operating and will shutdown in approximately two minutes after Power Switch operation.

  • Page 29: Replacing Roll Media

    Follow the later procedure (or as noted in the UI’s User Guide) to load a roll media. Please refer to your KIP IPS Touch Screen Operator’s Guide for the UI screen. (2) This section describes how to install a roll media to Roll Deck 1.
  • Page 30 3. Raise the green lever (4) on Flange (2). Remove both Flanges (4) from the roll core (3). 4. Move a right Slide Guide (5) to match your roll media’s width. The right and left Side Guides will automatically move together. 5: for Roll 2 Size markings Chapter 2 Basic Operation...
  • Page 31 5. Insert each Flange (2) into both ends of the roll media core to be installed. NOTE (1) Fully insert Flange into the roll media core so that the inside rim of Flange evenly touches the side face of the roll media. Inside Rim Inside Rim Correct: Fully inserted...
  • Page 32 7. Lift the roll media by holding both Flanges. Lower Flanges onto Slide Guides (5) in Roll Deck. NOTE (1) Be careful of the winding direction of the roll media. Rear: Deck back Rear: Deck back Front: to media path Front: to media path Correct: Edge comes from bottom Wrong: Edge comes from top...
  • Page 33 8. Insert the leading edge of the roll media under Guide Plate (8) until it touches the feeding roller. Rotate Feed Knob (9) clockwise so that the feeding rollers catch the leading edge. NOTE Use the rear Feed Knob (10) for Roll Deck 2. 9.
  • Page 34 10. Slide the green Cutter Knob (12) fully from one side to the other to make a new straight edge. Remove the cut portion. NOTE Completely slide Cutter Knob (12) until it stops at either end. Not doing so may cause a paper jam. Correct Wrong 11.

  • Page 35: Replacing Toner Cartridge

    (genuine). NOTE (1) The KIP 7170 will indicate Toner Empty sign if an incorrect toner cartridge or no toner cartridge is installed to the printer. (2) At the machine’s installation, some amount of initial toner powders will be supplied to the machine.
  • Page 36 2. Slide the green Lever (2) to the right to unlock the Toner Cartridge. (Lever (2) is held automatically.) NOTE Be sure to unlock the Toner Cartridge by releasing the green Lever (2). Correct: disengaged Wrong: not disengaged (The green Lever (2) is shifted to the right.) 2-12 Chapter 2 Basic Operation...
  • Page 37 3. Pressing down the Cartridge Lock Lever (3), turn the body (4) of cartridge to the arrow direction until it stops. (You can close the toner supply hole of the cartridge firmly by this) NOTE The toner may drop from the toner supply hole, and it may scattered into the machine or on the floor if you remove the Toner Cartridge without closing the toner supply hole (5).
  • Page 38 5. Shake the new Toner Cartridge left and right 5 times or more to make the toner smooth. After shaking, tilt the Toner Cartridge to the cap side. Cap Side 6. Keep pressing down the Cartridge Lock Lever (3). Direct the toner supply hole to the floor, fit the pin (6) on the left side of the cartridge to the groove (7) on the machine side.
  • Page 39 7. Turn the body (4) of the cartridge in two or more revolution to the arrow direction to open the toner supply hole. Confirm that the projection (8) if fitted into the notch (9). NOTE It is not necessary to lock the cartridge with the Lever (2).

  • Page 40: Cut Sheet Media

    2. 5 Cut Sheet Media 1. Open the Bypass Feeder (1). Bypass Feeder 2. There are several size markings on the table of Bypass Feeder which indicate possible feed positions. Place the cut sheet paper on the table between its concerning size markings then insert it into the Bypass Feeder.

  • Page 41: Copying

    2. 6 Copying Please refer to the detailed procedure for making a copy, which is included in "GUIDES" in UI Home screen as well. 1. Press [COPY] in UI Home screen. 2. There are several size markings on Original Table which indicate possible feed positions.
  • Page 42 4. The KIP 7170 will start the copy process. Reference Pressing START button may be required to start the scan according to the scanner’s controller software. Start Button For further details of “Auto Start”, see the software’s document. NOTE The scanner unit does not accept originals automatically during Sleep Mode. Tap on the UI screen and then insert an original.
  • Page 43 The KIP 7170 has 2 print delivery system, the print tray (front, standard) / rear stacking equipment (back, option). NOTE For the front stacking, gently lift up the prints on the print tray to the arrow direction to avoid rubbing the print surface. A large number of prints should be removed in several sheets.

  • Page 44: Stop Of Scan Or Copy

    2. 7 Stop of Scan or Copy 1. If necessary, press the Scan Abort Button on the Scanner Unit to immediately stop the original while making a copy or scan. The LED Indicator flashes red. flashing Scan Abort Button Pressing the button stops the current reading a document immediately. The current printing is stopped as well and is ejected.

  • Page 45: Canceling Sleep Mode

    NOTE (1) It may take time for the machine to get ready. (2) Tapping on the UI screen can cancel the screensaver but the KIP 7170 needs to recover temperature on Fuser Unit. It may need another waiting time to start warming up for printing.

  • Page 46: Dehumidifying Roll Media

    Loss of image If the media is humidified; If the KIP 7170 is installed in such a condition, it is recommended to use the optional embedded “Dehumidify Heater”. Turn on the Dehumidify Heater if the room air has too much humidity (75% or higher) to prevent the above kinds of print defect.
  • Page 47 Chapter 3 Error Correction page 3. 1 Paper Jam 3- 2 3. 1. 1 Roll Deck Section Jam (Deck 1, 2 Mis-feed) 3- 3 3. 1. 2 Manual Feeder Section Jam (Registration Mis-feed) 3- 6 3. 1. 3 Media Feed Section Jam (Registration Mis-feed, Separation Mis-feed) 3- 8 3.

  • Page 48: Paper Jam

    3. 1 Paper Jam "xxxx Mis-feed” is displayed in the UI screen when the media is jammed. The jammed location when displaying " xxxx Mis-feed " is shown below. Media Feed Section Fuser Section Manual Feeder Section Roll Deck Section Roll Deck Section NOTE (1) Be careful not to get paper cuts on your hand.

  • Page 49: Roll Deck Section Jam (Deck 1, 2 Mis-Feed)

    3. 1. 1 Roll Deck Section Jam (Deck 1, 2 Mis-feed) Roll Deck Section - Deck 1 Mis-feed Roll Deck Section - Deck 2 Mis-feed 1. Pull the blue lever (1) to unlock the Roll Deck. Draw out the Roll Deck. 2.
  • Page 50 3. Insert the leading edge of the roll media under Guide Plate (2) until it touches the feeding roller. Rotate Feed Knob (3) clockwise so that the feeding rollers catch the leading edge. NOTE (1) The leading edge should be trimmed with a cutter in case of an extreme crease.
  • Page 51 5. Slide the green Cutter Knob (6) fully from one side to the other to make a new straight edge. Remove the cut portion. NOTE Completely slide Cutter Knob (6) until it stops at either end. Not doing so may cause a paper jam. 6.

  • Page 52: Manual Feeder Section Jam (Registration Mis-Feed)

    3. 1. 2 Manual Feeder Section Jam (Registration Mis-feed) Manual Feeder Section - Registration Mis-feed 1. Remove all Print Trays (1). 2. Pull up the Engine Unit Open Levers (2) to open the Engine Unit. Chapter 3 Error Correction...
  • Page 53 3. Remove the mis-fed paper pulling frontward. mis-fed media 4. Gently close the Engine Unit. NOTE (1) Be sure to close the Engine Unit firmly until it locks at the correct position. (2) The mis-feed cut sheet should be replaced with a new one if its leading edge has a torn or fold.

  • Page 54: Media Feed Section Jam (Registration Mis-Feed, Separation Mis-Feed)

    3. 1. 3 Media Feed Section Jam (Registration Mis-feed, Separation Mis-feed) Media Feed Section Media Feed Section - Registration Mis-feed - Separation Mis-feed 1. Remove all Print Trays (1). 2. Pull up the Engine Unit Open Levers (2) to open the Engine Unit. Chapter 3 Error Correction...
  • Page 55 3. Remove the mis-fed paper. mis-fed media 4. Gently close the Engine Unit. NOTE Be sure to close the Engine Unit firmly until it locks at the correct position. 5. Replace Print Trays in the original position. Chapter 3 Error Correction...

  • Page 56: Fuser Section Jam (Exit Back Mis-Feed)

    3. 1. 4 Fuser Section Jam (Exit Back Mis-feed) Fuser Section - Exit Back Mis-feed 1. Remove all Print Trays (1). 2. Pull up the Engine Unit Open Levers (2) to open the Engine Unit. 3-10 Chapter 3 Error Correction...
  • Page 57 3. Remove the mis-fed paper. If the mis-fed paper cannot be seen or removed, leave the media and go to the next step. If the paper (including any torn part) can be removed, go to step 8. mis-fed media 4. Hold the gray handles and open the Exit Cover (3). 5.
  • Page 58 6. Hold the gray areas (4) and release the Fuser Door (5). Pull and remove the jammed print to the rear. jammed print WARNING There are extremely hot parts inside the Fuser Door. Do not touch any parts in the Heater Unit, or you will be burnt. Also be careful not to get burnt when you touch the printing paper as it may be very hot.
  • Page 59 8. Gently close the Engine Unit. NOTE Be sure to close the Engine Unit firmly until it locks at the correct position. 9. Replace Print Trays in the original position. 3-13 Chapter 3 Error Correction...

  • Page 60: Stack Jam

    3. 1. 5 Stack Jam 1. Remove print(s) on Print Trays. 2. Remove all Print Trays (1). 3. Pull up the Engine Unit Open Levers (2) to open the Engine Unit. 4. Pull and remove the jammed print to the top. If the print cannot be removed, see [3.1.4 Fuser Jam] for the later procedure of clearing the jammed print.
  • Page 61 5. Gently close the Engine Unit. NOTE Be sure to close the Engine Unit firmly until it locks at the correct position. 6. Replace Print Trays in the original position. 3-15 Chapter 3 Error Correction...

  • Page 62: Original Jam

    3. 1. 6 Original Jam The scanner may stop feeding the original in the scanner if the original skews. flashing Pressing Scan Abort Button during scanning also stops the original in the scanner. Scan Abort Button In both cases, LED Indicator flashes red. 1.

  • Page 63: Accessory Jam

    3. 1. 7 Accessory Jam The printing paper is mis-fed in the optional device such as Auto Stacker or Folder. Remove the mis-fed paper making reference to the User’s Manual of concerning device. 3-17 Chapter 3 Error Correction...

  • Page 64: Door Open

    3. 2 Door Open "xxxx Open" is displayed in the UI screen when the door in each unit is opened. 3. 2. 1 Roll Deck (Deck 1 Open) Close the Roll Deck securely to clear "Deck 1 Open". Roll Deck 3.

  • Page 65: Paper Exit Door (Paper Exit Door Open)

    3. 2. 3 Paper Exit Door (Paper Exit Door Open) Close the Paper Exit Door securely to clear "Paper Exit Door Open". Paper Exit Door 3. 2. 4 Scanner Unit (Scanner feeder open) The UI screen shows “Scanner feeder open” if the Scanner Unit is open. (not closed properly) For closing the Scanner Unit, see [3.1.6 Original Jam].

  • Page 66: Other Operator Call Error

    3. 3 Other Operator Call Error 3. 3. 1 Roll Replacement When the printer is running out of an loaded roll media, the UI Screen will display “Out of Paper” sign. If there is no suitable roll media required for the current print job, the UI Screen will display “Out of Paper”...

  • Page 67: Service Call Error

    3. 4 Service Call Errors If an error with significant effect on the printer occurs, the printer stops the operation and indicates a related Customer Engineer Call Error Code (or description, and its equivalent internal code) on the UI screen. Call the service staff immediately as these problems can be fixed by a well trained technician only.
  • Page 68 Chapter 4 Maintenance page 4. 1 Scanner Unit 4- 2 4. 1. 1 Scan Glass, Feed Roller, Guide Plate 4- 2 4. 1. 2 Sensor 4- 5 4. 2 Touch Screen 4- 7 Chapter 4 Maintenance...

  • Page 69: Scanner Unit

    NOTE For ease of visual check, this document shows the Upper Unit fully open (not actual wide). 1. Turn off KIP 7170. 2. Lift up both sides (1) of the Scanner Unit. Chapter 4 Maintenance...
  • Page 70 3. Gently wipe the Scan Glass (2) and Feed Rollers (white) (3) with a soft cloth. Equal mixture of water and neutral detergent can be used. NOTE Do not use organic solvent, glass cleaner and anti-static spray for the cleaning. 4.
  • Page 71 6. Wipe the Upper Guide Plate (5) and the Lower Guide Plate (6) with a dry cloth. 7. Gently press Scanner Unit down and firmly close it. NOTE Press down Scanner Unit on both side to close it. Do not close it by pressing only one side down. Chapter 4 Maintenance...

  • Page 72: Sensor

    Perform cleaning or as needed. NOTE For ease of visual check, this document shows the Upper Unit fully open (not actual wide). 1. Turn off KIP 7170. 2. Lift up both sides (1) of the Scanner Unit. Chapter 4 Maintenance...
  • Page 73 3. Gently wipe Sensors (2) with a dry cotton bud. NOTE Do not use water, organic solvent, glass cleaner or antistatic spray for cleaning. 4. Gently press Scanner Unit down and firmly close it. NOTE Press down Scanner Unit on both side to close it. Do not close it by pressing only one side down.

  • Page 74: Touch Screen

    4. 2 Touch Screen 1. Wipe the Touch Screen with a dry cloth. NOTE Do not use water, alcohol, organic solvent and glass cleaner for the cleaning. Chapter 4 Maintenance...
  • Page 75 Multi-Function Printer KIP 7170 Hardware Operation Guide Version A.1 (Issued on April 20, 2015) Please note that some articles, illustrations and photographs might be partially different from the actual machine because of the modification of machine and so on. No part of this publication may be copied, reproduced or distributed in any form without express...
