damage. It also guarantees that all connections are equally tight each time.
2. Prevent the rotation of anything other than the connector nut that you are tightening. It may be possible
to do this by hand if one of the connectors is fixed (as on a test port). In all situations, however, it is
recommended that you use an open-end wrench to keep the body of the device from turning. Refer to
Chapter 6 for part number and ordering information.
3. Position both wrenches within 90 degrees of each other before applying force. See
Wrenches opposing each other (greater than 90 degrees apart) will cause a lifting action which can
misalign and stress the connections of the devices involved. This is especially true when several
devices are connected together.

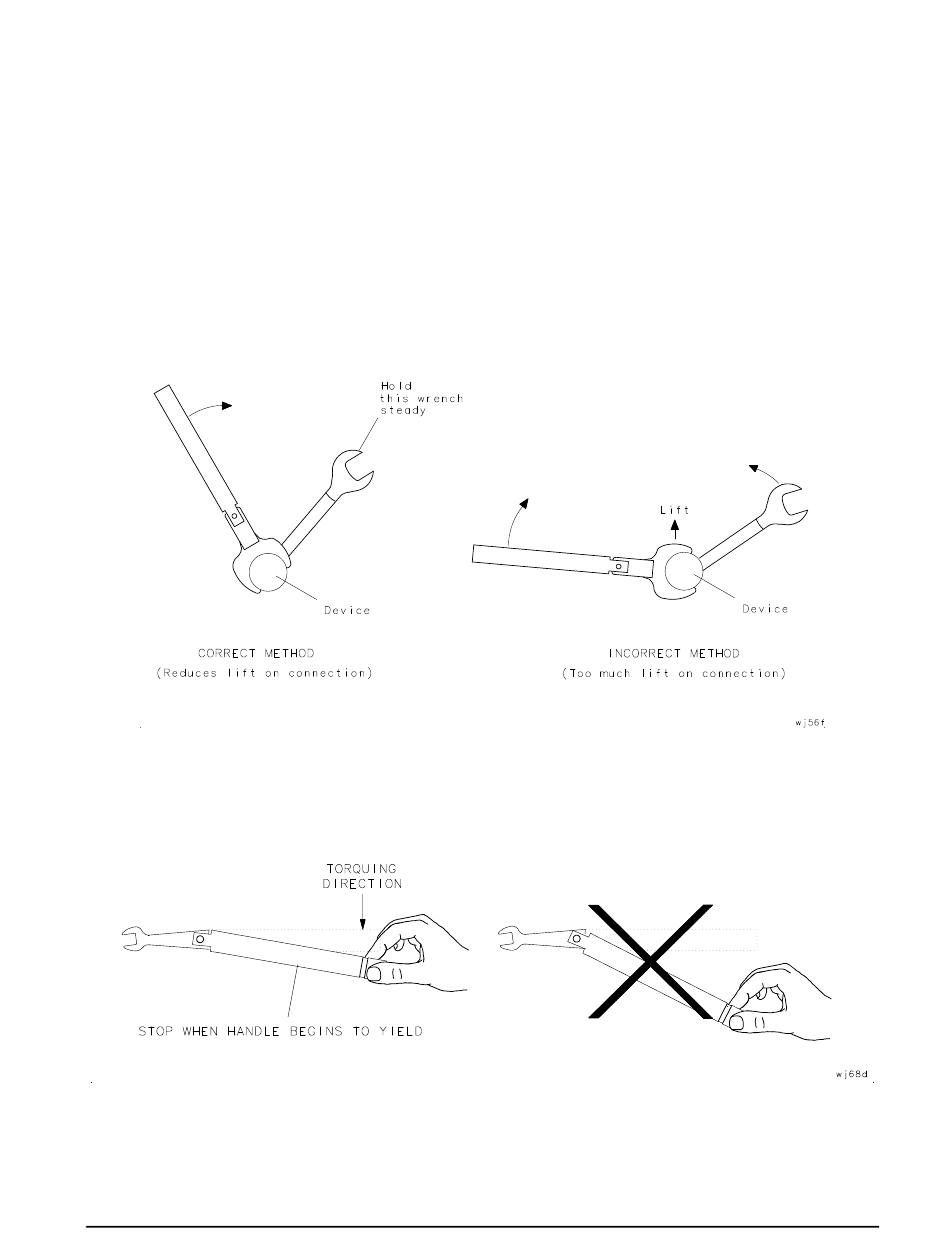

Figure 3-5 Wrench Positions
4. Hold the torque wrench lightly, at the end of the handle only (beyond the groove). See
Figure 3-6 Using the Torque Wrench
5. Apply downward force perpendicular to the wrench handle. See
connection through the wrench.
85032B/E
Use, Maintenance, and Care of the Devices
Figure
Figure
Figure 3-6. This applies torque to the
Connections
3-5.
3-6.
3-13
