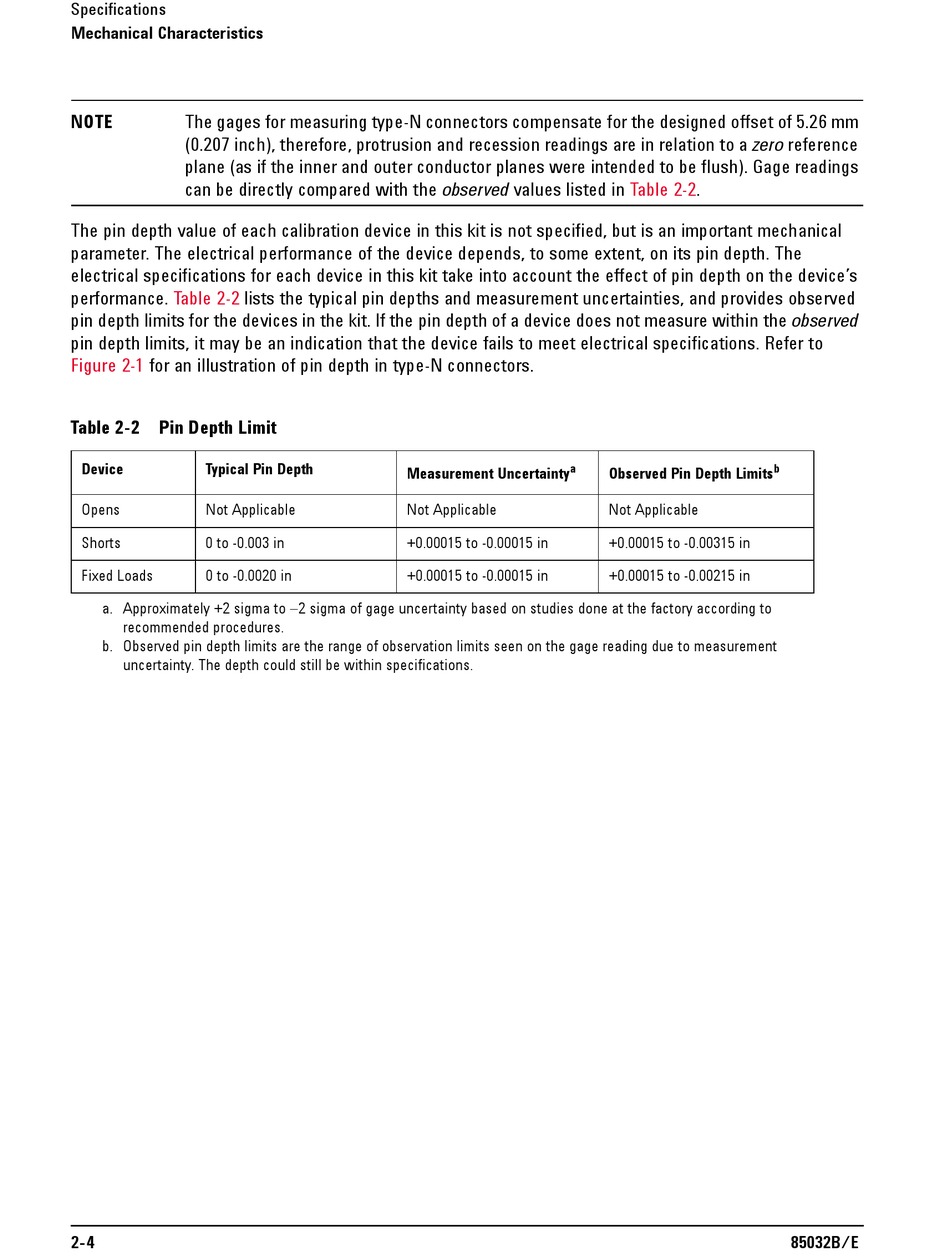

Specifications
Mechanical Characteristics
NOTE The gages for measuring type-N connectors compensate for the designed offset of 5.26 mm
(0.207 inch), therefore, protrusion and recession readings are in relation to a zero reference
plane (as if the inner and outer conductor planes were intended to be flush). Gage readings
can be directly compared with the observed values listed in
The pin depth value of each calibration device in this kit is not specified, but is an important mechanical
parameter. The electrical performance of the device depends, to some extent, on its pin depth. The
electrical specifications for each device in this kit take into account the effect of pin depth on the device's
performance. Table 2-2 lists the typical pin depths and measurement uncertainties, and provides observed
pin depth limits for the devices in the kit. If the pin depth of a device does not measure within the observed
pin depth limits, it may be an indication that the device fails to meet electrical specifications. Refer to
Figure 2-1 for an illustration of pin depth in type-N connectors.
Table 2-2 Pin Depth Limit
Device Typical Pin Depth
Opens Not Applicable
Shorts 0 to -0.003 in
Fixed Loads 0 to -0.0020 in
a. Approximately +2 sigma to 2 sigma of gage uncertainty based on studies done at the factory according to
recommended procedures.
b. Observed pin depth limits are the range of observation limits seen on the gage reading due to measurement
uncertainty. The depth could still be within specifications.
2- 4
a
Measurement Uncertainty
Not Applicable
+0.00015 to -0.00015 in
+0.00015 to -0.00015 in
Table 2-2.
b
Observed Pin Depth Limits
Not Applicable
+0.00015 to -0.00315 in
+0.00015 to -0.00215 in
