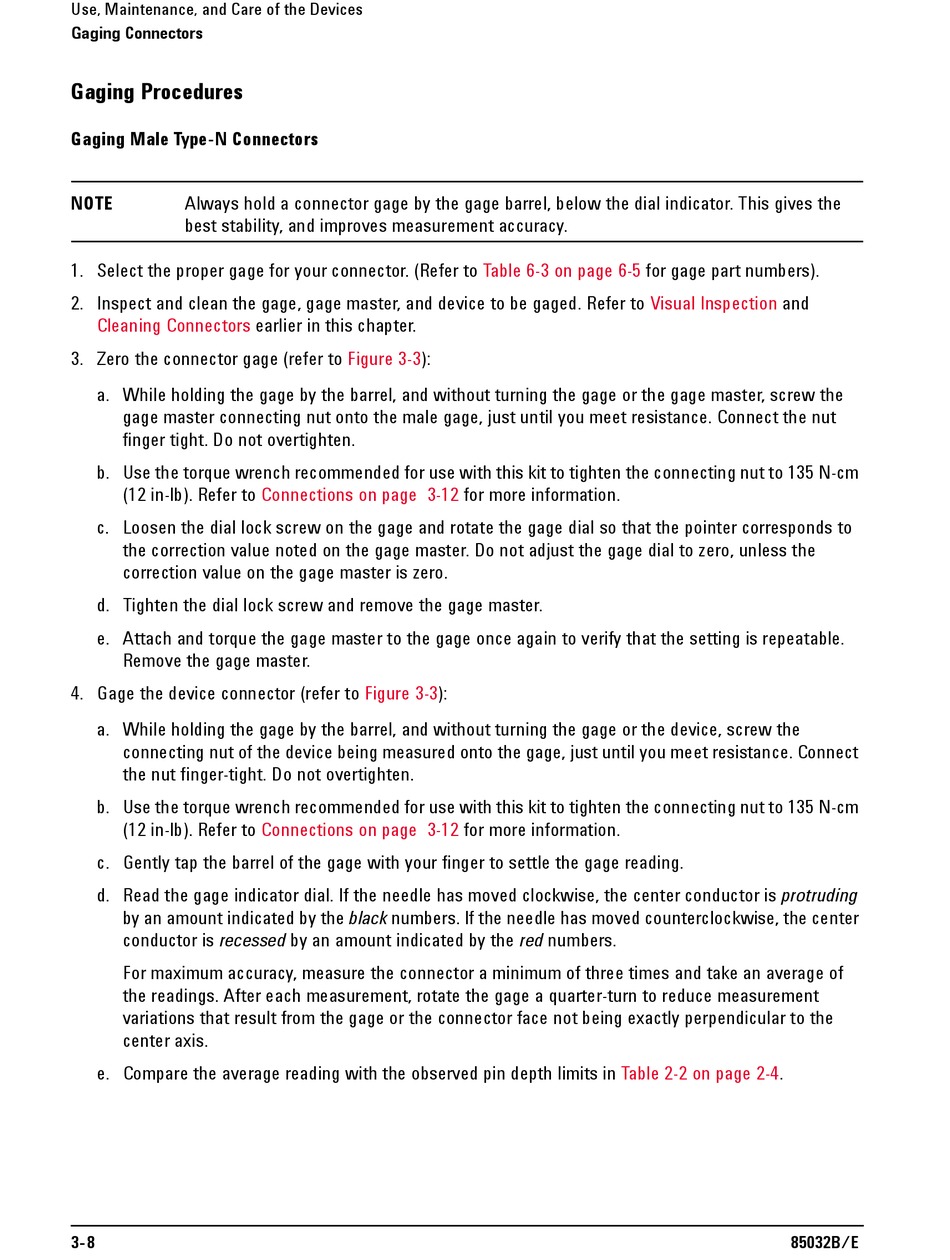

Use, Maintenance, and Care of the Devices
Gaging Connectors

Gaging Procedures

Gaging Male Type-N Connectors

NOTE Always hold a connector gage by the gage barrel, below the dial indicator. This gives the
best stability, and improves measurement accuracy.
1. Select the proper gage for your connector. (Refer to
2. Inspect and clean the gage, gage master, and device to be gaged. Refer to
Cleaning Connectors
3. Zero the connector gage (refer to
a. While holding the gage by the barrel, and without turning the gage or the gage master, screw the
gage master connecting nut onto the male gage, just until you meet resistance. Connect the nut
finger tight. Do not overtighten.
b. Use the torque wrench recommended for use with this kit to tighten the connecting nut to 135 N-cm
(12 in-lb). Refer to
c. Loosen the dial lock screw on the gage and rotate the gage dial so that the pointer corresponds to
the correction value noted on the gage master. Do not adjust the gage dial to zero, unless the
correction value on the gage master is zero.
d. Tighten the dial lock screw and remove the gage master.
e. Attach and torque the gage master to the gage once again to verify that the setting is repeatable.
Remove the gage master.
4. Gage the device connector (refer to
a. While holding the gage by the barrel, and without turning the gage or the device, screw the
connecting nut of the device being measured onto the gage, just until you meet resistance. Connect
the nut finger-tight. Do not overtighten.
b. Use the torque wrench recommended for use with this kit to tighten the connecting nut to 135 N-cm
(12 in-lb). Refer to
c. Gently tap the barrel of the gage with your finger to settle the gage reading.
d. Read the gage indicator dial. If the needle has moved clockwise, the center conductor is protruding
by an amount indicated by the black
conductor is recessed by an amount indicated by the red numbers.
For maximum accuracy, measure the connector a minimum of three times and take an average of
the readings. After each measurement, rotate the gage a quarter-turn to reduce measurement
variations that result from the gage or the connector face not being exactly perpendicular to the
center axis.
e. Compare the average reading with the observed pin depth limits in
3- 8
earlier in this chapter.
Figure 3-3):
Connections on page 3-12
Figure 3-3):
Connections on page 3-12
numbers. If the needle has moved counterclockwise, the center

Table 6-3 on page 6-5
for more information.
for more information.
Table 2-2 on page
for gage part numbers).
Visual Inspection and
2-4.
