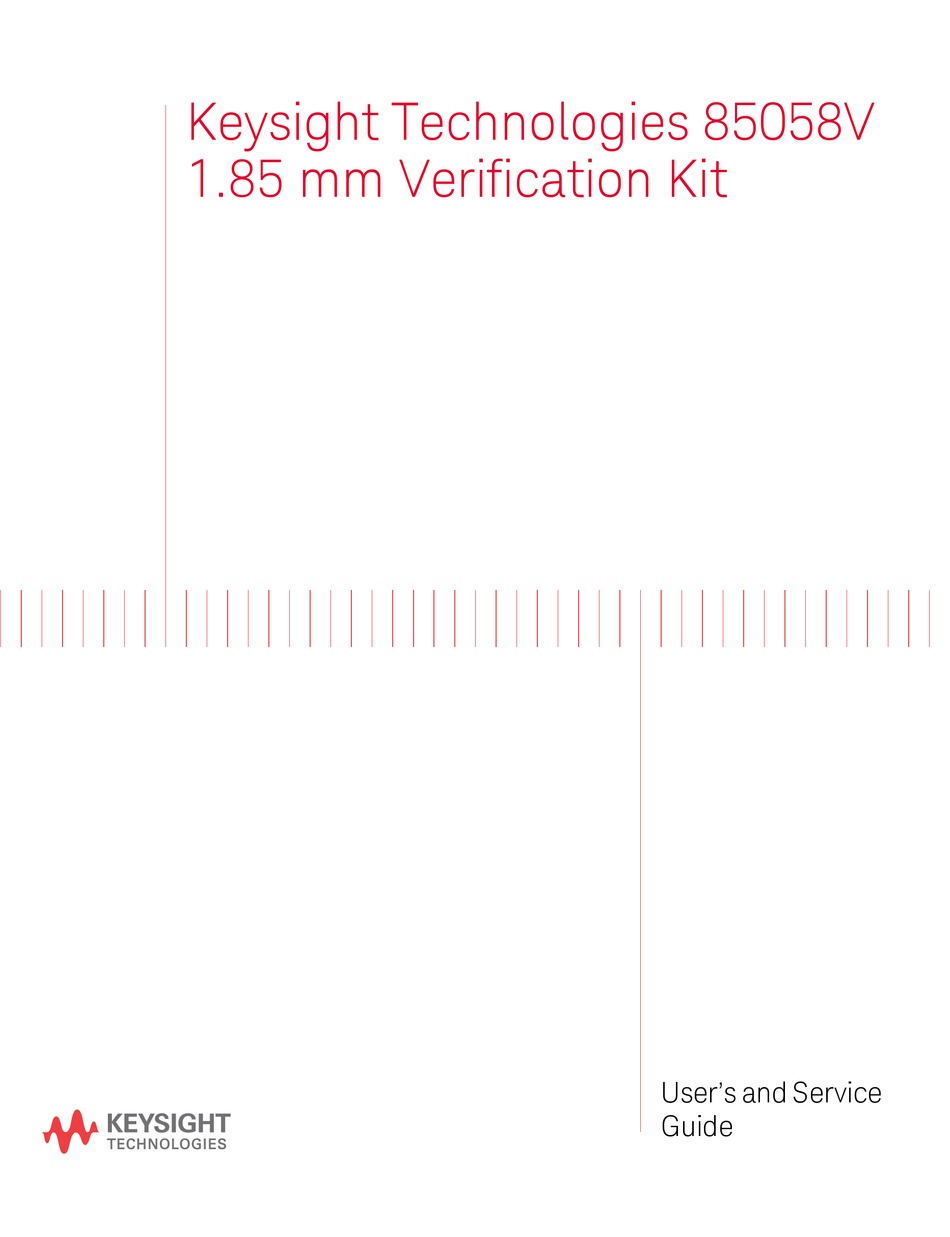

Keysight Technologies 85058V
1.85 mm Verification Kit
User's and Service
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 85058V and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies 85058V

Summary of Contents for Keysight Technologies 85058V

  • Page 1 Keysight Technologies 85058V 1.85 mm Verification Kit  User’s and Service Guide...
  • Page 3 85058V...
  • Page 4 CONTROL. Assistance Product maintenance agreements and other customer assistance agreements are available for Keysight products. For any assistance, contact Keysight Technologies. Refer to page 5-6. Printing Copies of This Document To print copies of this document, download the PDF file from the Keysight Web site: •...

  • Page 5: Table Of Contents

    Contents General Information Verification Kit Overview ............. . . 1-2 Kit Contents .
  • Page 6 Returning a Kit or Device to Keysight Technologies ....... . .

  • Page 7: General Information

    General Information...

  • Page 8: Verification Kit Overview

    5-6. Calibration Definitions The 85058V verification kit is intended to be used with the 85058B/E 1.85 mm calibration kits. Prior to performing a calibration with your PNA, the calibration kit must be selected and the calibration definitions for the devices in the kit installed in the PNA. Refer to your PNA Help system for instructions on selecting the calibration kit and performing a calibration.

  • Page 9: Equipment Required But Not Supplied

    5-6. Keysight will arrange for repair or replacement of incomplete or damaged shipments without waiting for a settlement from the transportation company. Refer to “Returning a Kit or Device to Keysight Technologies” on page 5-5 for instructions. 85058V...

  • Page 10: Recording The Device Serial Numbers

    1-1. Recording the serial numbers will prevent confusing the devices in this kit with similar devices from other kits. Figure 1-1 Serial Number Engraved on the Nut of a Beaded Line Table 1-1 Serial Number Record for the 85058V Device Serial Number Verification kit...

  • Page 11: Clarifying The Terminology Of A Connector Interface

    Improper connections, resulting from pin depth values being out of specification (see Table 2-2 on page 2-4), or from bad connection techniques, can also damage these devices. 85058V...
  • Page 12 General Information Clarifying the Terminology of a Connector Interface 1- 6 85058V...

  • Page 13: Specifications

    Specifications...

  • Page 14: Environmental Requirements

    Due to the thermal properties of the devices, electrical characteristics will change with temperature. Therefore, the operating temperature is a critical factor in their performance, and must be stable before use. IMPORTANT Avoid unnecessary handling of the devices during use because your fingers are a heat source. 2- 2 85058V...

  • Page 15: Mechanical Characteristics

    Mechanical characteristics such as center conductor protrusion and pin depth are not warranted performance specifications. They are, however, important supplemental characteristics related to electrical performance. Keysight Technologies verifies the mechanical characteristics of the devices in this kit with special gaging processes and electrical testing.

  • Page 16: Supplemental Characteristics

    These characteristics are typical of most devices but are not warranted. Table 2-2 Connector Pin Depths Connectors Allowable Recession millimeters inches – – Attenuators 0.000 to 0.025 0.0000 to 0.001 – – Beaded lines 0.0000 to 0.013 0.0000 to 0.0005 2- 4 85058V...

  • Page 17: Electrical Specifications

    At the factory, each verification device is electrically characterized on a PNA measurement system. These factory measurements are traceable to the National Institute of Standards and Technology (NIST) through mechanical and electrical paths (for more information on traceability, contact Keysight Technologies. Refer to page 5-6.
  • Page 18 –2 2 GHz) 2 GHz to 11.5 –885 –80 20 GHz 20 GHz to 11.5 –1765 –865 40 GHz 40 GHz to –2960 –1740 67 GHz 67 GHz to –3096 –2920 70 GHz (Typical) a. Unwrapped phase. 2- 6 85058V...
  • Page 19 (dB) (degrees) 10 MHz to –10 45 MHz (Typical) 45 MHz to –75 2 GHz) 2 GHz to –945 30 GHz 30 GHz to –2110 67 GHz 67 GHz to –2250 70 GHz (Typical) a. Unwrapped phase. 85058V 2- 7...
  • Page 20 Specifications Electrical Specifications 2- 8 85058V...
  • Page 21 Use, Maintenance, and Care of the Devices...

  • Page 22: Use, Maintenance, And Care Of The Devices Electrostatic Discharge

    4. Remove the short from the cable. Figure 3-1 shows a typical ESD protection setup using a grounded mat an wrist strap. Refer to Table 6-3 on page 6-7 for information on ordering supplies for ESD protection. Figure 3-1 ESD Protection Setup 3- 2 85058V...

  • Page 23: Visual Inspection

    Connector Contacts Figure 3-2 on page 3-4 for visual guidelines when evaluating the contact integrity of a connector. NOTE Notice the location of the cross hairs in relationship to the center of the figures. 85058V...

  • Page 24: Concentricity

    Figure 3-4 show the concentricity of both the male and female 1.85 mm connectors. Inspect the connectors with a minimum magnification of 10X. Figure 3-3 Concentricity of a Female Connector Figure 3-4 Concentricity of a Male Connector 3- 4 85058V...

  • Page 25: Inspect The Mating Plane Surfaces

    3-4. Make sure that the contacts are formed symmetrically. The outside edge of the contacts must be very sharp. Also, the center conductor must be free of nicks, scratches, and dings. NOTE Inspection of connectors is particularly important when mating nonprecision to precision devices. 85058V...

  • Page 26: Cleaning Connectors

    Let the alcohol evaporate, then blow the threads dry with a gentle stream of clean, low-pressure compressed air or nitrogen. Always completely dry a connector before you reassemble or use it. 3. Clean the Mating Plane Surfaces 3- 6 85058V...
  • Page 27 Always completely dry a connector before you reassemble or use it. 4. Inspect the Connector Inspect the connector to make sure that no particles or residue remain. Refer to “Visual Inspection” on page 3-3. 85058V...

  • Page 28: Gaging Connectors

    Gaging Connectors Gaging Connectors The gages available from Keysight Technologies are intended for preventive maintenance and troubleshooting purposes only. They are effective in detecting excessive center conductor protrusion or recession, and conductor damage on DUTs, test accessories, and the verification kit devices.Do not use the gages for precise pin depth measurements.
  • Page 29 After each measurement, rotate the gage a quarter-turn to reduce measurement variations that result from the gage or the connector face not being exactly perpendicular to the center axis. e. Compare the average reading with the observed pin depth limits in Table 2-2 on page 2-4. 85058V...
  • Page 30 Use, Maintenance, and Care of the Devices Gaging Connectors Figure 3-5 Gaging Male 1.85 mm Connectors 3- 10 85058V...
  • Page 31 After each measurement, rotate the gage a quarter-turn to reduce measurement variations that result from the gage or the connector face not being exactly perpendicular to the center axis. e. Compare the average reading with the observed pin depth limits in Table 2-2 on page 2-4. 85058V 3-11...
  • Page 32 Use, Maintenance, and Care of the Devices Gaging Connectors Figure 3-6 Gaging Female 1.85 mm Connectors 3- 12 85058V...

  • Page 33: Connections

    Table 3-1 Torque Wrench Information Connector Type Torque Setting Torque Tolerance 1.85 mm 90 N-cm (8 in-lb) 9.0 N-cm (0.8 in-lb) Using a torque wrench guarantees that the connection is not too tight, preventing possible 85058V 3-13...
  • Page 34 3. Apply downward force perpendicular to the wrench handle. This applies torque to the connection through the wrench. Do not hold the wrench so tightly that you push the handle straight down along its length rather than pivoting it, otherwise, you apply an unknown amount of torque. 3- 14 85058V...

  • Page 35: How To Separate A Connection

    • Do not set connectors contact-end down on a hard surface. The plating and the mating plane surfaces can be damaged if the interface comes in contact with any hard surface. 85058V 3-15...
  • Page 36 Use, Maintenance, and Care of the Devices Handling and Storage 3- 16 85058V...

  • Page 37: Performance Verification

    Performance Verification...

  • Page 38: Introduction

    These two steps establish a traceable link to NIST for Keysight to the extent allowed by the institute’s calibration facility. The specifications data provided for the devices in the kit is traceable to NIST through Keysight Technologies. 4- 2 85058V...

  • Page 39: Recertification

    NOTE A list of NIST traceable numbers may be purchased upon request to be included in the calibration report. Keysight Technologies offers a Standard calibration for the recertification of the kit. For more information, contact Keysight Technologies. Refer to page 5-6.
  • Page 40 Performance Verification Recertification 4- 4 85058V...

  • Page 41: Troubleshooting

    Troubleshooting...

  • Page 42: Troubleshooting Process

    Troubleshooting Troubleshooting Process Troubleshooting Process If your PNA does not pass performance verification, follow the steps in Figure 5-1 to determine the cause of the failure and the correct action to take to correct the failure. 5- 2 85058V...
  • Page 43 Troubleshooting Troubleshooting Process Figure 5-1 Troubleshooting Flowchart 85058V...

  • Page 44: Compatible Network Analyzers

    When old verification kits that include the data disks are returned to Keysight for recertification, the disks will be reproduced with new data for each device in the kit. Please specify your VNA model(s) when returning kits for service or when ordering kit replacement parts. 5- 4 85058V...

  • Page 45: Where To Look For More Information

    “Contacting Keysight” on page 5-6. Returning a Kit or Device to Keysight Technologies If your kit or device requires service, contact Keysight Technologies for information on where to send it. Refer to page 5-6. Include a service tag (located at the back of this manual) on which you provide the following information: •...

  • Page 46: Contacting Keysight

    NOTE In any correspondence or telephone conversation, refer to the Keysight product by its model number and full serial number. With this information, the Keysight representative can determine whether your product is still within its warranty period. 5- 6 85058V...

  • Page 47: Replaceable Parts

    Replaceable Parts...

  • Page 48: Replacing The Verification Data

    Table 6-1 Information to Specify When Ordering Replacement Verification Data Device Model Number Serial Number Part Number Device 1 Device 2 Device 3 Device 4 Needed: (check) PNA USB drive ___; Data sheets ___ Last Recertification: Date _______________; Serviced by: ___________________________________________ 6- 2 85058V...
  • Page 49 All of the files (nine files: one .txt file, four .dat files, and four .unc files) you copied from the old verification device data media should be present. You now have a complete backup of the old verification device data on the new USB drive. 85058V...
  • Page 50 11.Save and close the kitparts.txt file. 12.Remove the old verification device data media (floppy disk or USB) from your computer or PNA.  Your new replacement device is now ready to use with your PNA. 6- 4 85058V...

  • Page 51: Replaceable Parts

    Replaceable Parts Replaceable Parts Replaceable Parts Table 6-2 lists the replacement part numbers for items included in the 85058V verification kit Figure 6-1 illustrates the attenuators and beaded lines. Table 6-3 lists the replacement part numbers for items not included in the verification kit that are either required or recommended for successful operation of the kit.
  • Page 52 Replaceable Parts Replaceable Parts Figure 6-1 Component Identification Sheet for the 85058V 6- 6 85058V...
  • Page 53 2 x 4 ft conductive table mat and 15 ft ground wire 9300-0797 ESD heel strap (for conductive floors) 9300-1308 Connector Cleaning Supplies Isopropyl alcohol Cleaning swabs 9301-1243 a. Included in the 85058B 1.85 mm Calibration Kit. b. Included in both the 85058B and the 85058E 1.85 mm Calibration Kits. 85058V...
  • Page 54 Replaceable Parts Replaceable Parts 6- 8 85058V...
