Keysight Technologies 85056D User's And Service Manual

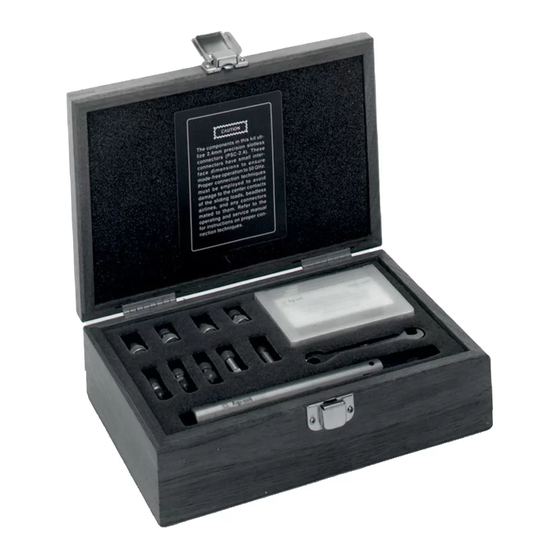

2.4 mm -f- and -m- 2.4 mm -f- (3-in-1) 2.4 mm -m- (3-in-1) economy calibration kits
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Keysight Technologies
85056D 2.4 mm -f- and -m-
85563A 2.4 mm -f- (3-in-1)
85564A 2.4 mm -m- (3-in-1)
Economy Calibration Kits
User's and
Service Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 85056D and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies 85056D

Summary of Contents for Keysight Technologies 85056D

  • Page 1 User's and Service Guide Keysight Technologies 85056D 2.4 mm -f- and -m- 85563A 2.4 mm -f- (3-in-1) 85564A 2.4 mm -m- (3-in-1) Economy Calibration Kits...
  • Page 2 COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH government requirements THESE TERMS, THE WARRANTY beyond those set forth in the © Keysight Technologies, Inc. TERMS IN THE SEPARATE EULA shall apply, except to the 1998–2016 AGREEMENT WILL CONTROL. extent that those terms, rights, or...

  • Page 3: Table Of Contents

    Where to Send a Kit for Recertification ..........4-2 85056D/ 85563A/85564A...
  • Page 4 Contacting Keysight............. . 5-5 6. Replaceable Parts A. Standard Definitions Class Assignments and Standard Definitions Values are Available on the Web ....A-1 85056D/85563A/85564A...

  • Page 5: General Information

    User’s and Service Guide General Information Calibration Kit Overview The Keysight 85056D 2.4 mm standard calibration kit and 85563A/85664A 3-in-1 2.4 mm calibration kits are used to calibrate Keysight network analyzers up to 50 GHz for measurements of components with 2.4 mm connectors.
  • Page 6 85563A and 85564A. The open and shorts are identical in the kits. For example, the open female standard in the 85056D is the same open that is included in the 85563A. The load standards are different parts that have the same electrical performance.

  • Page 7: Calibration Definitions

    Connector cleaning supplies and various electrostatic discharge (ESD) protection devices are not supplied with the calibration kit but are required to ensure successful operation of the kit. Refer to Table 6-2 on page 2 ordering information. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 8: Incoming Inspection

    — the model number and serial number of the kit — the part number and serial number of the device — the type of service required — a detailed description of the problem Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 9: Recording The Device Serial Numbers

    –f– short _______________________________ –m– broadband load _______________________________ –f– broadband load _______________________________ –m– to –m– 2.4 mm adapter _______________________________ –m– to -f- 2.4 mm adapter _______________________________ –f– to –f– 2.4 mm adapter _______________________________ Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 10: Precision Slotless Connectors

    50 dB return loss levels is comparable to using conventional slotted connectors measuring devices having only 30 dB return loss. This represents an accuracy improvement of about 10 times. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 11: Clarifying The Terminology Of A Connector Interface

    If you can not obtain repeatable measurements from your calibration standards, maintenance needs to be performed on the test port connectors, cables and calibration standards. Also, Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 12 With experience you will be able to see changes in the reference responses that indicate a need to perform the measurement calibration again. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 13: Specifications

    Keysight Technologies 85056D and 85563A/85564A 2.4 mm Economy Calibration Kits User’s and Service Guide 2 Specifications Environmental Requirements Table 2-1 Environmental Requirements Parameter Limits Temperature +20 °C to +26 °C Operating Storage −40 °C to +75 °C Error-corrected range ± 1 °C of measurement calibration temperature Relative humidity Type tested, 0% to 95% at 40 °C, non-condensing...

  • Page 14: Mechanical Characteristics

    Recession is the condition in which the center conductor is set back from the outer conductor mating plane. This condition will indicate a negative value on the connector gage. Figure 2-1 Connector Pin Depth Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 15 Approximately +2 sigma to -2 sigma of gage uncertainty based on studies done at the factory according to recommended procedures. b. Observed pin depth limits are the range of observation limits seen on the gage reading due to measurement uncertainty. The depth could still be within specifications. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 16: Electrical Specifications

    “Class Assignments and Standard Definitions Values are Available on the Web” on page Certification Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory. Keysight further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology (NIST) to the extent allowed by the institute’s calibration facility, and to the calibration facilities of other...

  • Page 17: Use, Maintenance, And Care Of The Devices

    Keysight Technologies 85056D and 85563A/85564A 2.4 mm Economy Calibration Kits User’s and Service Guide Use, Maintenance, and Care of the Devices Electrostatic Discharge Protection against electrostatic discharge (ESD) is essential while connecting, inspecting, or cleaning connectors attached to a static-sensitive circuit (such as those found in test sets).
  • Page 18 Use, Maintenance, and Care of the Devices Electrostatic Discharge Figure 3-1 ESD Protection Setup Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 19: Inspecting Connectors

    Other small defects and cosmetic imperfections are also normal. None of these affect electrical or mechanical performance. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 20: Inspect Female Connectors

    PSC has a center conductor with a solid cylindrical shell, the outside diameter of which does not change when mated. Instead, this center conductor has an internal contact that flexes to accept the male pin. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 21: Cleaning Connectors

    Refer to Table 6-2 on page 6-2 for part numbers for cleaning swabs. a. Apply a small amount of isopropyl alcohol to a lint-free cleaning swab. b. Clean the connector threads. Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 22 Always completely dry a connector before you reassemble or use it. 4. Inspect Inspect the connector to make sure that no particles or residue remain. Refer to “Inspecting Connectors” on page 3-3. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 23: Gaging Connectors

    Use, Maintenance, and Care of the Devices Gaging Connectors Gaging Connectors The gages available from Keysight Technologies are intended for preventive maintenance and troubleshooting purposes only. See Table 6-2 on page 6-2 for part number information. They are effective in detecting excessive center conductor protrusion or recession, and conductor damage on DUTs, test accessories, and the calibration kit devices.

  • Page 24: When To Gage Connectors

    — If a calibration device is used by someone else or on another system or piece of equipment. — Initially after every 100 connections, and after that as often as experience indicates. Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 25: Gaging Procedures

    Gently tap the barrel of the gage with your finger to settle the gage reading. d. Read the gage indicator dial. Read only the black ± signs; not the red ± signs. Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 26 Compare the average reading with the observed pin depth limits in Table 2-2 on page 2-3. 3-10 Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 27 Use, Maintenance, and Care of the Devices Gaging Connectors Figure 3-2 Gaging 2.4 mm Connectors Keysight 85056D and 85563A/85564A User’s and Service Guide 3-11...

  • Page 28: Making Connections

    Very light finger pressure is enough to accomplish this. 8. Make sure the connectors are properly supported. Relieve any side pressure on the connection from long or heavy devices or cables. 3-12 Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 29 This is especially true when several devices are connected together. Figure 3-3 Wrench Positions 2. Hold the torque wrench lightly, at the end of the handle only (beyond the groove). See Figure 3-4. Keysight 85056D and 85563A/85564A User’s and Service Guide 3-13...

  • Page 30: How To Separate A Connection

    4. Pull the connectors straight apart without twisting, rocking, or bending either of the connectors. Handling and Storage — Install the protective end caps and store the calibration devices in the foam-lined storage case when not in use. 3-14 Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 31 — Do not set connectors contact-end down on a hard surface. The plating and the mating plane surfaces can be damaged if the interface comes in contact with any hard surface. Keysight 85056D and 85563A/85564A User’s and Service Guide 3-15...
  • Page 32 Use, Maintenance, and Care of the Devices Handling and Storage 3-16 Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 33: Performance Verification

    These two steps establish a traceable link to NIST for Keysight to the extent allowed by the institute’s calibration facility. The specifications data provided for the devices in the kit is traceable to NIST through Keysight Technologies. 4- 1...

  • Page 34: Recertification

    The recertification interval should begin on the date the kit is first used after the recertification date. Where to Send a Kit for Recertification Contact Keysight Technologies for information on where to send your kit for recertification. See “Contacting Keysight” on page 5-5.

  • Page 35: Troubleshooting

    Keysight Technologies 85056D and 85563A/85564A 2.4 mm Economy Calibration Kits User’s and Service Guide 5 Troubleshooting Troubleshooting Process If you suspect a bad calibration, or if your network analyzer does not pass performance verification, follow the steps in Figure 5-1.
  • Page 36 Troubleshooting Troubleshooting Process Figure 5-1 Troubleshooting Flowchart Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 37: Where To Look For More Information

    2.Enter your analyzer model number (Ex: N5242A) in the Search box and click Search. 3.Under the heading Manuals, click on the title/hyperlink for the document PDF you want to view. If you need additional information, see “Contacting Keysight” on page Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 38: Returning A Kit Or Device To Keysight

    Troubleshooting Returning a Kit or Device to Keysight Returning a Kit or Device to Keysight If your kit or device requires service, contact Keysight Technologies for information on where to send it. See “Contacting Keysight” on page 5. Include a service tag (located near the end of this manual) on which you provide the following information: —...

  • Page 39: Contacting Keysight

    In any correspondence or telephone conversation, refer to the Keysight product by its model number and full serial number. With this information, the Keysight representative can determine whether your product is still within its warranty period. Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 40 Troubleshooting Contacting Keysight Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 41: Replaceable Parts

    User’s and Service Guide Replaceable Parts Keysight does not offer replaceable parts on the 85563A or 85564A. Table 6-1 lists the replacement part numbers for items included in the 85056D calibration kit and Figure 6-1 illustrates each of these items.
  • Page 42 ESD Protection Devices Heel strap 9300-1308 Grounding wrist strap 9300-1367 5 ft grounding cord for wrist strap 9300-0980 2 ft by 4 ft conductive table mat with 15 ft grounding wire 9300-0797 Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 43 Keysight Part Per Kit Number Connector Cleaning Supplies Anhydrous isopropyl alcohol (>92% pure) Foam-tipped cleaning swabs 9301-1243 a. Keysight can no longer safely ship isopropyl alcohol, so customers should purchase it locally. Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 44 Replaceable Parts Figure 6-1 Replaceable Parts for the 85056D Calibration Kit Keysight 85056D and 85563A/85564A User’s and Service Guide...

  • Page 45: Standard Definitions

    Keysight Technologies 85056D and 85563A/85564A 2.4 mm Economy Calibration Kits User’s and Service Guide Standard Definitions Class Assignments and Standard Definitions Values are Available on the Web Class assignments and standard definitions may change as more accurate model and calibration methods are developed. You can download the most recent class assignments and standard definitions from Keysight’s Calibration...
  • Page 46 Class Assignments and Standard Definitions Values are Available on the Web Keysight 85056D and 85563A/85564A User’s and Service Guide...
  • Page 47 Keysight Application Note threads modifying definition files cleaning overview inspecting performance visual inspection how Keysight verifies wear verifying affect on electrical performance case constants, calibration, See calibration definitions part number contacting Keysight Technologies certificate of calibration contents 85056D/85563A/85564A Index...
  • Page 48 3-14 humidity downloading class assignments & std definitions specifications from the Web incoming inspection electrical specifications information, troubleshooting electrostatic discharge, See ESD inspection environmental damage regulations defects requirements female connectors specifications 85056D/85563A/85564A Index...
  • Page 49 National Institute of Standards and Technology typical values (NIST) precision adapters nitrogen part numbers for cleaning precision slotless connectors 85056D/85563A/85564A Index...
  • Page 50 85056D/85563A/85564A Index...
  • Page 51 7 mm open-end part number open-end 3-13 3-14 part number proper positioning of 3-13 torque 3-13 3-14 part number precautions for use of 3-14 proper use of 3-14 wrist strap part number zeroing connector gage 85056D/85563A/85564A Index...
  • Page 52 Index 85056D/85563A/85564A Index...
  • Page 54 This information is subject to change without notice. © Keysight Technologies 1996-2016 Edition 1, September 2016 www.keysight.com...
