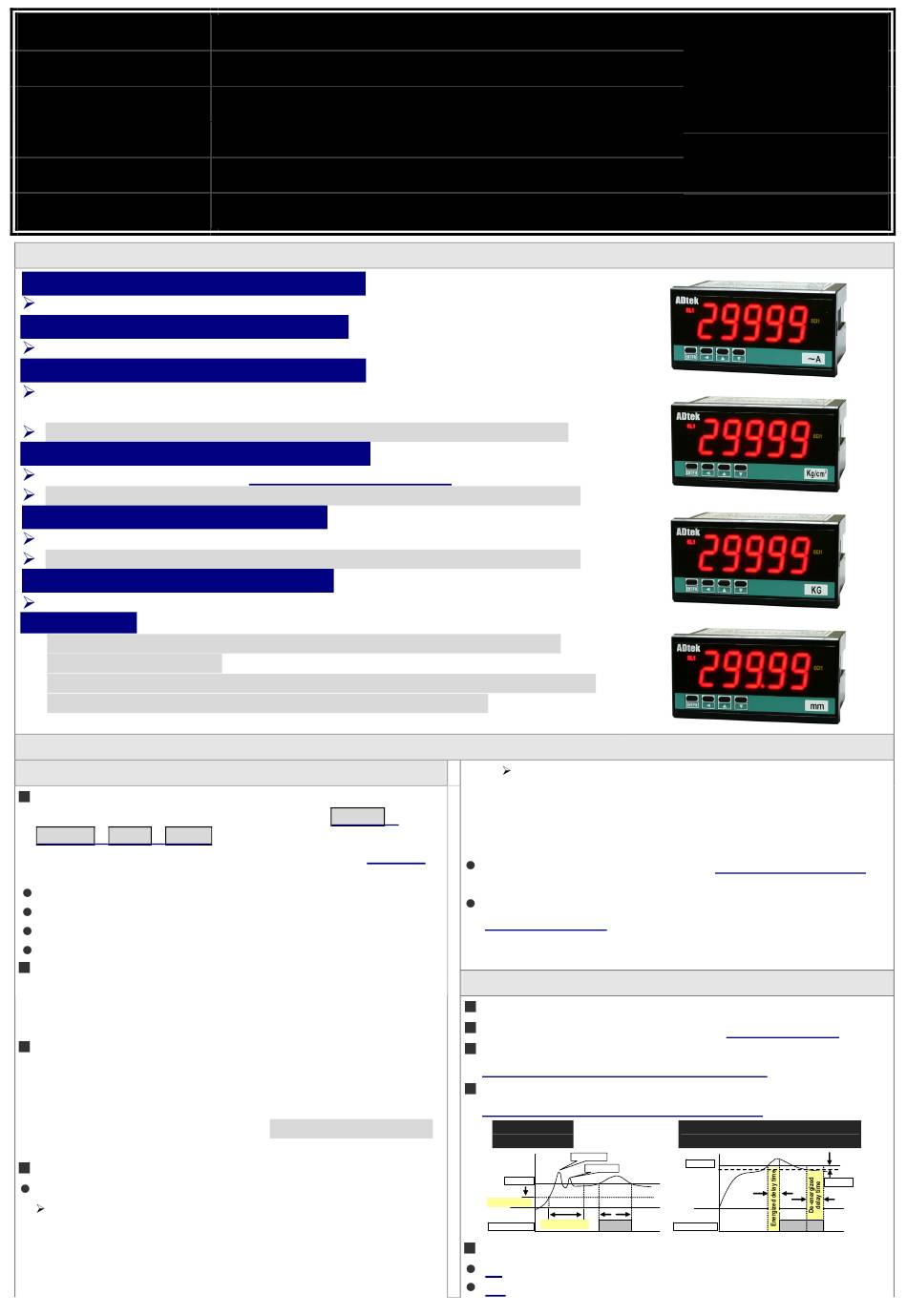

Display Functions - ADTEK CS1-SG Operation Manual

CS1-VA
(V1.0)
CS1-PR
(V1.0)
CS1-SG
(V1.0)
CS1-PM
(V1.0)
CS1-RS
(V1.0)
CS1-T
(V1.0)
■ FEATURES
【CS1-VA VOLT / CURRENT METER】
Measuring Voltage 0~600V or Current 0~10A；DC / AC / TRMS
【CS1-PR DC SIGNAL INDICATOR】
Measuring DC 0~10V or 0(4)~20 mA in process
【CS1-SG STRAIN GAUGE INDICATOR
Measuring Strain Gauge from 0~1.0/~2.0/~4.0 mV/V or 0~10.0/~20.0/~40.0
mV/V specify with excitation supply DC 5V or 10V, 30mA
Field calibration with strain gauge to meet the system requirement
POTENTIOMETER INDICATOR
【CS1-PM
Measuring Potentiometer 0.0Ω~2.0KΩ / 0.0Ω~50 KΩ
Field calibration with potentiometer to meet the system requirement
【 CS1-RS RESISTANCE INDICATOR
Measuring Resistance(2-wired) 0~200.00Ω/2000.0Ω/20.000KΩ/200.00KΩ
Field calibration with potentiometer to meet the system requirement
CS1-T TEMPERATURE INDICATOR
【
Measuring Pt100Ω; T/C: K,J,E,T
FEATURES
● 1 relay, 1 Analogue output or RS 485 communication port can be
selected one in option
● Relay for Hi / Lo energized with Start Delay / Hysteresis / Energized &
De-energized Delay / Relay Energized Hold..... functions
● CE Approved
FUNCTIONS

■ DISPLAY FUNCTIONS

Front Key Function
The down key on front panel can be set rEL.Pv /
Pv.HLd / M.rSt / rY.rSt functions. When down key to
be pressed, the function customer selects 【dn.KEY】
in engineer level will be done .
rEL.Pv: Relative present value
Pv.HLd: Present value hold
M.rSt: Maximum and minimum memorize reset
rY.rSt: Relay energized reset
Maximum and Minimum memorize:
The meter will keep update maximum and minimum
value in User Level during power on until manual reset
by front key.
Write to display by RS485 command
The display can be written by RS485 command. In past,
The meter nomorlly receive 4~20mA or 0~10V from AO
card or BCD card of PLC. We support a new solution by
RS485 writing in so that can be save cost and wiring
into PLC.
Low Cut / Digital Filter / Digital Fine Adjustment
Low Cut: seting range from -5000~+5000 counts.
If the setting value is positive, it means the range of
absolute value will be 0; PV≤ Setting value, the
display will be 0;
EX：Low Cut is set for 0.10, if the display is from
-0.10~+0.10, that will be 0.
VOLT / CURRENT METERS
DC SIGNAL INDICATOR
STRAIN GAUGE INDICATOR
POTENTIOMETER INDICATOR
RESISTANCE INDICATOR
TEMPERATURE INDICATOR
】
】
】
】
If the setting value is negative, it means the range
of under setting value will be 0; PV≤ -Setting value,
the display will be 0;
EX：Low Cut is set for -0.01, if the display is ≤ -0.01,
and all the display will be 0.
Digital filter: seting range from 0(None)/1~99 times.
The digital filter can reduce the magnetic noise in field.
Digital Fine Adjustment: seting range from
-19999~+29999 ; Users can get Fine Adjustment by
front key of the meter, and "Just Key In" the value
which user want to show in the current input signals.
■ RELAY FUNCTIONS
Start Delay
Hysteresis: Settable range from 0~9999 Counts
Relay energized delay: Settable range from
0.1(second)~9(minutes)59.9(seconds);
Relay de-energized delay: Settable range from
0.1(second)~9(minutes)59.9(seconds)
Start Delay
Inhibit
Inhibit
Hi Setting
Start Band(SB)
Start Delay Time ON
Relay Energized
Relay energized mode Hi / Lo / Hi.HLd / Lo.HLd
Hi: Relay will energize when PV > Set-Point
Lo: Relay will energize when PV < Set-Point
1 / 10 CS1-SERIES (V1.0) OPERATION MANUAL 2006-10-26
OPERATION
MANUAL
Energized / De-energized Delay
& Hysteresis
Hi Setting
Hysteresis
ON
Relay Energized
