Get started

Step 4: Use API mode to talk to XBee modules

This section shows you how to configure an XBee module in API mode, which gives you flexibility,
speed, and reliability in your data transmissions.
If you get stuck, see Troubleshooting.
For more information on API mode, see

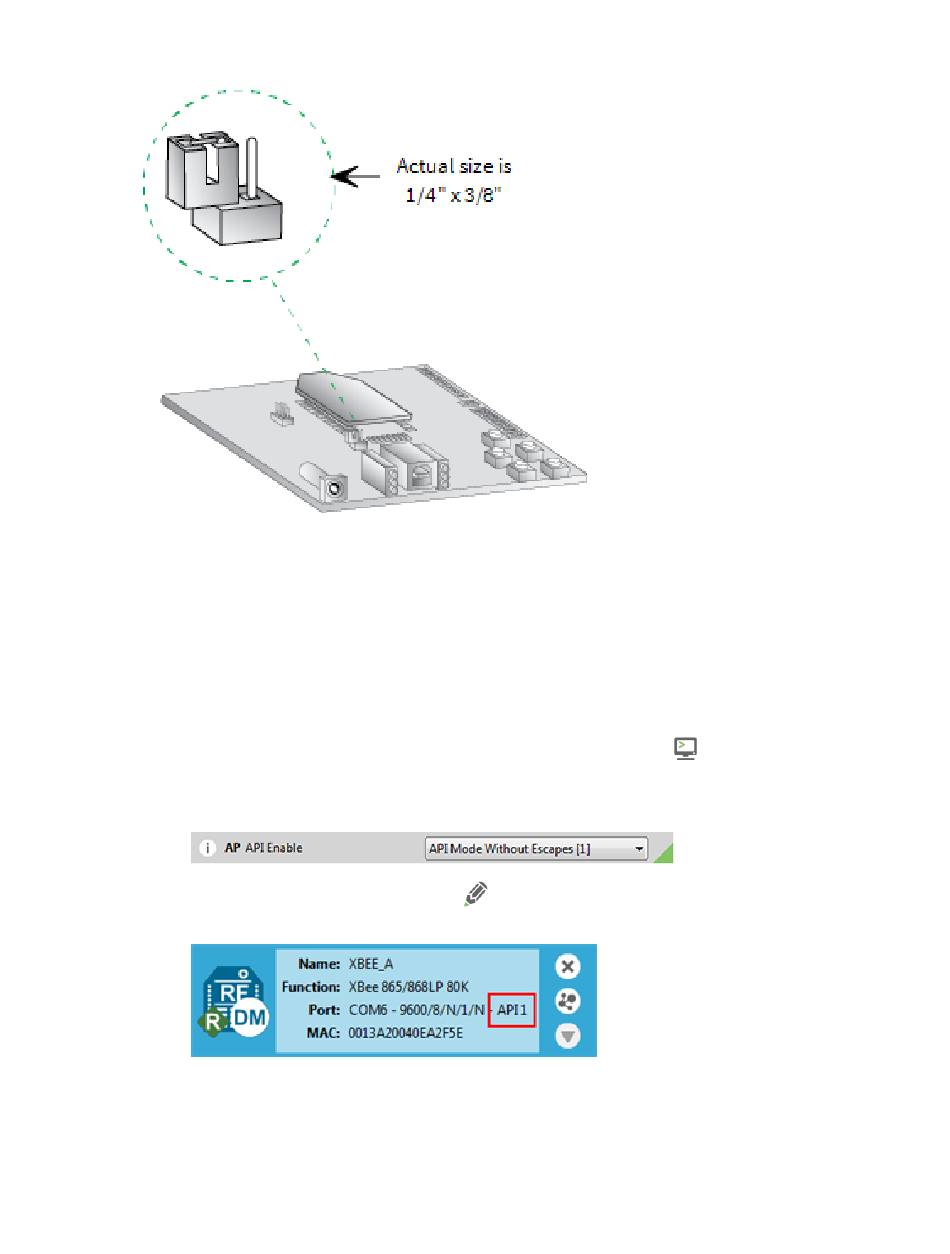

Configure a device in API mode
1. Select XBEE_A and click the Configuration working modes button
2. Add this configuration:
AP: API Mode 1
3. Click the Write radio settings button
The Port indicates XBEE_A is in API mode.
Send an API Tx frame from an XBee module to another module
API Tx frames are the instructions that allow one XBee module to send data to another XBee module.
In these instructions, XBEE_A uses the API frame type "Transmit Request" to send some text data to
XBee 868LP RF Modules User Guide
Operate in API mode.
.
Set up the devices
.
43
