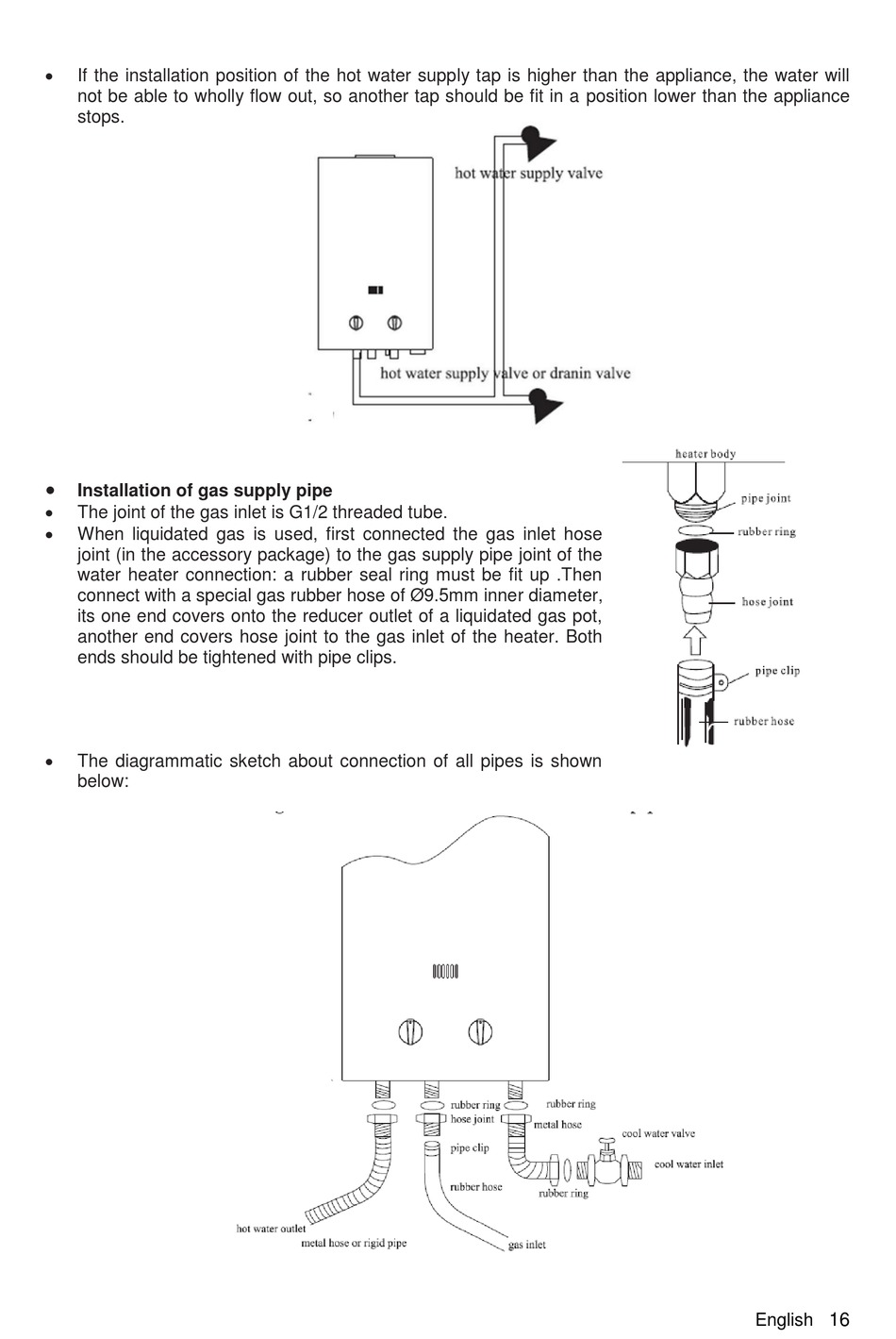

If the installation position of the hot water supply tap is higher than the appliance, the water will
not be able to wholly flow out, so another tap should be fit in a position lower than the appliance
stops.

Installation of gas supply pipe

The joint of the gas inlet is G1/2 threaded tube.

When liquidated gas is used, first connected the gas inlet hose
joint (in the accessory package) to the gas supply pipe joint of the
water heater connection: a rubber seal ring must be fit up .Then
connect with a special gas rubber hose of Ø9.5mm inner diameter,
its one end covers onto the reducer outlet of a liquidated gas pot,
another end covers hose joint to the gas inlet of the heater. Both
ends should be tightened with pipe clips.

The diagrammatic sketch about connection of all pipes is shown
below:
