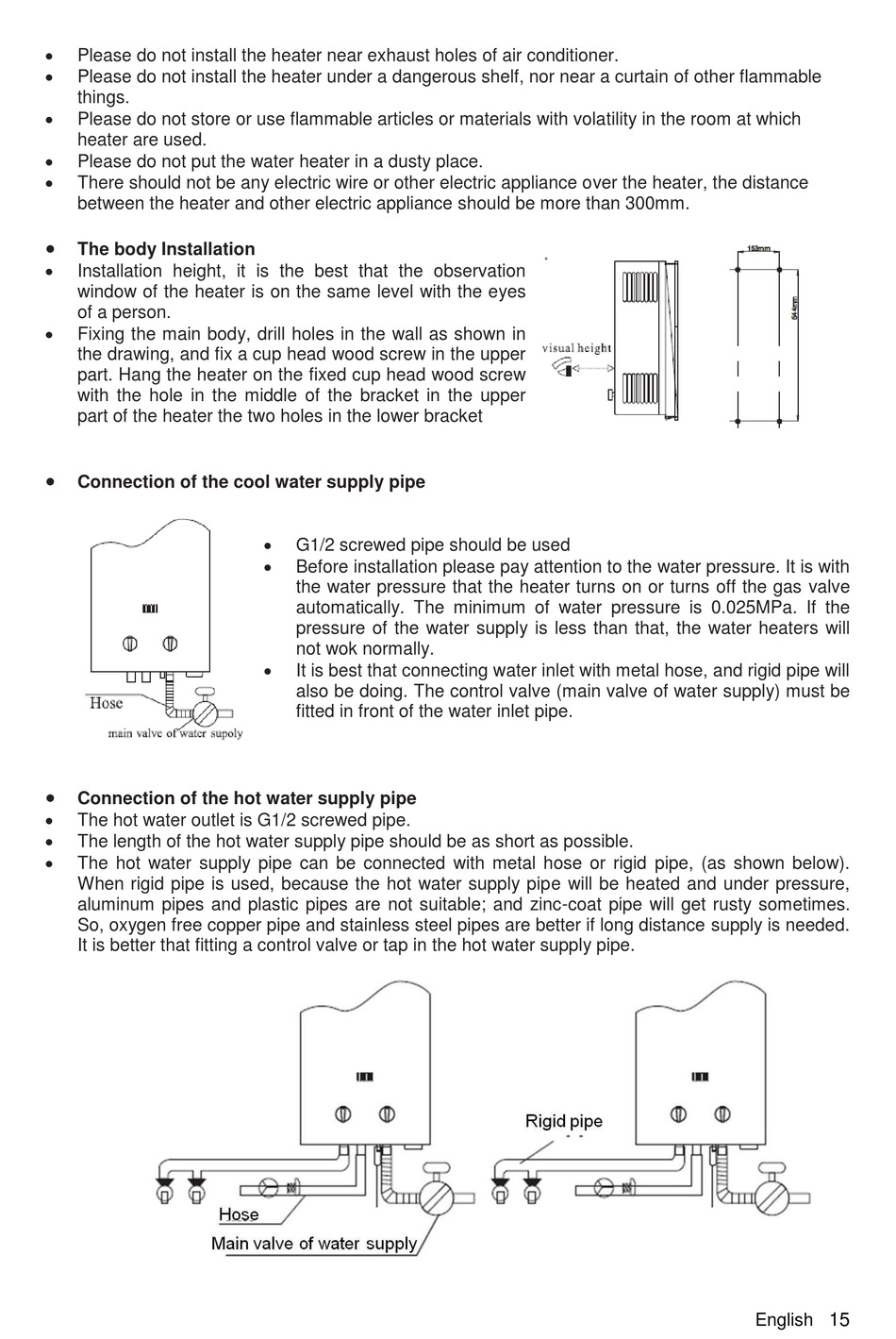

Modena GI 6A V Manual page 18


Please do not install the heater near exhaust holes of air conditioner.

Please do not install the heater under a dangerous shelf, nor near a curtain of other flammable
things.

Please do not store or use flammable articles or materials with volatility in the room at which
heater are used.

Please do not put the water heater in a dusty place.

There should not be any electric wire or other electric appliance over the heater, the distance
between the heater and other electric appliance should be more than 300mm.

The body Installation

Installation height, it is the best that the observation
window of the heater is on the same level with the eyes
of a person.

Fixing the main body, drill holes in the wall as shown in
the drawing, and fix a cup head wood screw in the upper
part. Hang the heater on the fixed cup head wood screw
with the hole in the middle of the bracket in the upper
part of the heater the two holes in the lower bracket

Connection of the cool water supply pipe

Connection of the hot water supply pipe

The hot water outlet is G1/2 screwed pipe.

The length of the hot water supply pipe should be as short as possible.

The hot water supply pipe can be connected with metal hose or rigid pipe, (as shown below).
When rigid pipe is used, because the hot water supply pipe will be heated and under pressure,
aluminum pipes and plastic pipes are not suitable; and zinc-coat pipe will get rusty sometimes.
So, oxygen free copper pipe and stainless steel pipes are better if long distance supply is needed.
It is better that fitting a control valve or tap in the hot water supply pipe.

G1/2 screwed pipe should be used

Before installation please pay attention to the water pressure. It is with
the water pressure that the heater turns on or turns off the gas valve
automatically. The minimum of water pressure is 0.025MPa. If the
pressure of the water supply is less than that, the water heaters will
not wok normally.

It is best that connecting water inlet with metal hose, and rigid pipe will
also be doing. The control valve (main valve of water supply) must be
fitted in front of the water inlet pipe.
