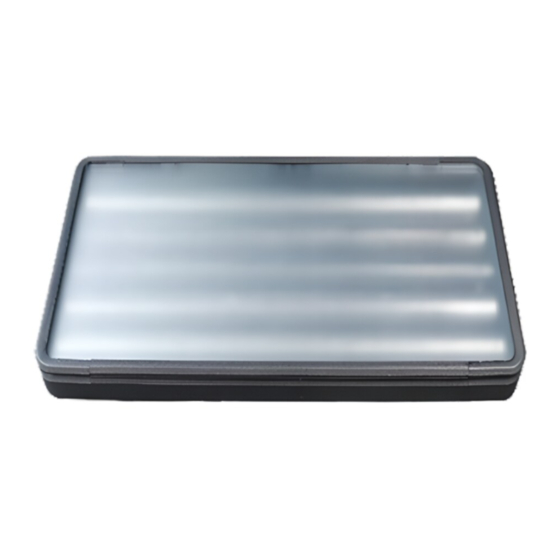

- Page 1 User Manual Book Solar Water Heater Giorno Series SH 1513 CE...
-
Page 2: Table Of Contents
Piping and Electrical Connection Method Several Panels Combination Part 4: Maintenance Part 5: Troubleshooting Part 6: Specification This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. English 1... -
Page 3: Part 1: Important Safety Information
PART 1: IMPORTANT SAFETY INFORMATION 1. The installation may only be carried out by qualified professionals. 2. The pipes must be insulated with a suitable UV resistant material of the appropriate thickness in order to reduce heat loss and protect the pipes from freezing. -
Page 4: Standard Accessories
Remark: 1. Tempered Safety Solar Glass 5. Drain Hole 2. Clear Heat Insulation 6. Outlet Hole 3. Storage Tank 7. Reserve Hole 4. Case 8. Inlet Hole Standard Accessories M8*35 M6*40 Combined Valve Fixing Sheet Flat Roof Installation Accessories M8*45 Front Track Support Leg Fixing Press Pad... -
Page 5: Part 3: Installation
PART 3: INSTALLATION Preparation 1. Check the outer shell whether it is well. 2. Check if the accessories are complete against the packing list. 3. Prepare the necessary tools before installation. Tie the safety rope and take other protective measures during the altitude operation. On-Roof / Slope Installation 1. -
Page 6: Piping And Electrical Connection Method
Choose suitable angle according to the local latitude Piping and Electrical Connection Method Install the combined valve at the water inlet according to the image below. Pay attention to the direction of the valve. Heating Element Temperature Sensor ontroller Water outlet Mixing Valve Water Inlet Pay attention to... -
Page 7: Several Panels Combination
Several Panels Combination 1. Parallel Installation Hot Water Outlet Cold Water Inlet Mixing Valve 2. Series Instalation Hot Water Outlet Cold Water Inlet Mixing Valve PART 4: MAINTENANCE If the solar water heater is installed at dusty area, it will reduce the absorption rate of the collector panel when the dust adheres to the collector surface. -
Page 8: Part 5: Troubleshooting
PART 5: TROUBLESHOOTING Problem Possible Cause Recommended Actions The panel is covered by dust Clean the dust periodically The panel is covered by high Remove the covering / towers, trees, tall building, barrier or move the solar fences, other water heaters, water heater to the open Water is not hot in place. - Page 9 08/21...
