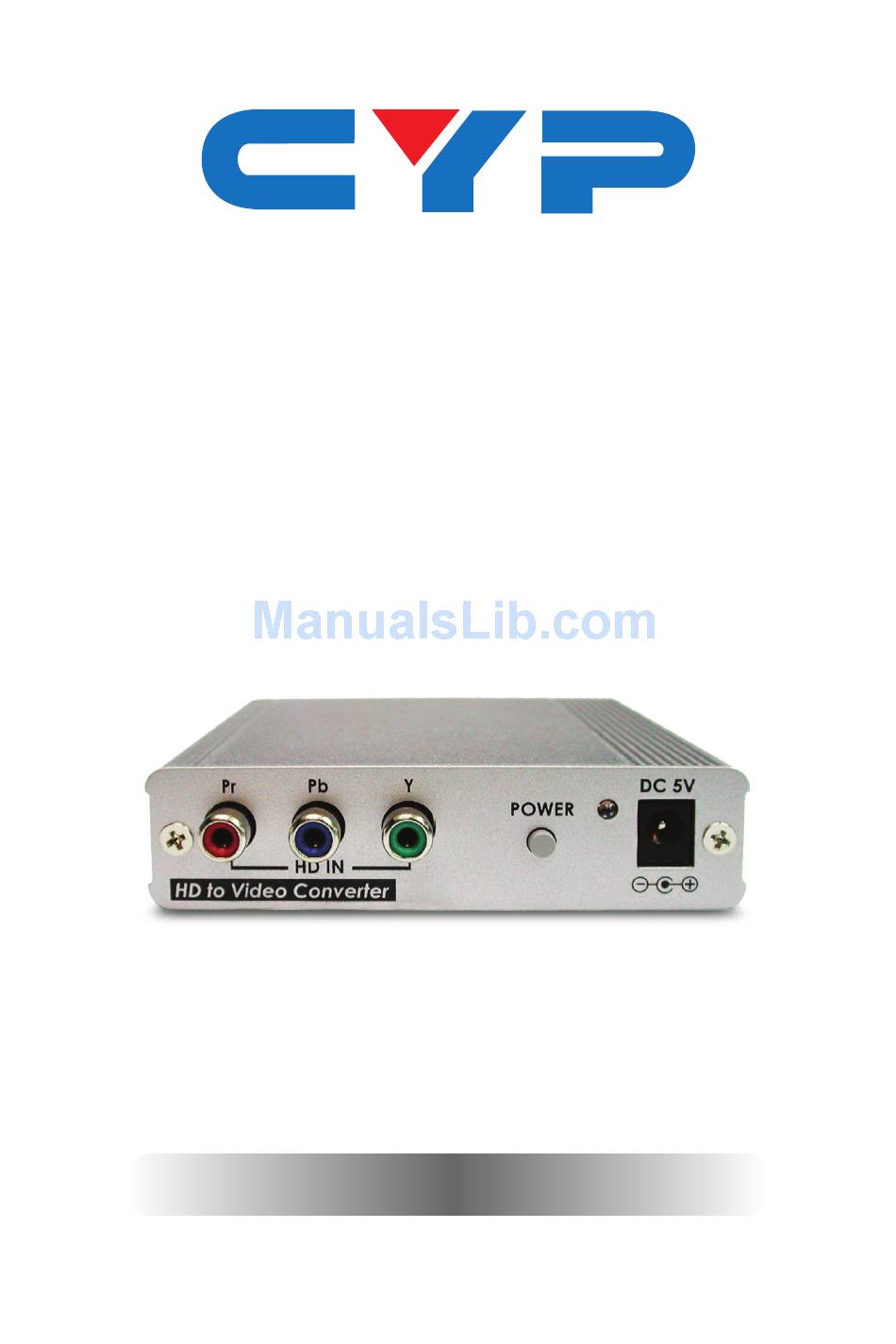

- Page 1 CPT-387HD HD to Video Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The HD Component to Video Converter with HD bypass is designed to convert a variety of analog component images, from 480p up to 1080p and can convert them to NTSC or PAL standards video with an additional HD bypass output. Users can also adjust the Overscan/ Underscan of the output image. -
Page 7: Operation Controls And Functions

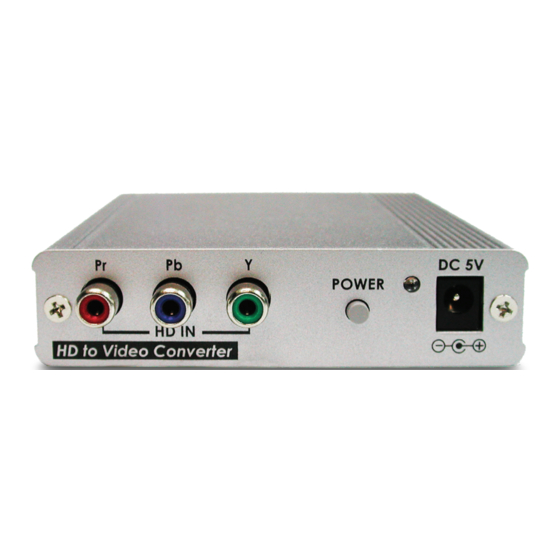

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V DC 5V POWER POWER HD IN HD IN HD to Video Converter HD to Video Converter YPbPr HD IN Connect to the source equipment such as a DVD/Blu-ray player with component video cables. POWER Button Switches the device on or sets it to standby mode. -
Page 8: Rear Panel
6.2 Rear Panel S-Video S-Video Under Under Video Video Scan Scan Over Over Scan NTSC Scan NTSC HD Bypass HD Bypass Under Scan/Over Scan Switch Switch to adjust the output image to underscan or overscan on the display in order to view the full image. PAL/NTSC Switch Switch to change to PAL or NTSC system according to suit the display system. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD Player Component Input Power Supply DC 5V POWER HD IN HD to Video Converter Under S-Video Video Scan Over Scan NTSC HD Bypass Composite S-Video Component Output Output Output (Bypass) SD Recorder SDTV HDTV... -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1×Component (Y/Pb/Pr) Output Ports 1×Component Bypass (Y/Pb/Pr), 1×Composite Video, 1×S-Video Supports Input Resolution 480p@60, 576p@50, 720p@50/60, 1080i@50/60, 1080p@24/25/30/50/60 Switcher 1×Overscan/Underscan, 1×PAL/NTSC ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V DC/2.6A (US/EU standards, CE/FCC/ UL certified) Dimensions... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM High Definition NTSC National Television System Committee Phase Alternating Line Standard Definition... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
