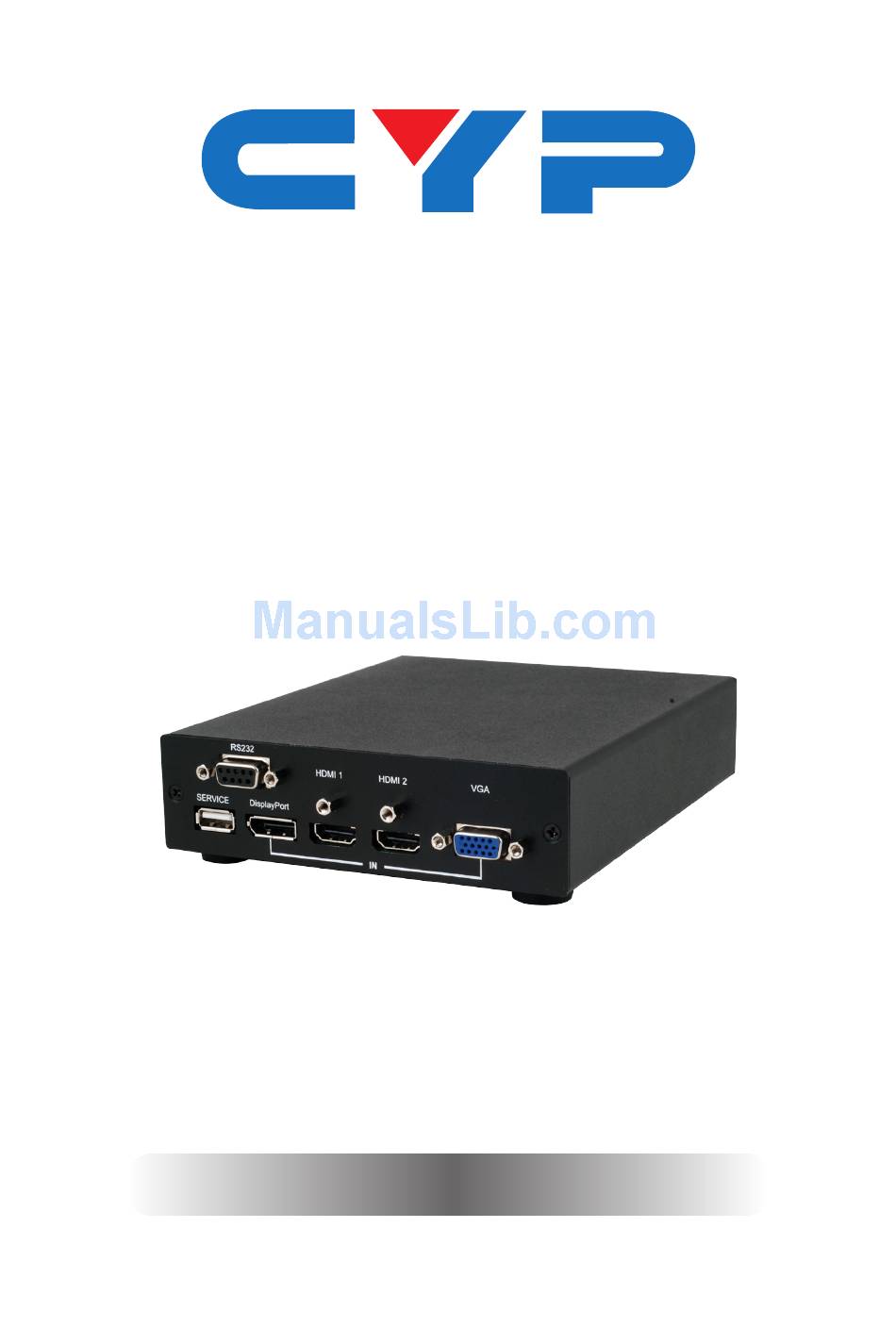

- Page 1 CS-801H HD High Resolution Scaler with 3D Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 RS-232 Protocols .......5 6.5 RS-232 Commands ......5 6.6 OSD Menu .........7... -
Page 6: Introduction
1. INTRODUCTION This HD High Resolution Scaler can switch and convert HDMI, DisplayPort and VGA, Component Video inputs to an HDMI output, along with their associated audio signals. With the ability to scale a wide range of resolutions and allows 3D movies to be watched on a 2D displays, the operation of all features can be easily handled through on-panel controls, IR remote control, or by RS-232 protocol. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL AUDIO HDMI OUT POWER DC 5V MENU/ ENTER OPTICAL AUDIO BYPASS → MENU/ENTER: Press this button to ENTER the On-screen Display (OSD) menu. Press again to confirm the selection. MINUS (-)/IN: When in the OSD menu, press this button repeatedly to move down through the menu. -
Page 8: Rear Panel

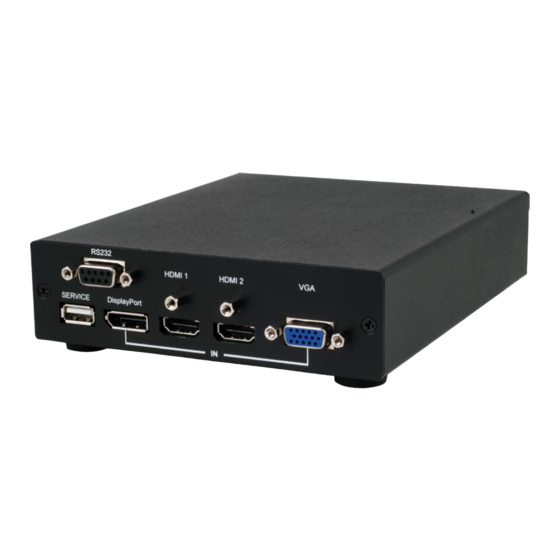

DC 5V and POWER LED: Connect the supplied 5V DC power supply to the unit and plug the power supply to AC wall outlet. Once the system turns on the LED will turn RED. 6.2 Rear Panel RS232 HDMI 1 HDMI 2 SERVICE DisplayPort... -
Page 9: Remote Control
6.3 Remote Control POWER: Press to turn the system ON/ OFF. HDMI 1 HDMI 2 COMP VIDEO IN: Press the required key to VIDEO IN AUDIO OPTICAL HDMI/DP directly select the video source (HDMI MUTE AUDIO IN 1/HDMI 2/DP/PC/COMP). EXIT MENU ENTER AUDIO IN: Press the required key... -
Page 10: Rs-232 Protocols
6.4 RS-232 Protocols SCALER REMOTE CONTROL Definition Definition ► ◄ Baud Rate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit Flow Control: None 6.5 RS-232 Commands COMMAND DESCRIPTION POWER ? Power Status POWER ON Power On POWER OFF Power Off 3D ? - Page 11 COMMAND DESCRIPTION HDMI 2 Video Input in HDMI2 Video Input in DisplayPort Video Input in PC COMP Video Input in Component AUDIO ? Audio Input Source AUDIO Audio Input in AUDIO OPTICAL Audio Input in OPTICAL HDMI/DP Audio Input in HDMI/DP MUTE ON Mute On MUTE OFF...
-
Page 12: Osd Menu
COMMAND DESCRIPTION FEEDBACK OFF RS232 Feedback Disable STATE ? Video Input Signal Status VERSION ? Firmware Version DEFAULT Reset to Factory Default Note: Any commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. 6.6 OSD Menu FIRST LEVEL SECOND LEVEL THIRD LEVEL... - Page 13 720×480P 1280×720P 1920×1080P 640×480 800×600 1024×768 1280×1024 1600×1200 1920×1200 By Native 3D Bypass Exit Output Format 3D→2D 3D Bypass Exit Miscellany EDID Mode Internal External Exit Info. OSD Mode Exit About CS-801H FW Ver. Factory Reset System Reset Exit Exit...
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Laptop Set-top Box Blu-ray Player HDMI HDMI Input Input DisplayPort Input Input RS-232 Analog Audio Digital RS232 Input (3.5mm Audio Input HDMI 1 HDMI 2 SERVICE DisplayPort Mini-jack) (Optical) Power OPTICAL AUDIO HDMI OUT POWER Supply DC 5V MENU/ ENTER OPTICAL... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Video Bandwidth 255 MHz/6.75 Gbps DisplayPort Video 2.7 Gbps & 1.62 Gbps/Lane Bandwidth Input Ports 2×HDMI, 1×DisplayPort, 1×VGA (D-sub 15- pin), 1×Optical, 1×3.5mm Mini-jack Output Ports 1×HDMI, 1×Optical, 1×3.5mm Mini-jack Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 16: Supported Input Resolutions
8.2 Supported Input Resolutions INPUT RESOLUTION (2D SIGNAL) HDMI COMP 640×350@85 640×400@85 720×400@85 640×480 (VGA)@60, 72, 75, 85 800×600 (SVGA)@56, 60, 72, 75, 85, 120 848×480@60Hz 1024×768 (XGA)@60, 75, 85, 120 ... - Page 17 INPUT RESOLUTION (2D SIGNAL) HDMI COMP 1792×1366@60, 75 1856×1392@60 1920×1080@60 1920×1200@60RB, 60, 75 1920×1440@60 720×480i/p 720×576i/p 720i/p@50, 60 1080i/p@50, 60 1080p@24 2048×1152@60RB 2560×1600@60RB ...
-
Page 18: Supported Output Resolutions
8.3 Supported Output Resolutions OUTPUT RESOLUTION (2D SIGNAL) 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1200RB, 480p, 720p, 1080p OUTPUT RESOLUTION (3D SIGNAL) Frame Packing 720p@50/60, 1080i@60, 1080p@24/30 Top-and-Bottom 720p@50/60, 1080i@60, 1080p@24/30 Side-by-Side 720p@50/60, 1080i@60, 1080p@24 Note: Some displays may not support 3D@50 Hz and therefore, some 3D 50Hz signal may not be displayed. - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121217 MPM-CS802D...
