Summary of Contents for CYP CP-300VD

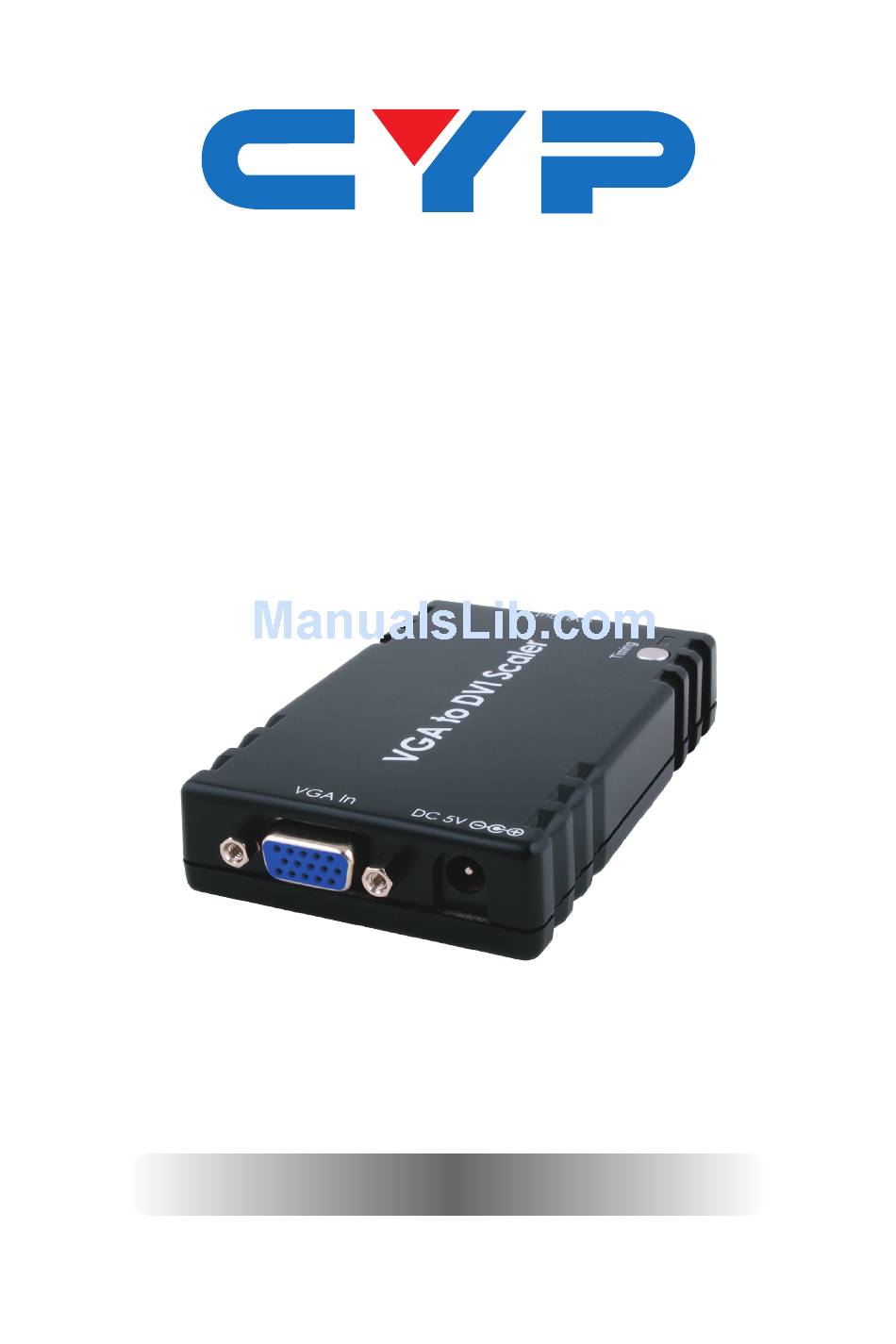

- Page 1 CP-300VD VGA to DVI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Top Panel ..........2 6.2 Left Panel ..........3 6.3 Right Panel ........3 6.4 OSD Table .........4 7. -
Page 6: Introduction
1. INTRODUCTION The VGA to DVI Scaler is designed to convert a VGA signal to DVI so that it can be displayed on a DVI monitor without loss of image quality. It can upscale VGA input sources to DVI output for a wide- range of PC resolutions, from VGA to WUXGA. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel VGA to DVI Scaler Timing Timing Button Press this button to switch the EDID setting for bypass, manual or native mode. The OSD will display both input and output resolutions on the top left of the output display. Please refer to Section 6.4 for details. -
Page 8: Left Panel
6.2 Left Panel VGA In Connect to a source device such as a PC or laptop with a VGA cable. DC 5V Connect the 5V DC power supply into the unit and plug the adaptor into an AC wall outlet. 6.3 Right Panel DVI Out Connect to a DVI display, monitor or larger video system. -
Page 9: Osd Table
6.4 OSD Table Output Refresh Rate (Hz) Input Input Refresh Manual Native Bypass Resolution Rate (Hz) Mode Mode Mode 640×350 640×400 640×480 60, 72, 75, 85 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 - 56, 60, 72, 75, 85 848×480 1024×768 60, 70, 75, 85... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC or Laptop VGA Input (15-pin D-Sub) Power Supply DVI Output DVI Monitor... -
Page 11: Specifications
8. SPECIFICATIONS Input Port 1×VGA Output Port 1×DVI Output Timings 640×480, 1280×720, 1280×800, 1366×768, 1920×1080, 1920×1200RB Power Supply 5 V DC / 1 A linear power adaptor (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
