STEP 2: ROUTE THE TEMPERATURE SENSOR
Route the temperature sensor #1 Cable through a grommet and bring the sensors to the face of the rack.
STEP 3: ATTACH THE SENSOR & LED INDICATOR TO THE RACK FACE

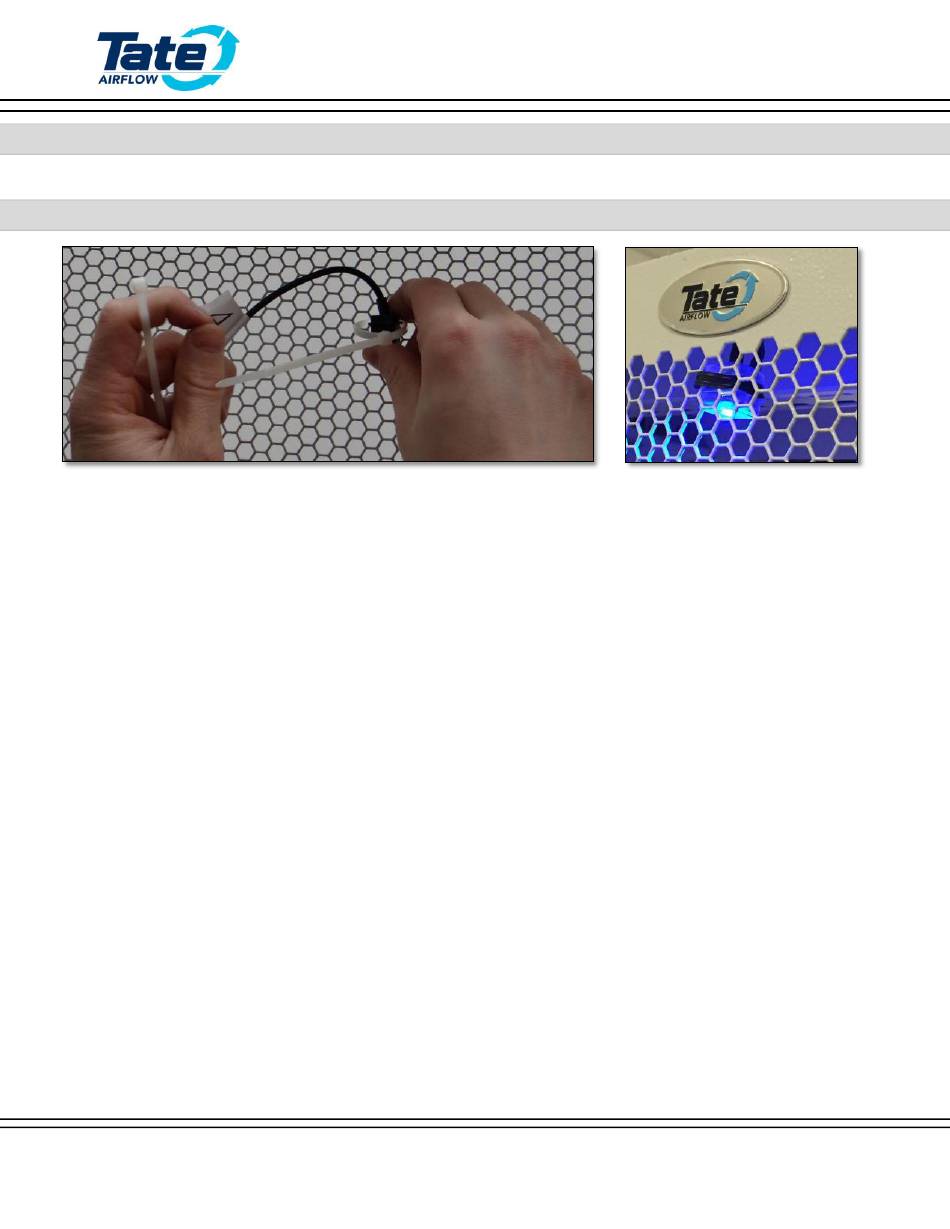

Mount the temperature sensor to the face of the rack. Zip ties can be used to assist in mounting the sensor.
The sensor face should be directed downward if possible, but the sensor will work in other configurations as
well. The LED indicator should be installed in a location that is visible to facility staff relative to the locations
of the rack/SmartAire which it is indicating the temperature of.
