User Installation Manual
®
SmartAire
MZ Basic
Connect the temperature indicating LED and run LED to position that is adequately visible such as above the
rack or attached to the front face of the rack. The LED will change colors as the temperature varies as well as
indicate any potential alarms.

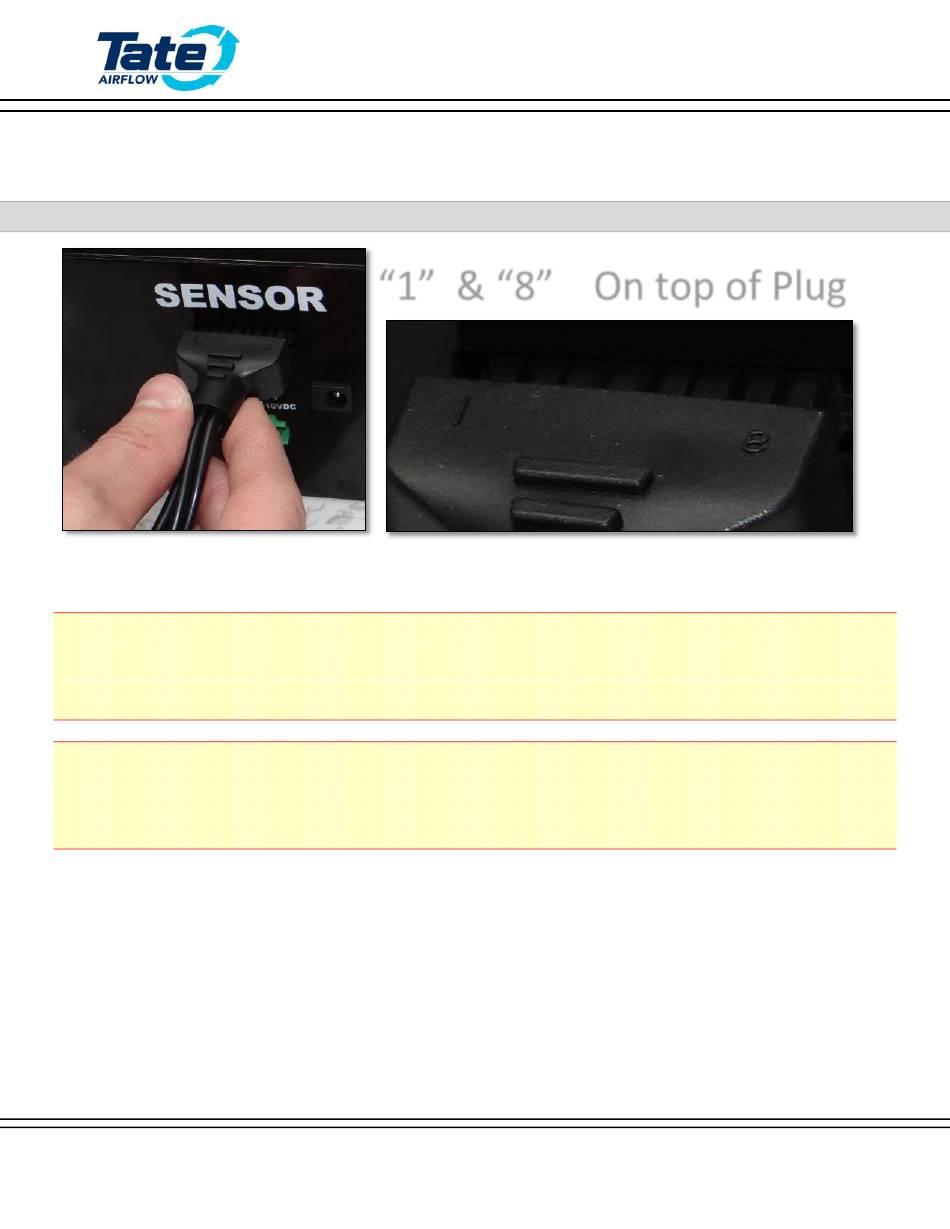

STEP 6: CONNECT THE TREE TO THE SMARTAIRE® MZ
"1" & "8" On top of Plug
Though the hole in the floor where the SmartAire is to be installed, Connect the temperature tree into the
"SENSOR PORT". The Sensor will only connect in one orientation, with "1" And "8" on the top of the plug.
NOTE: WHEN DISCONNECTING THE PLUG THERE IS A SMALL PUSH BUTTON
RELEASE ON THE BOTTOM OF THE CONNECTOR WHICH WILL ALLOW IT TO
DISCONNECT. EXCESSIVE FORCE MAY DAMAGE THE CABLE OR CONNECTOR.
NOTE: POUR DÉBRANCHER LA FISHE, IL Y A UN PETIE BOUTON POUSSOIR SUR LE
BAS DU CONNECTEUR QUI LUI PERMETTERA DE SE DÉCONNECTER. UNE FORCE
EXCESSIVE PEUT ENDOMMAGER LE CÂBLE OU CONNECTEUR
7510 Montevideo Road
r1.0-12/11/15
© 2015 Tate Access Floors, Inc.
Jessup, MD 20794
SmartAire_mzb_Installation.docx
Tel (410)799-4200
10 of 27
