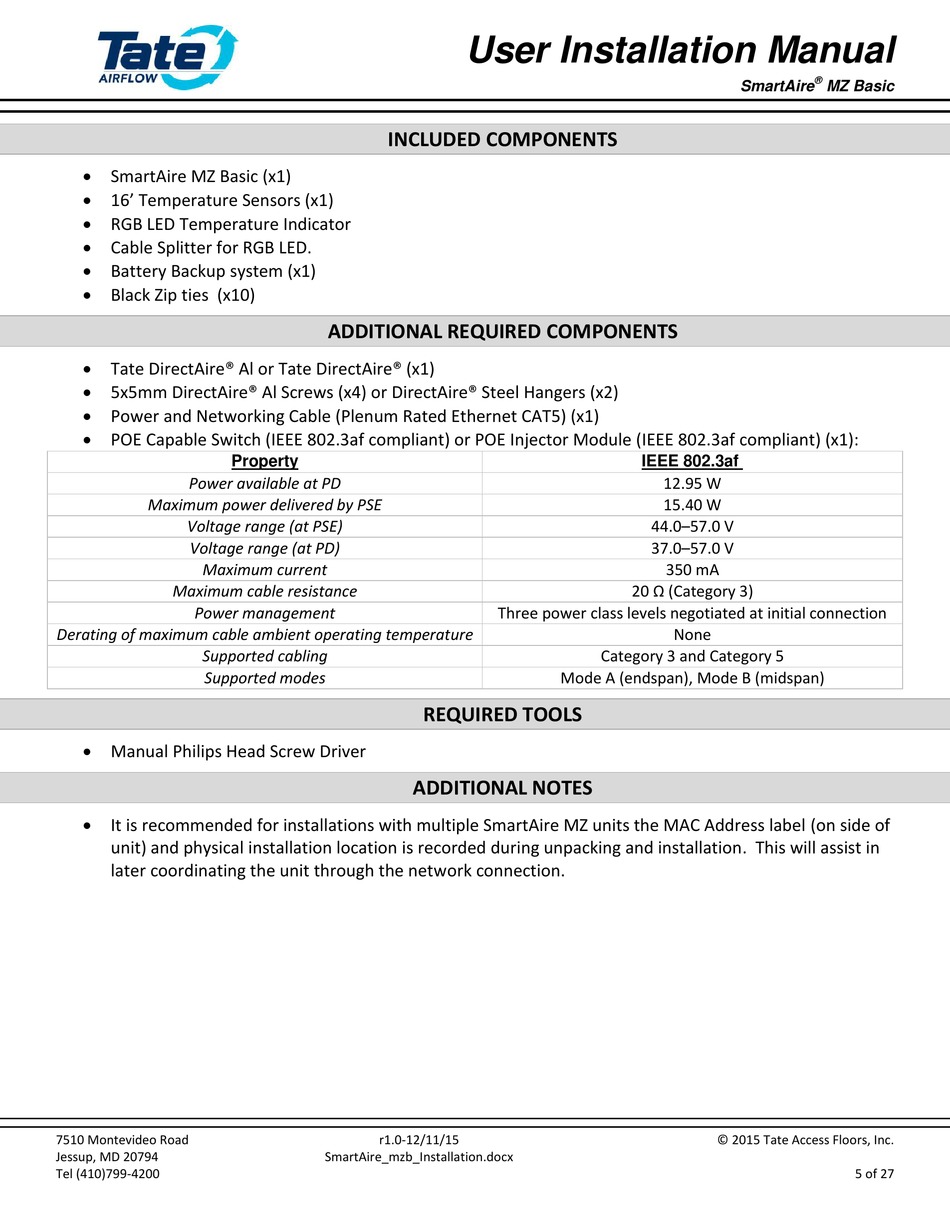

Included Components; Additional Required Components; Required Tools; Additional Notes - Tate SmartAire MZ Basic User & Installation Manual

 SmartAire MZ Basic (x1)
 16' Temperature Sensors (x1)
 RGB LED Temperature Indicator
 Cable Splitter for RGB LED.
 Battery Backup system (x1)
 Black Zip ties (x10)
 Tate DirectAire® Al or Tate DirectAire® (x1)
 5x5mm DirectAire® Al Screws (x4) or DirectAire® Steel Hangers (x2)
 Power and Networking Cable (Plenum Rated Ethernet CAT5) (x1)
 POE Capable Switch (IEEE 802.3af compliant) or POE Injector Module (IEEE 802.3af compliant) (x1):
Property
Power available at PD
Maximum power delivered by PSE
Voltage range (at PSE)
Voltage range (at PD)
Maximum current
Maximum cable resistance
Power management
Derating of maximum cable ambient operating temperature
Supported cabling
Supported modes
 Manual Philips Head Screw Driver
 It is recommended for installations with multiple SmartAire MZ units the MAC Address label (on side of
unit) and physical installation location is recorded during unpacking and installation. This will assist in
later coordinating the unit through the network connection.
