STEP 10: ASSEMBLE THE SMARTAIRE® WITH THE DIRECTAIRE® AL

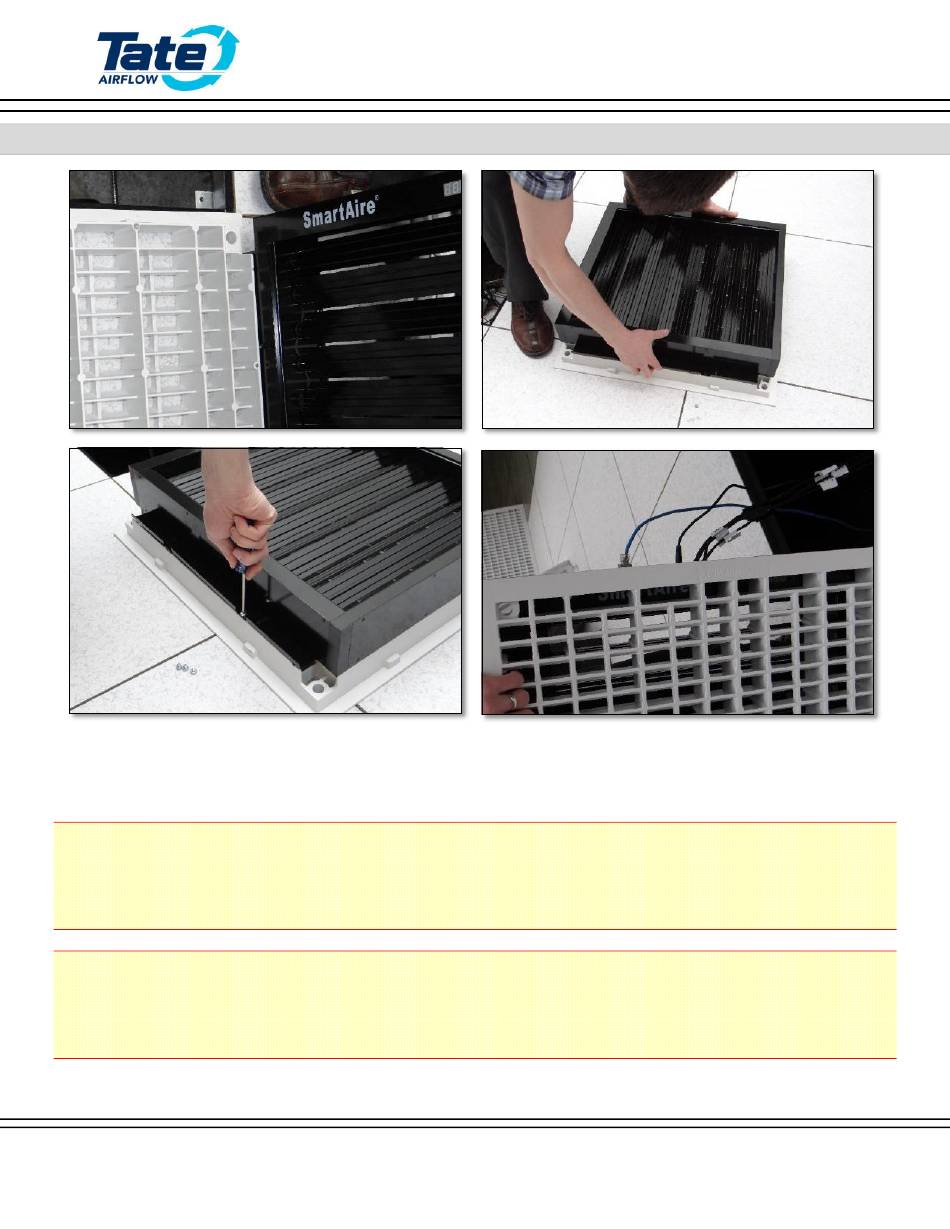

Flip the SmartAire® MZ and align the mounting holes with the holes on the bottom of the DirectAire® Al. The
display should be mounted in the orientation that it fits on the edge meant to go "Towards" the rack it is
cooling. Hand Screw in the four 5mmx 5mm Screws. Confirm SmartAire® MZ is mounted to DirectAire® Al.
UNIT MUST BE INSTALLED IN ORIENTATION WITH DISPLAY MOUNTED
"TOWARDS RACK" ANY OTHER ORIENTATION MAY DAMAGE EQUIPMENT OR
CAUSE FAILURE.
L'APPAREIL DOIT ÊTRE INSTALLÉ DANS L'ORIENTTATION AVEC L'AFFICHAGE
MONTÉ "TOWARDS BACK", AVEC TOUTES AUTRE ORIENTATION PEUVENT
ENDOMMAGER L'ÉQUIPMENT OU PROVOVQUER UNE PANNE
