Interface; Changing Modes; Regional Unit Conversion; Disabling Unoccupied Zones - Tate SmartAire MZ Basic User & Installation Manual

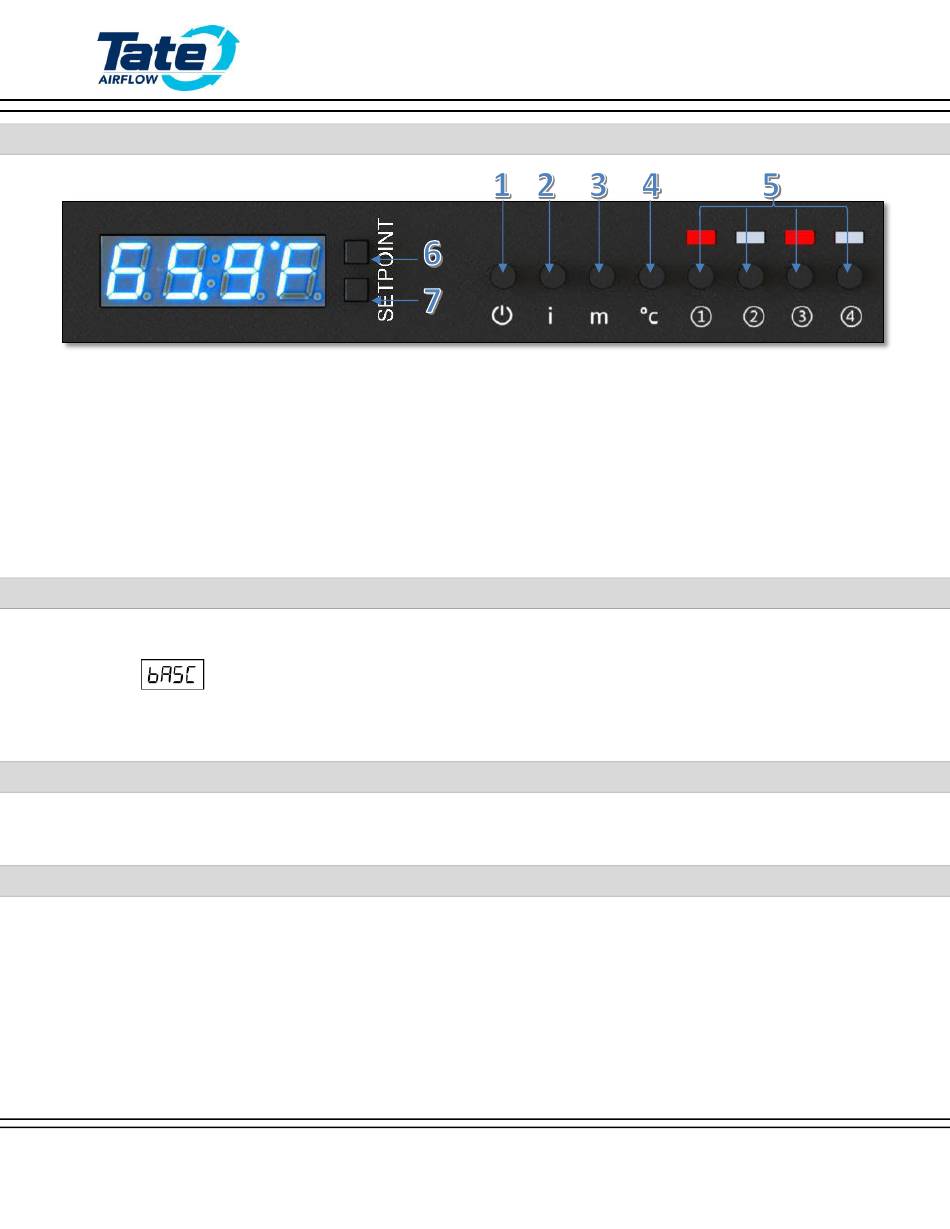

The SmartAire® MZ Basic interface Consists of 10 buttons, each button is accessible through an access floor panel with
the use of the eraser end of a pencil, press each button lightly to activate:
1. Power: With power connected, unit will power up immediately.
a. To power the unit off, hold the power button for 5 seconds and the unit will open all zones and power
down.
b. Press the power button again to reactivate unit.
2. Information: Press the information button to scroll through relevant monitoring information such as:
a. Current mode, and current position all dampers.
3. Mode: This button is disabled on the SmartAire Basic
Basic Mode: Basic Mode is designed to only allow the SmartAire to operate as an adjustable
damper. Once placed into basic mode, the unit is restricted to changing positions by pressing the up and
down buttons in 5% positional increments.
4. Unit conversion button (°C): Pressing this button once will convert the interface to Celsius. Pressing the button
once more will convert the unit back into Fahrenheit.
5. Zone Disabling Buttons: Each button corresponds to a zone on the unit that can be disabled at the touch of the
button, this causes the unit to move to the 0% Open position until pressed once again. The LED will remain lit to
indicate that this zone is disabled until turned back on. This function is ideal in partially loaded racks, where the
top airflow zones can be disabled to increase energy efficiency in the system.
7510 Montevideo Road
Jessup, MD 20794
Tel (410)799-4200
User Installation Manual

INTERFACE

CHANGING MODES

REGIONAL UNIT CONVERSION

DISABLING UNOCCUPIED ZONES
