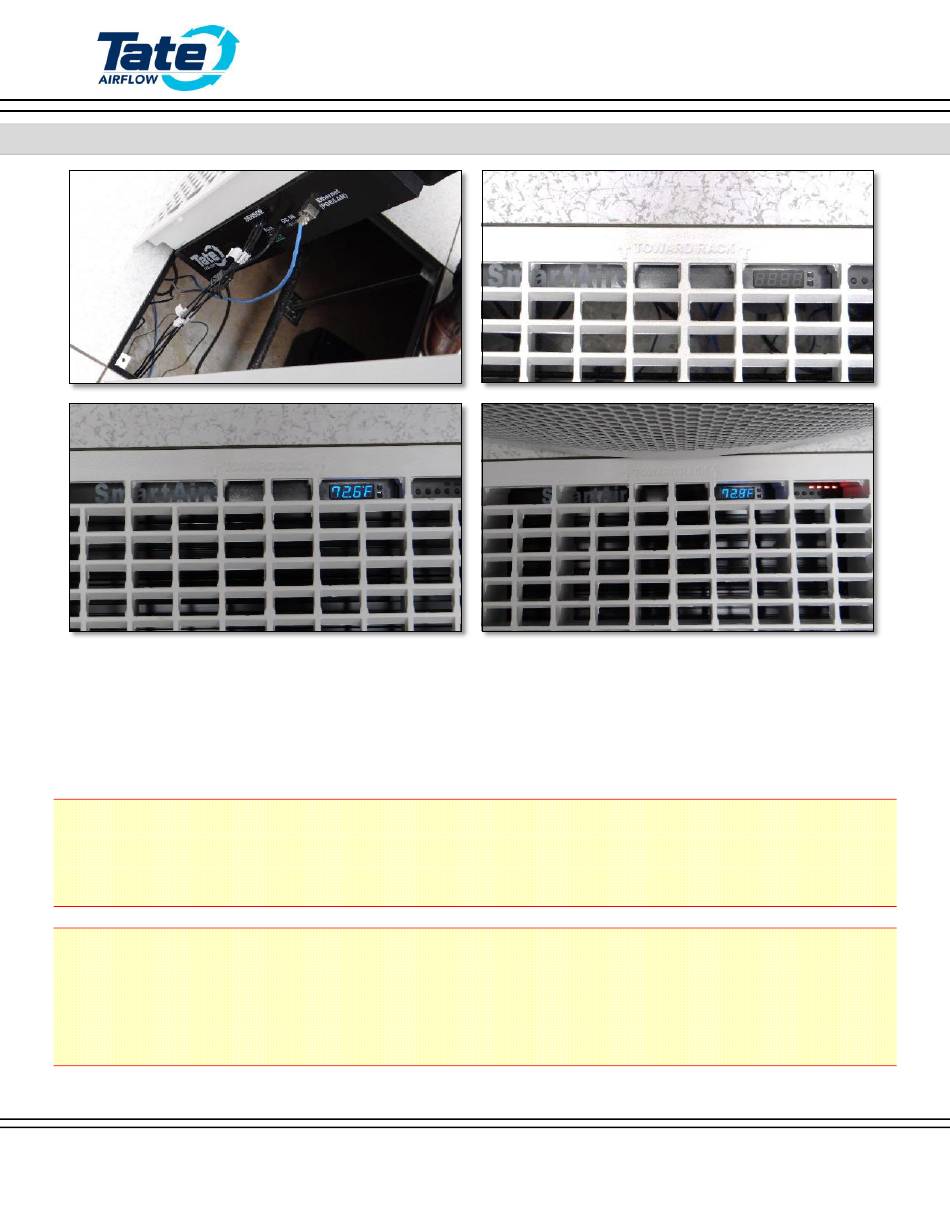

STEP 11: PLACE THE ASSEMBLY INTO THE FLOOR

Place the SmartAire / DirectAire Al Assembly vertically into the floor opening at the face of the rack. Be sure
to install in the correct orientation "Towards" the rack
For SmartAire/DirectAire Place the DirectAire panel directly on top of the preinstalled SmartAire MZ on
hangers. The DirectAire should rest just above the SmartAire and not apply any force to the SmartAire. If this
is not the case please contact Tate for assistance, you may have non-standard understructure.
IF UNIT IS BEING REMOVED FOR SERVICE OR RELOCATION, TAKE CAUTION TO
NOT CATCH CABLES OR HARDWARE ON ACCESS FLOOR UNDERSTRUCTURE AS IT
MAY DAMAGE CABLES OR HARDWARE.
SI L'UNITÉ EST RETIRÉE POUR UN SERVICE OU DÉPLACEMTENT, PRENEZ GARDE À
NE PAS ATTRAPER LES CABLES OU L'EQUIPMENT SUR LA SOUS-STRUCTURE DU
PLANCHER SURÉLÉVER POUR ÇELLA PEUT ENDOMMAGER LES CABLES OU
L'EQUIPMENT.
