Hardware setup

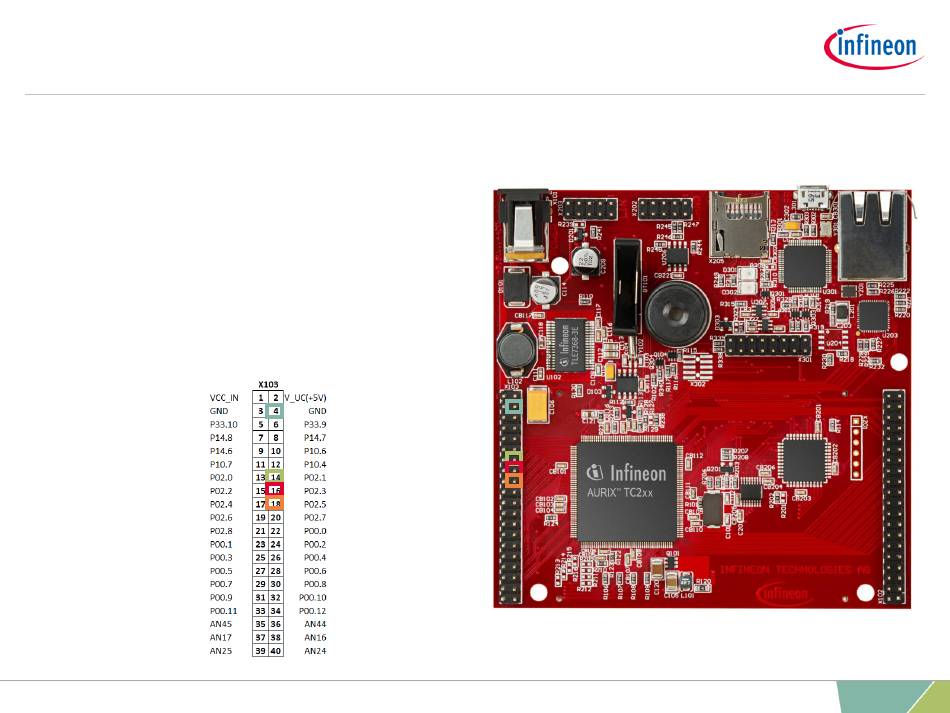

This code example has been
developed for the board
KIT_AURIX_TC297_TFT_BC-Step.
Three oscilloscope probes are
needed to observe the generated
PWM signals. These need to be
connected to the three output port
pins.
2019-10-17
Ground
Channel 1
Channel 2
Channel 3
