Hardware setup

This code example has been
developed for the board

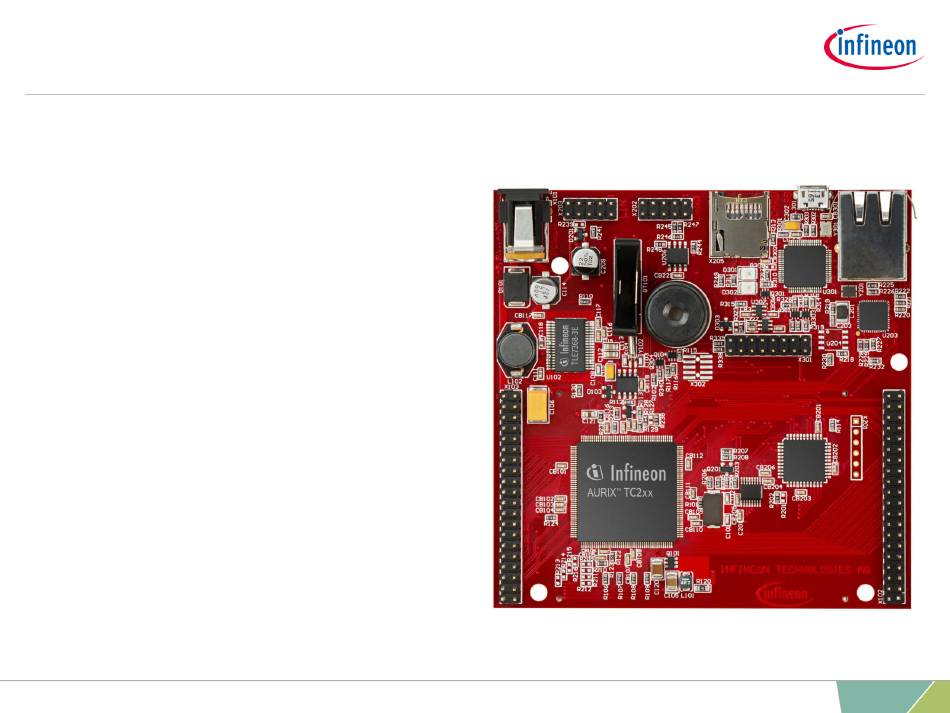

KIT_AURIX_TC297_TFT_BC-Step
The MCP79411 chip is mounted on
2
the board and connected via the I
C
bus to the microcontroller.
The used data lines are connected to
the positive power supply via two
pull-up resistors.
The MCP79411 is a battery-backed
I2C Real-Time Clock/Calendar
(RTCC) device with SRAM,
EEPROM and protected EEPROM.
