Run and Test

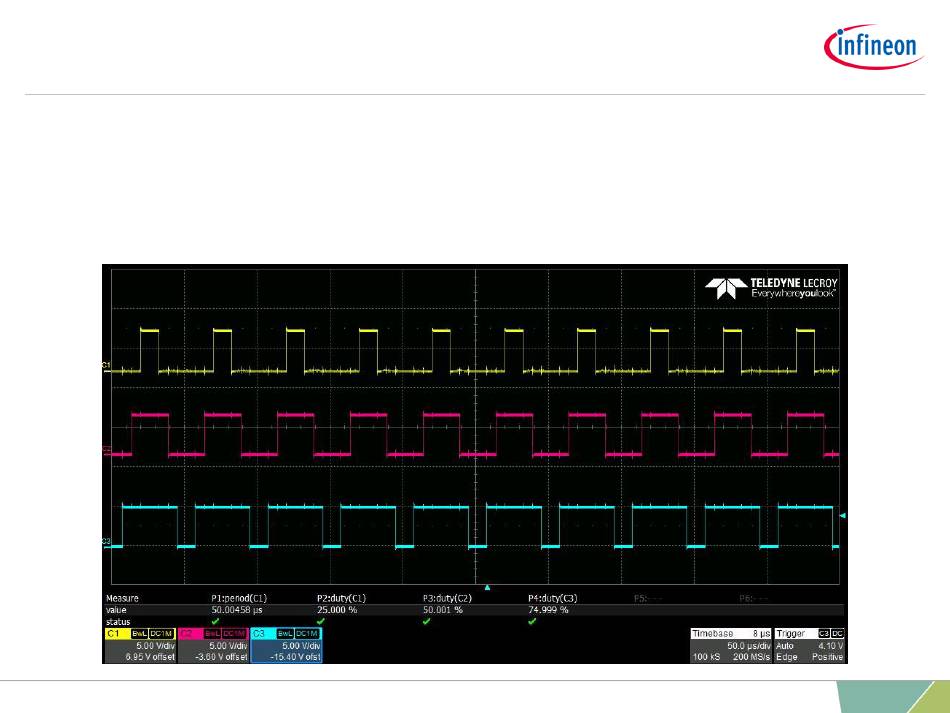

After code compilation and flashing the device, observe the oscilloscope
screen.
Three center-aligned PWM signals can be observed, with the configured
duty cycles and a period of 50 us each.
11
2019-10-17
