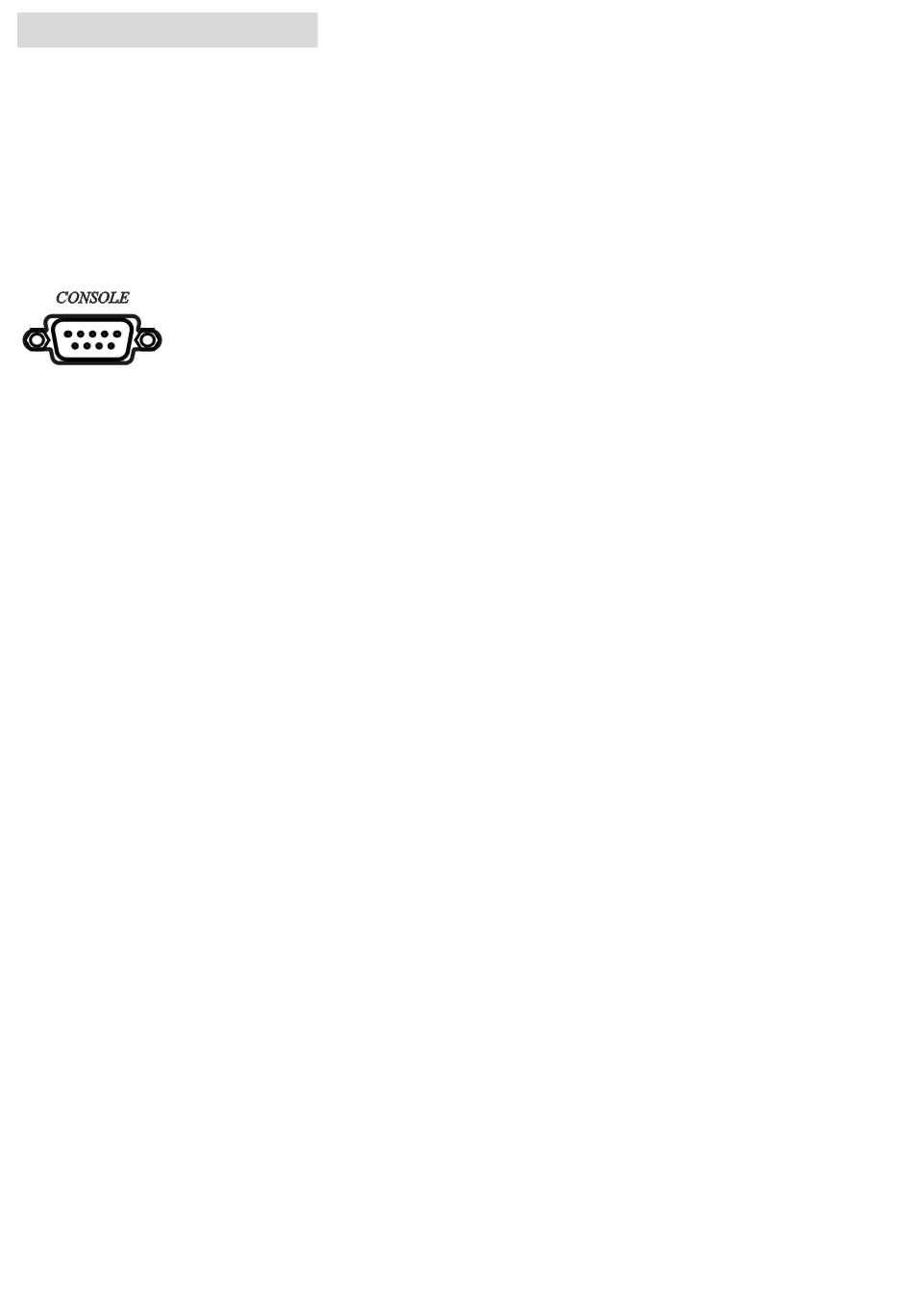

CONSOLE Function：

1. Firmware updated.

2. RS232 Serial Remote Control function as below:

Connect the RS232 CONSOLE port to the COM port of the host by an RS232 straight cable

(pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5)

Communication format is 115200, 8, N, 1 (115200 bps, 8 data bits, none parity check, 1

stop bit)

Command Mode Instruction:

[COMMAND]

--------------------------------------------------------------------------------------------------------------

MODE m

SWITCHER

SWITCHER c

TIME t

AUDIO

AUDIO a

IR i

SAVE n

LOAD n

DEFAULT

[DESCRIPTION]

Select Mode.

Enable/Disable Switcher Mode.

Add/Delete "Video Source" for Switcher Mode

Switcher Time.

Enable/Disable Audio Mode.

Select Audio.

IR Remote ID setting

Save Scene.

Load Scene setting.

Reset to Default.
