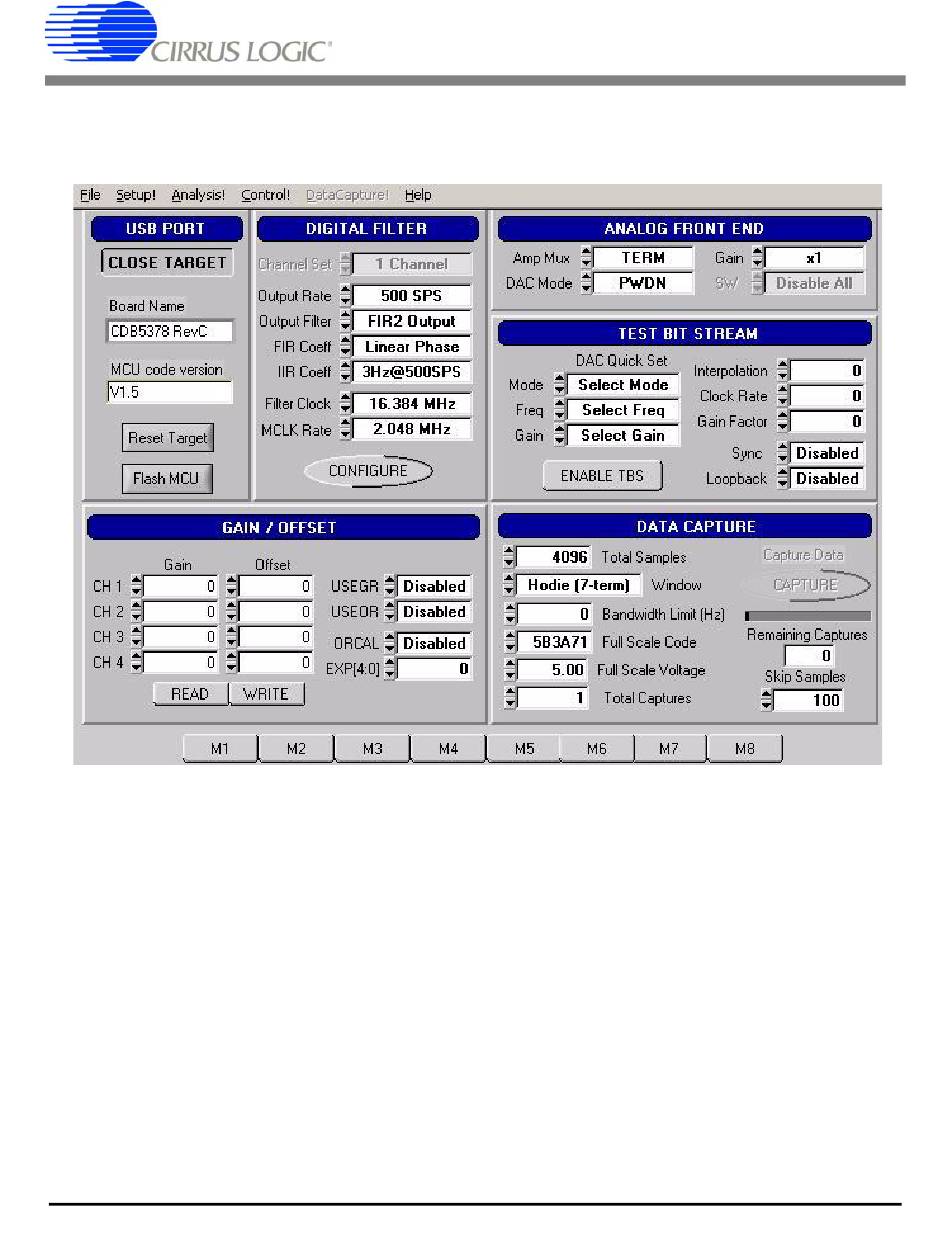

Setup Panel
The Setup panel initializes the evaluation system to perform data acquisition. It consists of the following
sub-panels and controls.
• USB Port
• Digital Filter
• Analog Front End
• Test Bit Stream
• Gain/Offset
• Data Capture
• External Macros
DS639DB4
CDB5378
39
