2. HARDWARE DESCRIPTION
2.1
Block Diagram
Major blocks of the CDB5378 evaluation board include:
• CS3301A Geophone Amplifier
• CS5373A ∆Σ Modulator + Test DAC
• CS5378 Digital Filter + PLL
• Precision Voltage Reference
• Interface CPLD
• Microcontroller with USB
• RS-485 Transceivers
• Voltage Regulators
DS639DB4

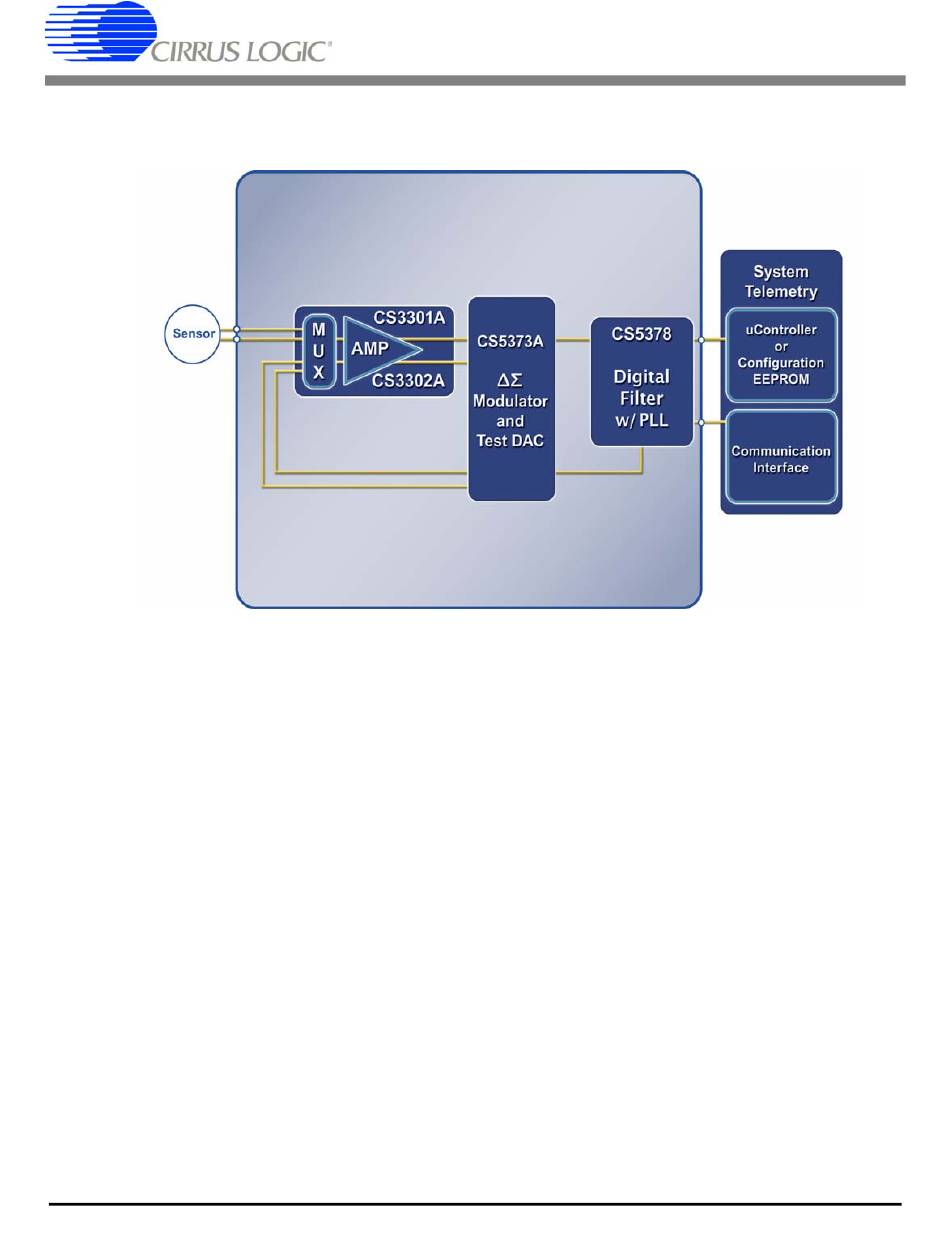

Figure 1. CDB5378 Block Diagram
CDB5378
