modulator is a 4-wire INR+, INF+, INF-, INR- quad group, and is routed with INF+ and INF- as a traditional
differential pair and INR+ and INR- as guard traces outside the respective INF+ and INF- traces.
INR+
INF+
INF-
INR-
2.5.3

Bypass Capacitors

Each device power supply pin includes 0.1 µF bypass capacitors placed as close as possible to the pin
on the back side of the PCB. Each power supply net includes at least 100 µF bulk capacitance as a charge
well for transient current loads.
DS639DB4

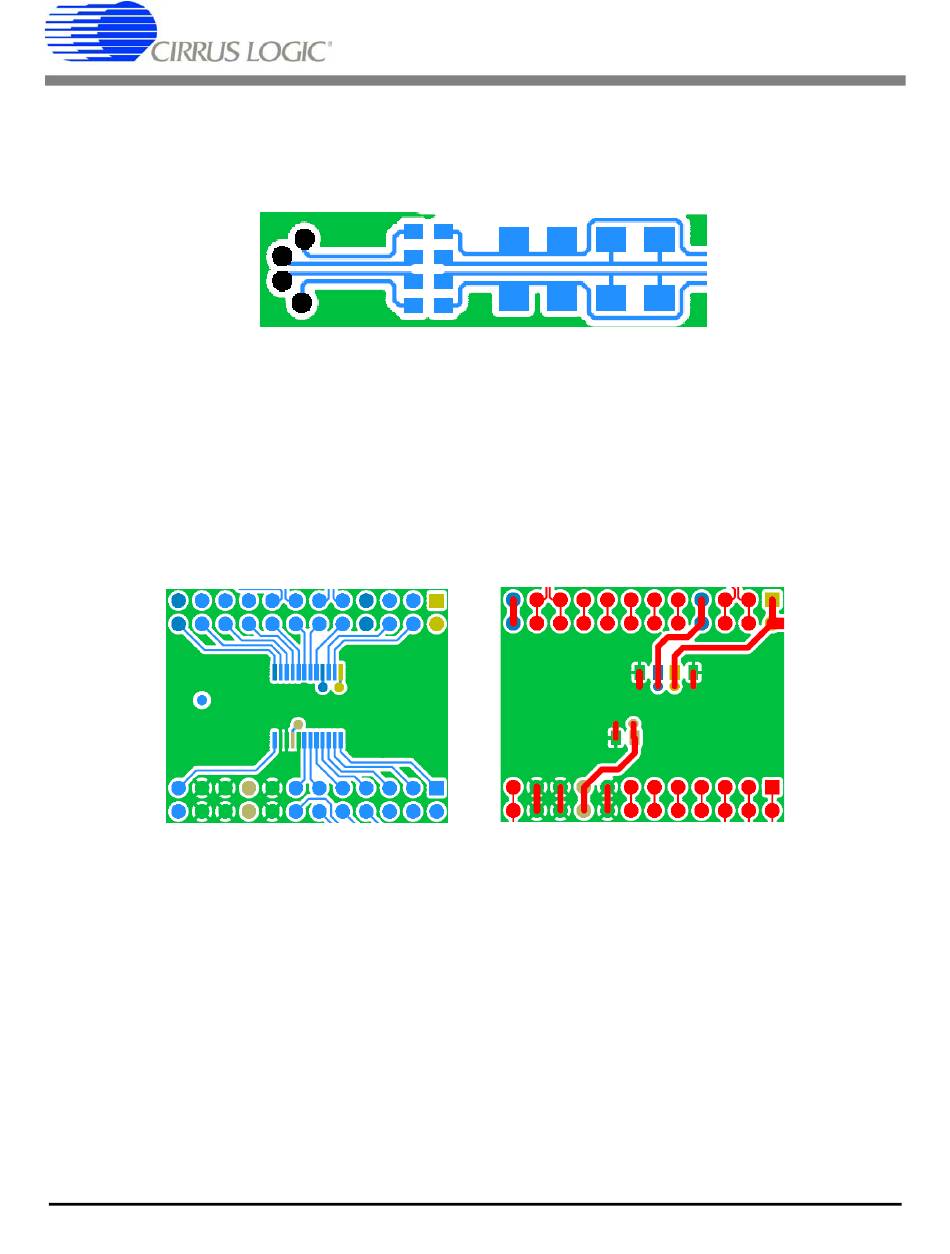

Figure 5. Quad Group Routing

TOP

Figure 6. Bypass Capacitor Placement

INR+
INF+
INF-
INR-
BOTTOM
CDB5378
35
