TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual

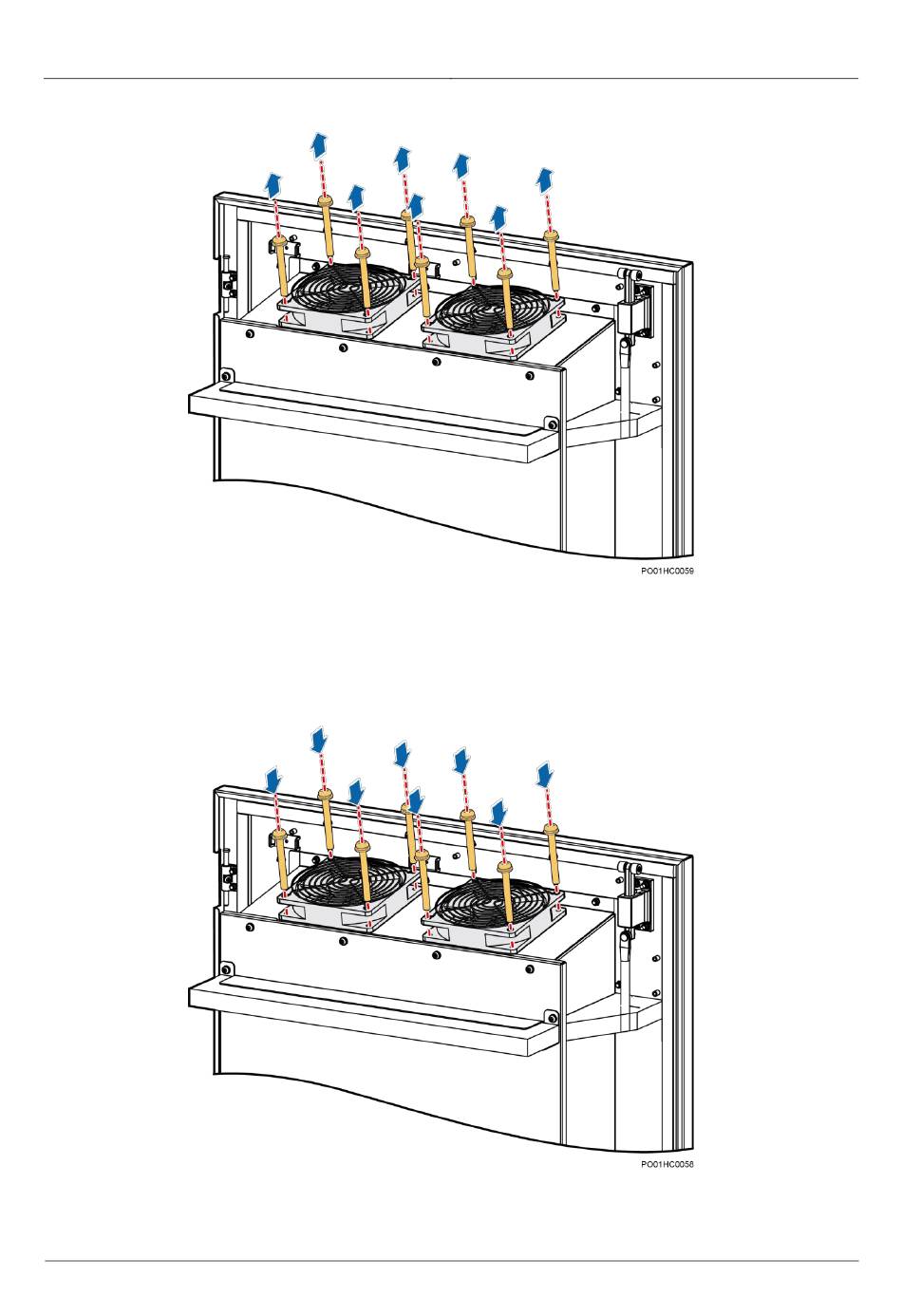

Figure 4-14 Removing an internal circulation fan
Step 5 Place the new fan based on the recorded installation direction (the arrow mark on the fan),
place the fan cover, and tighten the screws, as shown in
Figure 4-15 Installing an internal circulation fan
Issue 03 (2020-01-04)
Copyright © Huawei Technologies Co., Ltd.
4 Maintenance
Figure
4-15.
61
