TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual

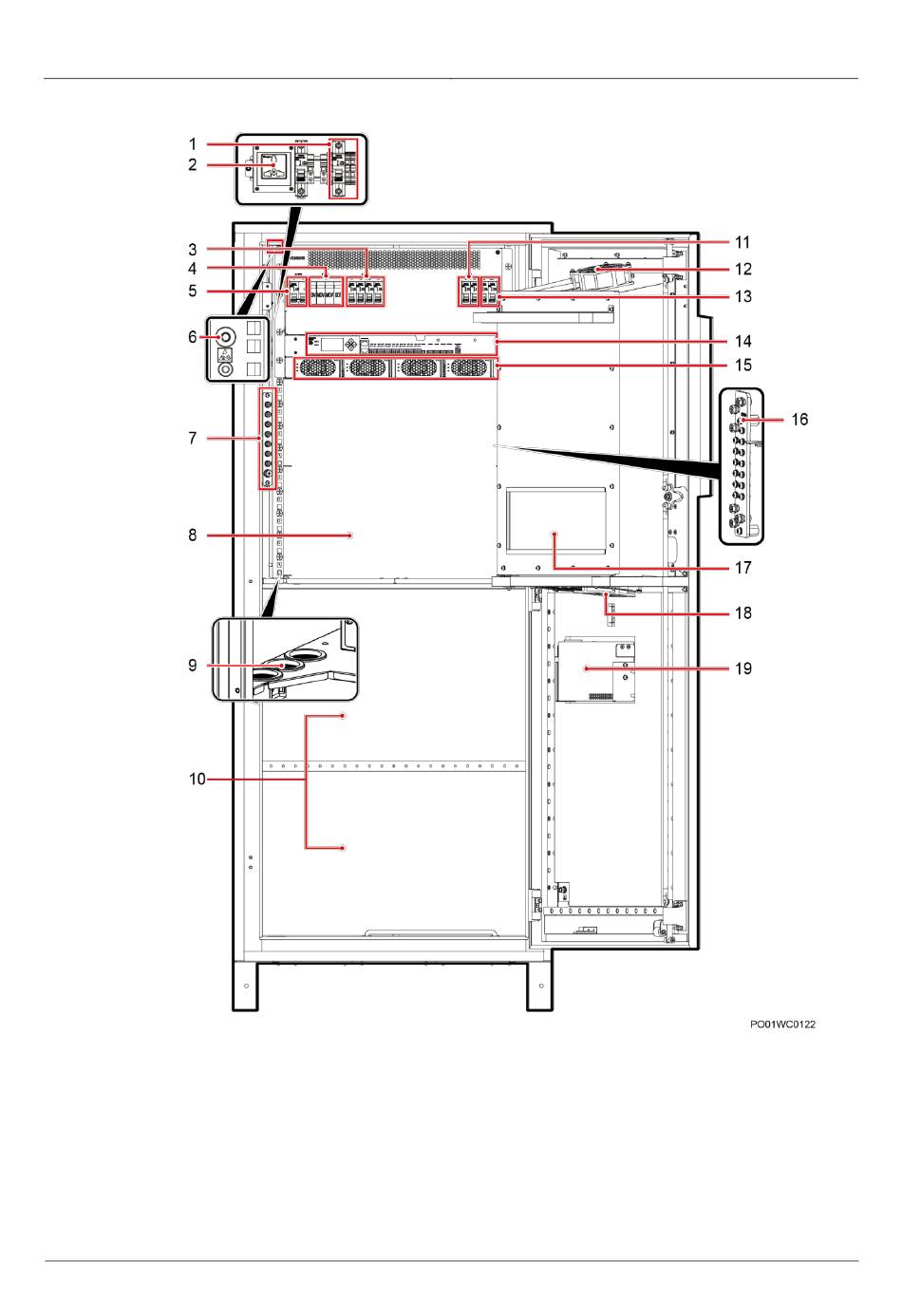

Figure 3-2 TP48120A-HD15A2 interior
(1) AC output circuit
breakers and terminals
(4) AC surge
protective device
(SPD)
Issue 03 (2020-01-04)
(2) Maintenance socket
(5) AC input circuit breakers
Copyright © Huawei Technologies Co., Ltd.
3 Components
(3) Load low voltage
disconnection (LLVD) circuit
breakers
(6) ESD wrist strap
22
