TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual
Procedure
Step 1 Connect the ground cable for the ESD wrist strap, and put on the ESD wrist strap and ESD
gloves.
Step 2 Remove the battery temperature sensor cable from the UIM, as shown in

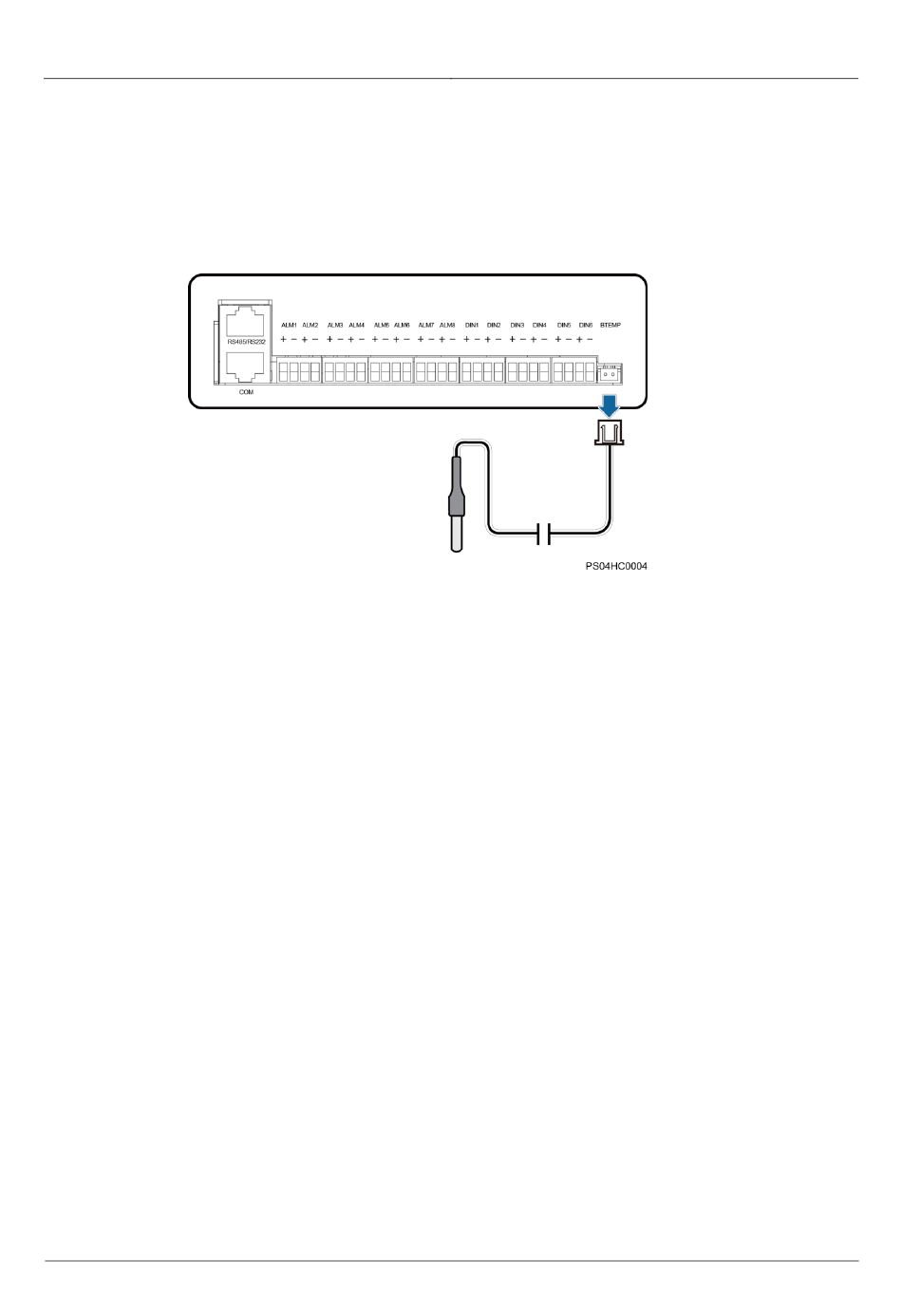

Figure 4-20 Removing the battery temperature sensor cable
Step 3 Cut off the cable tie of the battery temperature sensor and remove the sensor.
Issue 03 (2020-01-04)
Copyright © Huawei Technologies Co., Ltd.
4 Maintenance
Figure
4-20.
66
