TP48120A-HD15A1, TP48120A-HD15A2,
TP48200A-HD15A1, and TP48200A-HD15A2 Telecom
Power
User Manual

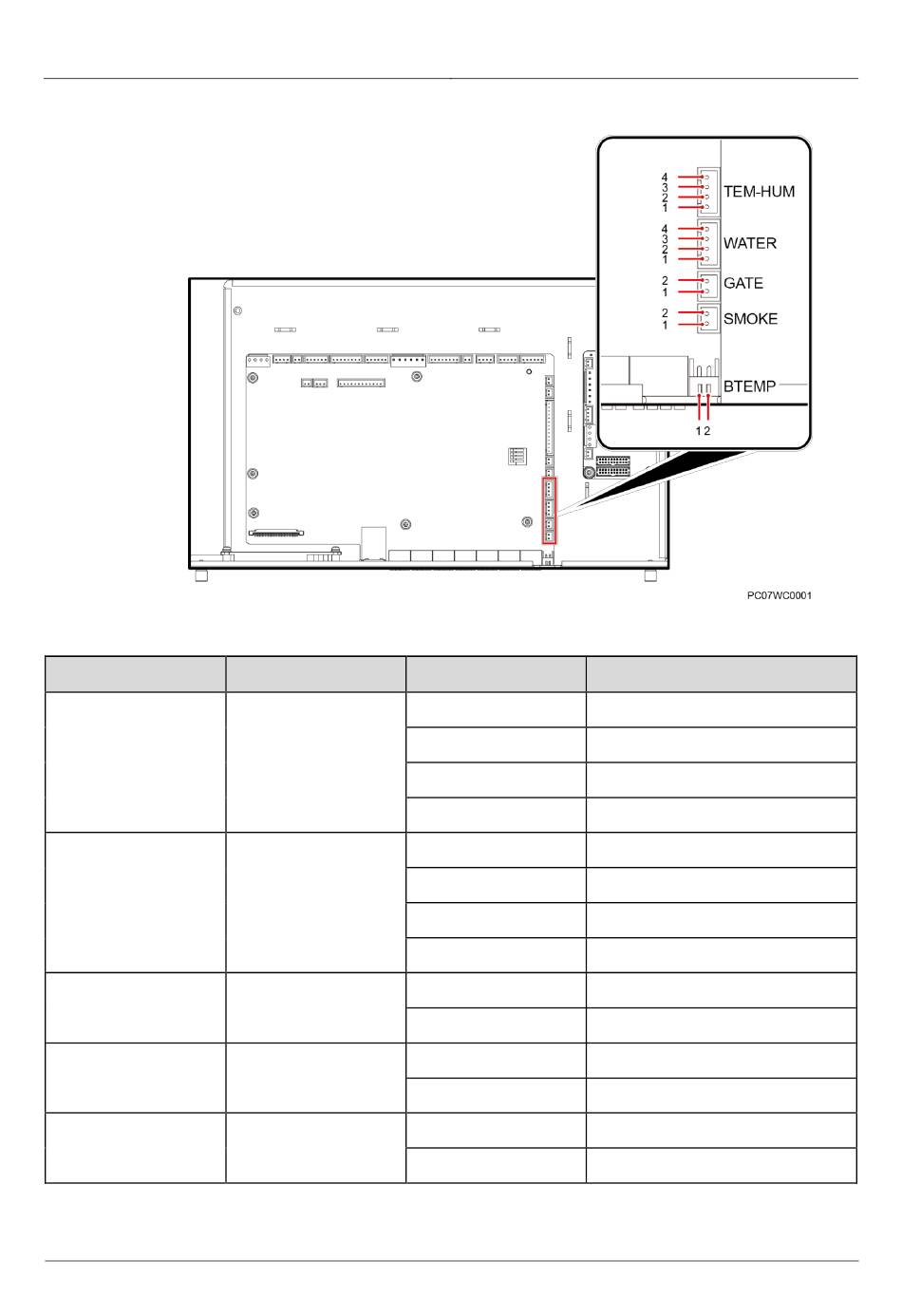

Figure 3-9 Sensors Ports
Table 3-8 Sensors ports description
Silk Screen
TEM-HUM
WATER
GATE
SMOKE
BTEMP
Issue 03 (2020-01-04)
Description
Ambient temperature
and humidity sensor
Water sensor
Door status sensor
Smoke sensor
Battery temperature
sensor
Copyright © Huawei Technologies Co., Ltd.
No.
1
2
3
4
1
2
3
4
1
2
1
2
1
2
3 Components
Pin Definition
12V
ENV_TEMP
12V
ENV_HUM
12V
WATER
GND
-
GATE+
GATE-
SMOKE
12V
BTEMP1
GND
33
