Summary of Contents for Taiden HCS-4393G2

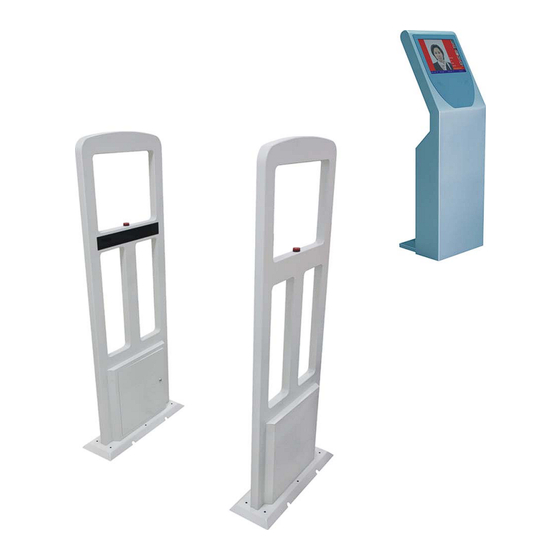

- Page 1 Conference Sign-in System Conference Sign-in System Installation and Operating Manual V 1.1...
- Page 2 The equipment must be connected to earth! This product conforms to the rules of the European directive 2004/108/EC. If any detailed information needed, please contact your local agent or TAIDEN Service Center. Any feedback, advice and suggestion about the products is appreciated...
- Page 3 Service Center. Follow all instructions. Do not use this apparatus near water. 18. All TAIDEN products are guaranteed for definite time Clean only with dry cloth. (see the WARRANTY CARD for details) excluding the Do not block any ventilation openings. Install in following cases: accordance with the manufacturer’s instructions.
- Page 4 Important Safety Instruction The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: To reduce the risk of fire or electric shock, DO NOT expose units to rain or moisture.
-
Page 5: Table Of Contents
Content Installation & User Guide......................V Chapter 1: Contactless Conference Sign-in Machine..............1 1.1 Overview ................................1 1.2 Installation and connection ..........................2 1.2.1 Direction of the passage..............................2 1.2.2 Cabinet interface .................................2 1.2.3 Connection ..................................2 1.3 FAQ...................................3 1.4 Matters need attention ............................4 1.5 Troubleshooting ..............................6 Chapter 2: Sign-in Information Display Screen................7 2.1 Overview ................................7 2.2 Connection................................8... -
Page 6: Installation & User Guide
Installation & User Guide About this manual This manual is applicable to: This manual is a comprehensive guide for TAIDEN Contactless Conference Sign-in Machine Conference Sign-in System, mainly includes functions HCS-4393G2 Contactless Conference Sign-in Machine and interface descriptions of Contactless Conference... -
Page 7: Chapter 1: Contactless Conference Sign-In Machine
Chapter 1: Contactless Conference Sign-in Machine 1.1 Overview Contactless Conference Sign-in Machine HCS-4393G2 Specifications: (hereinafter referred to as "sign-in machine") is a high Working 13.56 MHz ± 7 KHz performance electronic tag read/write device, it can frequency read/write all popular electronic tags which support... -
Page 8: Installation And Connection
1.2 Installation and connection 1.2.1 Direction of the passage 1.2.3 Connection 1. RS-232 cable Connect aviation plug of RS-232 cable to 5-cord aviation connector ① of the major antenna, and DB-9 connector of RS-232 cable to COM port of PC. 2. -
Page 9: Faq
1.3 FAQ 1. Direct judgement is not accurate in bi-directional 4. It will alarm when quickly reentry after pass access through When IR function is enabled, only one direction should Passage filters tags when detecting, how long does be accessed at one time and avoid bi-directional filtering take is decided by "tag filtering time". -
Page 10: Matters Need Attention
1.4 Matters need attention The distance between antenna and computer Prior to the start of the meeting, meeting should be larger than 140 cm, otherwise he/she manager should be informed to keep order, may miss his/her information when passes participants passing through passage... - Page 11 Note: The IC card should be keep 50 cm - 160cm high from the ground; The IC card should NOT be kept parallel to the ground; The IC card should NOT be fully placed together with metal items, such as key, cigarette case, mobile phone, mobile hard disk, etc.
-
Page 12: Troubleshooting
1.5 Troubleshooting Fault symptom Fault cause 1. Communication is abnormal. 1. Using non-cross serial cable; 2. Error serial port bit rate or error parameters, default value is 38400 bps with 8 data bits, 1 stop bit, and no parity check; 3. -
Page 13: Chapter 2: Sign-In Information Display Screen
Chapter 2: Sign-in Information Display Screen 2.1 Overview TAIDEN sign-in information display screen adopts integrated cabinet, based on touch devices for ease of Specifications: use and intuitive, abandoned complicated operation of Type Resistance screen traditional mouse and keyboard, the user does not Resolution 4096×4096... -
Page 14: Connection
2.2 Connection 2.3 Operation There are 8 cables inside the cabinet: 1．Power on Power on by pressing the red switch on the right side. Press the green button on the left side to start-up sign-in information display screen. Connect all cables to computer and put the computer 2．Mouse and keyboard into cabinet. -
Page 15: Touch Screen Driver Installation And Calibration Instruction
2.4 Touch Screen Driver Installation and Calibration Instruction 2.4.1 Touch Screen Driver Installation 2. Click "next" to install to local folder or you can Connected host, plug in the power, press the switch, change to install to a different folder. Then, choose double-click the touch screen driver installation the setup type that best suits your needs;... -
Page 16: Touch Screen Calibration
5. After installation, it will create the desktop and start menu shortcuts. 2.4.2 Touch Screen Calibration Start touch screen driver “TouchScreenSetup” to calibrate. 1. Setup operation language: English or Chinese; 2. Select serial port in serial device manager; 3. Set up calibration in setup menu, default is ok for general user;... -
Page 17: Troubleshooting And Notes
2.5 Troubleshooting and notes 1. Touch monitor touch calibration 7. Click is not the same position of your fingers Install the driver after the computer restarts, click on the touching desktop “TouchScreenSetup” icon or click “Start” - Whether the incorrect calibration, re-calibration, “program”... -
Page 18: Chapter 3: Contactless Ic-Card Encoder And Long-Distance Contactless Ic-Card
2. This Encoder is equipped with USB cable and can be connected with computer; 3. Install TAIDEN conference application in the computer and run it. All ISO 15693 standard defined functions can be realized. - Page 19 TAIDEN INDUSTRIAL CO.,LTD. Copyright by TAIDEN Last Revision: 01/2013...
