This parameter sets the memory region for Save/Recall operation. The non-volatile memory
location is divided to three regions: Grp1, Grp2 and Grp3.Each group can save nine
different setups. User can save up to 27 different setups to assigned location.
COUP
This parameter configures the connection mode of CH1 and CH2.Corresponding setup in
the menu includes Off, Ser, Par.
IT6302 only supports to set Serial/Parallel mode for CH1 and CH2 in menu operation.
When set Serial/Parallel mode, VFD will have corresponding symbols at the position of
CH2.In this mode, user only need to set the total current on one channel, the power supply
can distribute the current to the two channels automatically.
If having no COUP set in the menu, then all 3 channels can be connected in Serial or
Parallel mode in hardware. Under this condition, the output of all 3 channels should be set
separately.
Off (release Serial/Parallel setup of CH1 and CH2)
This parameter releases the Serial/Parallel setup of CH1 and CH2, then press
will display "OFF SUCC".
The default setup is Off. In this mode, 3 channels output individually.

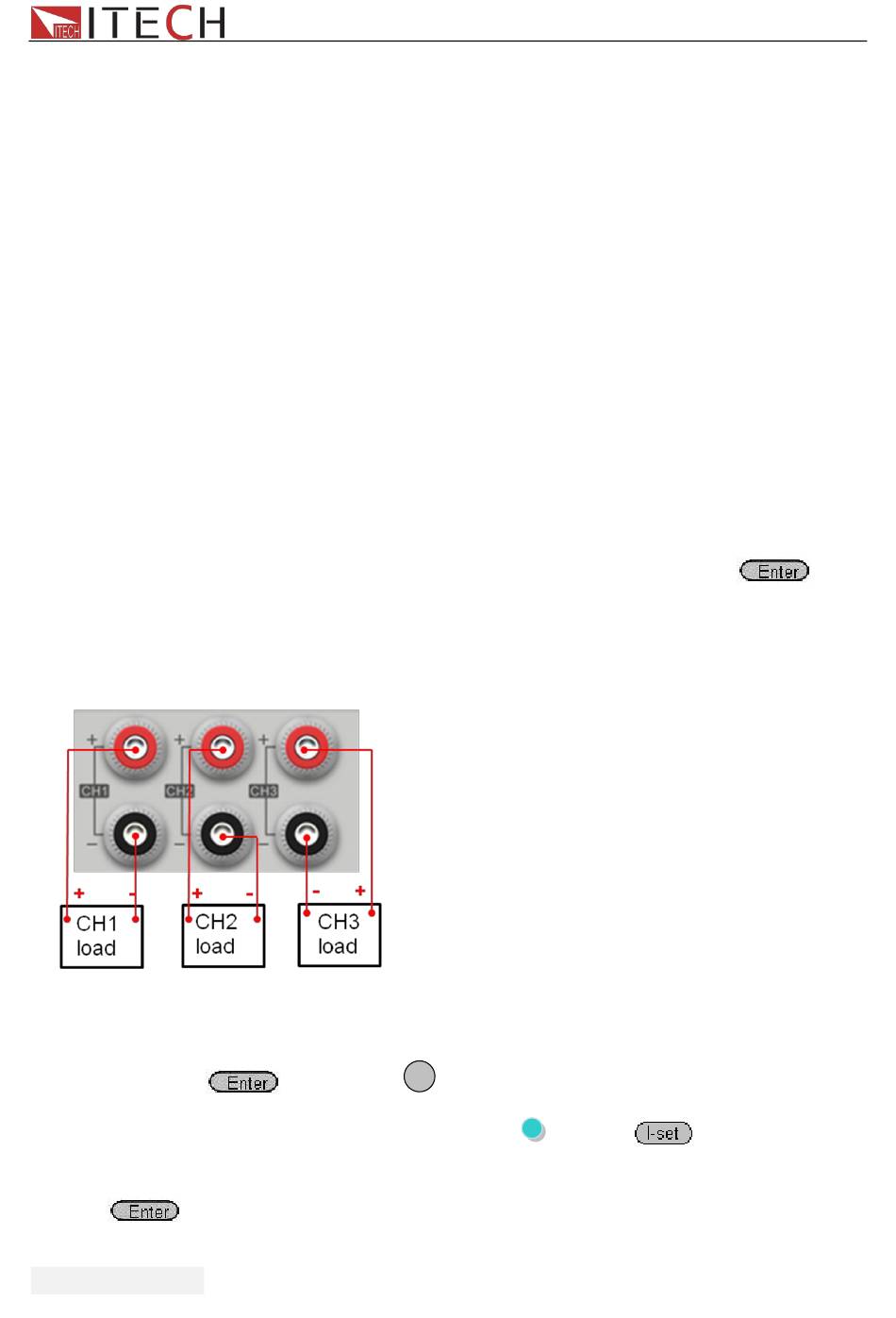

Wiring in OFF state
Ser (Series mode)
This parameter configures connection mode of CH1 and CH2 to serial mode in menu
operation. Press
To set serial mode of CH1 and CH2 in menu,press
through the menu list by Up/Down key to select COUP, using Right/Left key to select SER,
to confirm.VFD will indicate"Ser SUCC" when operation is done. And
press
