FEATURES:
• 4, 8, 16, or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to
5MP Lite / 8 MegaPixels + Additional IP Camera Support of 2 ch. (VT-TR2HA410/
VT-TR8HA410), 4 ch. (VT-TR2HA810), 8 ch. (VT-TR2HA1620 / VT-TR2HA3280 /
VT-TR8HA820),
16 ch. (VT-TR2HA1620 / VT-TR8HA1620)
• IP Camera Support up to 4 MegaPixels (VT-TR5HA3280), 5 MegaPixels (VT-TR2HA
Series) and 8 MegaPixels (VT-TR8HA Series)
• HDMI (4K), VGA, and BNC Spot Video Output
• Simple plug and play, point-to-point connection from camera to DVR
• H.265 High Profile Compression (H.264 Compression on VT-TR5HA3280)
• 2-Way Audio
• PTZ Control over RS-485 / Control over Coax (CoC)
• 4 Alarm Inputs / 1 Output (4, 8, 16 Channel models) & 16 Alarm Inputs / 4 Outputs (32
Channel model)
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• 1 Internal SATA2/SATA3 HDD Slot supporting up to 10TB (1 x 10TB HDD)
(VT-TR2HA410 / VT-TR2HA810) / 2 Internal SATA2/SATA3 HDD Slot supporting up to
20TB (2x10TB HDD) (VT-TR2HA1620 / VT-TR8HA820 / VT-TR8HA1620) / 8 Internal
SATA2/SATA3 HDD Slot Supporting up to 80TB (8 x10TB HDD) (VT-TR2HA3280,
VT-TR5HA3280)
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote control
• 3-year Warranty

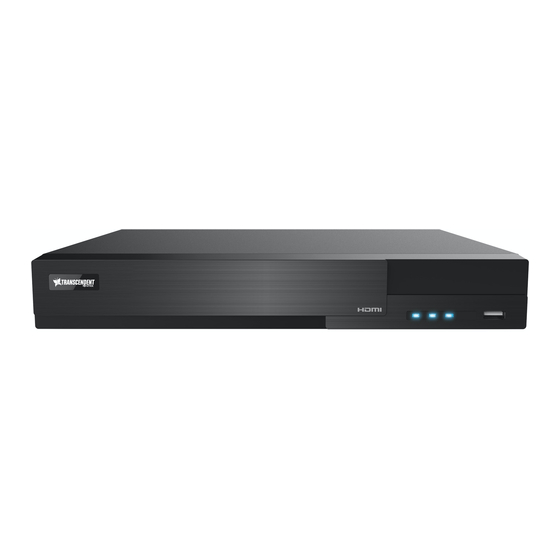

VT-TR2/5/8HA Series
Transcendent Series 4, 8, 16, or
32 Channel 2 / 8 MegaPixel 5-In-
1 HD-TVI / AHD / CVI / CVBS / IP
Digital Video Recorders
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek TRANSCENDENT VT-TR5HA Series
Summary of Contents for Vitek TRANSCENDENT VT-TR5HA Series
- Page 1 VT-TR2/5/8HA Series Transcendent Series 4, 8, 16, or 32 Channel 2 / 8 MegaPixel 5-In- 1 HD-TVI / AHD / CVI / CVBS / IP Digital Video Recorders FEATURES: • 4, 8, 16, or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 5MP Lite / 8 MegaPixels + Additional IP Camera Support of 2 ch.
- Page 2 With regard to the product with internet access, the use of product shall be wholly at your own risks. Vitek shall not be responsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks;...
- Page 3 responsible for the data loss. Cyber security Recommendations Change passwords and use strong passwords. At least 8 characters or a combination of characters, numbers, and upper and lower case letters should be used in your password. The system will automatically check the latest firmware version once a day. Once the latest version is checked, you can update it to ensure the system is current with the latest security patches and fixes.
-
Page 4: Table Of Contents
Contents DVR User Manual Contents Contents ............................i Introduction ........................1 1.1 Summary ............... Error! Bookmark not defined. 1.2 Features ........................... 1 1.3 Front Panel Descriptions ....................2 1.4 Rear Panel Descriptions ....................2 1.5 Connections ........................4 Basic Operation Guide ....................7 2.1 Startup &... -
Page 5: Contents
Contents DVR User Manual PTZ ..........................39 6.1 PTZ Control Interface Introduction ................39 6.2 Preset Setting ........................ 43 6.3 Cruise Setting ....................... 44 6.4 PTZ Protocol Setting ....................45 Record & Disk Management ..................47 7.1 Record Configuration ....................47 7.1.1 Mode Configuration .................. - Page 6 Contents DVR User Manual 9.4.2 Video Loss Settings ................... 78 9.4.3 Exception Handling Settings ................79 9.5 Alarm Event Notification ..................... 80 9.5.1 Alarm-out ......................80 9.5.2 E-mail ........................ 80 9.5.3 Display ....................... 80 9.5.4 Buzzer ........................ 81 9.5.5 Push Message ....................81 9.5.6 Alarm Server .....................
- Page 7 Contents DVR User Manual 11.8 View System Information ..................106 Remote Surveillance ....................107 12.1 Mobile Client Surveillance ..................107 12.2 Web LAN Access ..................... 107 12.3 Web WAN Access ....................108 12.4 Web Remote Control ....................110 12.4.1 Remote Preview ..................... 110 12.4.2 Remote Playback ...................
-
Page 8: Introduction
Introduction DVR User Manual 1 Introduction 1.1 Features Basic Functions Local device and network device access including third party IP cameras Standard ONVIF protocol Dual stream recording of each camera IP cameras can be added quickly or manually Collective or individual configuration of the cameras’ OSD, video parameters, mask, motion and so on Supports a maximum of 8 user permission groups including Administrator, Advanced and common which are the default permission groups of the system... -
Page 9: Front Panel Descriptions
Introduction DVR User Manual 1.2 Front Panel Descriptions The following descriptions are for reference only. Type I: Name Descriptions When recording, the light is blue When connected to a network , the light is blue Power Power indicator, when connected, the light is blue 1.3 Rear Panel Descriptions Below images are for example purposes only. - Page 10 Introduction DVR User Manual Name Descriptions CVBS CVBS video output; connect to monitor ALARM IN Alarm inputs for connecting sensors Ground AUDIO OUT Audio output; AUDIO IN Audio input ALARM OUT Relay output; connect to external alarms VIDEO IN 8 CH video inputs HDMI Connect to high definition display devices Connect to monitor...
-
Page 11: Connections
Introduction DVR User Manual 1.4 Connections Video Connections Video Output: Supports VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently. Audio Connections Audio Input: Connect to microphone, pickup, etc. Audio Output: Connect to headphones, amplifier etc. - Page 12 Introduction DVR User Manual Alarm Connections Some models may support this function. Take 16 CH alarm inputs and 1 CH alarm output for example. Alarm Input: Alarm IN 1~16 are 16 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available.
- Page 13 Introduction DVR User Manual RS485 Connection There are two types of RS485 interfaces: （Type 1） （Type 2） Type 1: The P/Z interfaces are used to connect speed dome. K/B interfaces are used to connect keyboard. Type 2: The RS485 interfaces are not only used to connect speed dome but also to connect keyboard.
-
Page 14: Basic Operation Guide
Basic Operation Guide DVR User Manual 2 Basic Operation Guide 2.1 Startup & Shutdown Please make sure all the connections are done properly before you power op the unit. Proper startup and shutdown are crucial to extending the life of your device. 2.1.1 Startup Connect a monitor to the VGA/HDMI interface of the DVR. - Page 15 Basic Operation Guide DVR User Manual Button Function Switch off—to stop the device Power Button Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Multi Button To choose multi screen display mode Next Button To switch the live image To go to sequence view mode Audio To enable audio output in live mode...
-
Page 16: Mouse Control
Basic Operation Guide DVR User Manual Button Function Record manually Search To enter search mode MEUN To enter menu Exit To exit the current interface ENTER To confirm the choice or setup Direction button To move cursor in setup ZOOM To zoom in To control playback. -
Page 17: Common Button Operation
Basic Operation Guide DVR User Manual The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. -
Page 18: Wizard & Main Interface
Wizard & Main Interface DVR User Manual 3 Wizard & Main Interface 3.1 Startup Wizard The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk;... - Page 19 Wizard & Main Interface DVR User Manual System Login. Set your own password or use the default when you use the wizard for the first time (the default username of the system is admin and the default password of admin is 123456);...
- Page 20 Wizard & Main Interface DVR User Manual Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details. Click “Next” to continue or click “Cancel” to exit the wizard. Network Settings.
- Page 21 Wizard & Main Interface DVR User Manual Click to edit the found IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway and the password of the camera. You can check “Sync to IPC” to modify the IP address of the IPC via different network segments for being in the same network segment with the DVR.
- Page 22 Wizard & Main Interface DVR User Manual the settings. See 7.1.1 Mode Configuration for details. Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “Next” to save the settings. See 7.1.1 Mode Configuration for details. QRCode.
-
Page 23: Main Interface
Wizard & Main Interface DVR User Manual 3.2 Main Interface 3.2.1 Main Interface Introduction The buttons in area 1 are introduced in the table below. Button Meaning Start button. Click it to pop up area ③. Full screen button. Click it to show full screen; click it again to exit the full screen. -
Page 24: Setup Panel
Wizard & Main Interface DVR User Manual Button Meaning Network status button. Click it to view the network status. Information button. Click it to view system information. Introduction of area 2: Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one IP camera in the list to preview the camera image in the selected window. - Page 25 Wizard & Main Interface DVR User Manual The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligent Detection” and “PTZ”.
-
Page 26: Main Functions
Wizard & Main Interface DVR User Manual Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to system setup interface by clicking “System” tag. 3.2.3 Main Functions Camera... - Page 27 Wizard & Main Interface DVR User Manual The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status etc. Please see 11.1 Network Configuration for details. Account and Authority Ø The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) etc.
-
Page 28: Camera Management
Camera Management DVR User Manual 4 Camera Management 4.1 Camera Signal Click StartàSettingsàCameraàManage CameraàCamera Signal to go to the interface as shown below. Some models may support analog signal switching to IP signal, which means decreasing (or increasing) the number of analog channels, accordingly increasing (or decreasing) the number of IP channels with the total channels unchanged. - Page 29 Camera Management DVR User Manual quickly add or add the IP camera manually. Quickly Add Ø Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP address, username and password and so on. Click “Default Password” to set the default username and password of each camera.
-
Page 30: Edit Camera
Camera Management DVR User Manual Add Manually Ø Enter the IP address or domain name (click in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click “OK”... -
Page 31: Ip Planning
Camera Management DVR User Manual Click to view the live image of the camera in the popup window. Click to edit the camera (see Add camera in 3.1 Startup Wizard for details). Click to delete the IP camera. Click in the “Operation” header line and then click “Modify IPC Password” to pop up a window(check the IPCs in the window, set the new password and then click “OK”... - Page 32 Camera Management DVR User Manual Click to edit the IP address, user name or password and other information of the DVRs/NVRs. Click behind “Add” button to add the IPC selected and the user may edit the IP address, user name or password by clicking behind “Edit”...
-
Page 33: Live Preview Introduction
Live Preview Introduction DVR User Manual 5 Live View Introduction 5.1 Preview Interface Introduction The connected analog cameras will be added automatically in the live preview interface for previewing. You need to add IP camera manually for previewing (see 4.2.1 Add Camera for details). -
Page 34: Preview Mode
Live Preview Introduction DVR User Manual Button Menu List Meaning PTZ Control Click it to go to PTZ control interface. See Chapter 6 PTZ for details. Zoom In Click it to go to single channel amplification interface. Click it to go to image adjustment interface. Refer to 5.3.5 Image Adjustment for details. -
Page 35: Quick Sequence View
Live Preview Introduction DVR User Manual Add Display Mode Ø Method One: Click “Customize Display Modes” in the above interface and then set the screen mode. Add the cameras and adjust the cameras’ display sequence as needed. Click under the display mode list and then enter the display mode name in the popup window, click the “OK”... -
Page 36: Scheme View In Sequence
Live Preview Introduction DVR User Manual Go to the live preview interface and then click to pop up a little window. Set the dwell time in the window and then click to view the live group by group according to the camera number of the current screen mode. -
Page 37: Spot View
Live Preview Introduction DVR User Manual Add Scheme Ø Click in area 1 to create a new scheme. Click on the top right corner of the scheme to delete it. Configure Scheme Ø Select a scheme in area 1 and then click the screen mode button on the tool bar to set the screen mode of the scheme. -
Page 38: Pos Settings
Live Preview Introduction DVR User Manual dwell time and click “Apply” to start playing the schemes in sequence in output 2. 5.3 POS Settings Some models may not support this function. Click StartàSettingsàBasicàPOS Settings to go to the interface. Enable POS and click configure under “Connection Settings” to go to the following interface. - Page 39 Live Preview Introduction DVR User Manual information (Use the default settings of the general settings). Check “Trigger Camera” and click configure under it to bind POS to the camera. One POS can be bound to multiple channels, but one channel can only be bound to one POS. Click “Apply”...
-
Page 40: Preview Image Configuration
Live Preview Introduction DVR User Manual One POS is bound to multiple cameras: 5.4 Image Configuration 5.4.1 OSD Settings Click StartàSettingsàCameraàImageàOSD Settings to go to the interface as shown below. Select the camera, enter the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs’... -
Page 41: Image Settings
Live Preview Introduction DVR User Manual 5.4.2 Image Settings Click StartàSettingsàCameraàImageàImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust”... -
Page 42: Water Mark Settings
Live Preview Introduction DVR User Manual shown below. Select the camera and enable the mask. Click “Draw” button and then drag the mouse on the image area to set the mask area; click “Delete” button to delete the mask areas; click “Apply”... -
Page 43: Image Adjustment
Live Preview Introduction DVR User Manual 5.4.5 Image Adjustment Go to live preview interface and then click button on the tool bar under the camera window to go to the image adjustment interface. Image Adjustment Ø Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. - Page 44 Live Preview Introduction DVR User Manual Parameter Meaning Decrease the noise and make the image more thorough. Increasing the value will Denoise make the noise reduction effect better but it will reduce the image resolution. White Balance Adjust the color temperature according to the environment automatically. Image Mirror Turn the current video image horizontally.
- Page 45 Live Preview Introduction DVR User Manual Button/Parameter Meaning It is the time interval when camera lens is auto-focusing. The interval can Time Interval be set in the drop-down list. Note: This function is only available for the models with auto varifocal lens, or the settings here are ineffective.
-
Page 46: Ptz
DVR User Manual 6 PTZ 6.1 PTZ Control Interface Introduction Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below. You can select another PTZ on the top right of the interface for PTZ control. - Page 47 DVR User Manual Analog Joystick Control Ø The analog joystick on the left side of the interface provides quick PTZ control. The PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the PTZ rotates.
- Page 48 DVR User Manual Advanced 3D Control Ø Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point. Press and hold the left button of the mouse on any area of the camera image to zoom in the image;...
- Page 49 DVR User Manual Button Meaning Call main menu or enter the sub menu or confirm the settings. Change the menu mode or decrease the menu value. Change the menu mode or increase the menu value. Go to the previous menu. Go to the next menu.
-
Page 50: Preset Setting
DVR User Manual Enter the cruise name in the “Add Cruise” window and then click “Add preset” to pop up the “Add Preset” window (Before adding preset to the cruise, please add preset of the PTZ first). In the “Add Preset” window, select the preset name, preset time and preset speed and then click “OK”... -
Page 51: Cruise Setting
DVR User Manual Add preset Ø Select camera and then click “Add” button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click to add preset. -
Page 52: Ptz Protocol Setting
DVR User Manual Edit Cruise Ø Select the camera and cruise in the “Cruise” interface. Enter the new cruise name and then click to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. - Page 53 DVR User Manual Baud Rate: Baud rate of the PTZ device. Range from: 110, 300, 600, 1200, 2400, 4800, 9600, 19200, 34800, 57600, 115200, 230400, 460800, 921600.
-
Page 54: Record & Disk Management
Record & Disk Management DVR User Manual 7 Record & Disk Management 7.1 Record Configuration 7.1.1 Mode Configuration Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartàSettingsàRecordàMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings”... - Page 55 Record & Disk Management DVR User Manual motion/sensor/intelligence alarm happens. Always(24 7) Record+Motion Record+Sensor Record+Analytics Record+POS Record: ⅹ Normal record is enabled all the time; motion/sensor/Analytics/POS alarm record will be enabled when motion/sensor/ Analytics /POS alarm happens. Some models may not support POS recording. You can add more auto modes on intelligence record.
-
Page 56: Advanced Configuration
Record & Disk Management DVR User Manual FPS: the higher the frame rate is, the more fluid the video is. However, more storage room will be taken up. Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. -
Page 57: Encode Parameters Setting
Record & Disk Management DVR User Manual 7.2 Encode Parameters Setting Click StartàSettingsàRecordàEncode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of main stream for each camera in “Event Recording Settings” and “Schedule Recording Settings” interfaces. Click “Apply”... -
Page 58: Schedule Setting
Record & Disk Management DVR User Manual 7.3 Schedule Setting 7.3.1 Add Schedule Click StartàSettingsàRecordàRecord ScheduleàEdit Schedules to go to the interface as shown below. “24 7”, “24 5” and “24 2” are the default schedules; you cannot edit or delete ⅹ... - Page 59 Record & Disk Management DVR User Manual Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule. : add button; : delete button. Set Day Schedule Ø Click and then drag the cursor on the time scale to set record time;...
-
Page 60: Record Schedule Configuration
Record & Disk Management DVR User Manual Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week. 7.3.2 Record Schedule Configuration Click StartàSettingsàRecordàRecord ScheduleàSchedule Configuration to go to the interface as shown below. -
Page 61: Timing Recording
Record & Disk Management DVR User Manual 7.4.2 Timing Recording Timing Recording: the system will record automatically according to the schedule. Set the timing record schedule of each camera. See 7.3 Schedule Setting for details. 7.4.3 Motion Based Recording Motion Based Recording: the system will start motion based recording when motion object appears in the setup schedule. -
Page 62: Storage Mode Configuration
Record & Disk Management DVR User Manual 7.5.1 Storage Mode Configuration Click StartàSettingsàDiskàStorage Mode to go to the interface as shown below. There are four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The DVR with e-SATA interface supports e-SATA recording. - Page 63 Record & Disk Management DVR User Manual...
-
Page 64: Playback & Backup
Playback & Backup DVR User Manual 8 Playback & Backup 8.1 Instant Playback Click on the tool bar at the bottom of the live camera window to playback the recording (click on the tool bar at the bottom of the live preview interface to set the default playback time). - Page 65 Playback & Backup DVR User Manual The added cameras will playback their recording in the playback interface automatically. You can also add the playback camera manually. Click in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera.
- Page 66 Playback & Backup DVR User Manual Button Meaning Next frame button. It works only when the forward playing is paused in single screen mode. Click to step backward 30s and click to step forward 30s. Click it to show the water mark on the image; click to hide the water mark.
-
Page 67: Smart Playback
Playback & Backup DVR User Manual Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live preview interface. Click to pause the record playing; click to play the Zoom In record. - Page 68 Playback & Backup DVR User Manual Click to go to the following interface. Set the value of “Speed of non-interest video” (Please skip this one if you click “Skip non-interest video”), “Speed of interest video” and “Intrusion percentage”. Smart Playback by Drawing Rectangle Click and draw a rectangle in the desired area.
-
Page 69: Record Search, Playback & Backup
Playback & Backup DVR User Manual Click and draw a line in the desired area. Then the system will automatically search the recorded files about crossing this line. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the recording. Smart Playback by Drawing Quadrilateral Click and draw a quadrangle in the desired area. -
Page 70: Search, Playback & Backup By Time-Sliced Image
Playback & Backup DVR User Manual disk or USB mobile HDD). The file system of the backup devices should be FAT32 format. 8.4.1 Search, Playback & Backup by Time-sliced Image Click StartàSearch and BackupàBy Time-sliced Image to go to “By Time-sliced Image” tab. - Page 71 Playback & Backup DVR User Manual Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only. Click the “Playback” button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details).
-
Page 72: Smart Search
Playback & Backup DVR User Manual to select the time slice mode. Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface. 8.4.2 Smart Search Click StartàSearch and BackupàSmart Search to go to “Smart Search” tab as shown below. -
Page 73: Search, Playback & Backup By Event
Playback & Backup DVR User Manual the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the recording according to the time and event type you set. -
Page 74: Search & Playback By Tag
Playback & Backup DVR User Manual Check the event type in the interface as required. Click to set the start time and end time on the top left of the interface. Check cameras on the left side of the interface or check “All” to select all the cameras and then click to search the recording. -
Page 75: Image Management
Playback & Backup DVR User Manual 8.4.6 Image Management Click StartàSearch and BackupàImage Management to go to “Image Management” tab. The system will display all the snapshot images automatically in the list. Click to delete the image. Click to pop up the “Export” window. Select the device name and save path in the window and then click the “Save”... -
Page 76: Alarm Management
Alarm Management DVR User Manual 9 Alarm Management 9.1 Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. Click StartàSettingsàAlarmàSensor Alarm to go to the following interface. Select the alarm type (NO or NC) according to trigger type of the sensor. -
Page 77: Motion Alarm
Alarm Management DVR User Manual Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details. Preset: check it and then the “Trigger Preset”... -
Page 78: Motion Alarm Handling Configuration
Alarm Management DVR User Manual Select the camera, enable the motion and set the sensitivity and duration of the camera. Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the conditions since the sensitivity is influenced by color and time (day or night). -
Page 79: Intelligence Alarm
Alarm Management DVR User Manual Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface. -
Page 80: Exception
Alarm Management DVR User Manual Object Detection Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàObject Detection to go to the following interface. Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). -
Page 81: Tripwire
Alarm Management DVR User Manual Select the camera and enable the relevant detection as needed. Scene Change: Alarms will be triggered if the scene on the cameras video has changed. Video Blurred: Alarms will be triggered if the video becomes blurry. Video Color Cast: Alarms will be triggered if the video becomes obscured. - Page 82 Alarm Management DVR User Manual Click StartàSettingsàCameraàIntelligent DetectionàTripwire to go to the following interface. Select the camera, enable the line crossing detection and set the duration. Select the direction. Direction: A<->B, A->B and A<-B options. It is the crossing direction of the intruder who crosses over the alert line.
-
Page 83: Intrusion Detection
Alarm Management DVR User Manual Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply”... - Page 84 Alarm Management DVR User Manual Intrusion Detection Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàIntrusion Detection to go to the following interface. Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of intrusion detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
-
Page 85: Exception Alarm
Alarm Management DVR User Manual Click “Apply” to save the settings. You can click “Regional Invasion Config” to go to the intrusion detection configuration interface. 9.4 Exception Alarm 9.4.1 IPC Offline Settings Click StartàSettingsàAlarmàExceptionàIPC Offline Settings to go to the interface as shown below. -
Page 86: Exception Handling Settings
Alarm Management DVR User Manual Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The Video Loss Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. 9.4.3 Exception Handling Settings Click StartàSettingsàAlarmàExceptionàException Handling Settings to go to the... -
Page 87: Alarm Event Notification
Alarm Management DVR User Manual 9.5 Alarm Event Notification 9.5.1 Alarm-out Click StartàSettingsàAlarmàEvent Notification to go to the following interface. Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to edit the schedules (see 7.3.1 Add Schedule for details). Click “Apply”... -
Page 88: Buzzer
Alarm Management DVR User Manual 9.5.4 Buzzer Click StartàSettingsàAlarmàEvent NotificationàBuzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click “Apply” to save the setting. You can click “Test” to test the buzzer. 9.5.5 Push Message Click StartàSettingsàAlarmàEvent NotificationàPush Message to go to the interface as... -
Page 89: Manual Alarm
Alarm Management DVR User Manual 9.6 Manual Alarm Click on the tool bar at the bottom of the live preview interface to pop up a window. Click “Trigger” to start alarm. Click “Clear” to stop alarm. 9.7 View Alarm Status Click StartàSettingsàAlarmàAlarm Status or click on the tool bar at the bottom of the live preview interface to view the alarm status. - Page 90 Alarm Management DVR User Manual If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page. Click to view the exception alarm information in the previous/next page. Click to play the alarm record.
-
Page 91: Account & Permission Management
Account & Permission Management DVR User Manual 10 Account & Permission Management 10.1 Account Management Click StartàSettingsàAccount and AuthorityàAccountàEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. -
Page 92: Edit User
Account & Permission Management DVR User Manual Set the username, password and group. The e-mail address and MAC address are optional (enter the MAC address after you check it). Click “Add” to add the user. 10.1.2 Edit User Click StartàSettingsàAccount and AuthorityàAccountàEdit User and then click the user list or double click the user to edit the user information. - Page 93 Account & Permission Management DVR User Manual Modify Pattern Lock Ø Some models may not support this function. Click “Modify Pattern Lock” to pop up a window. Enter the current password and then check “Enable” to set pattern lock. Recover Password Ø...
-
Page 94: User Login & Logout
Account & Permission Management DVR User Manual 10.2 User Login & Logout Login: Click StartàLogin or directly click the preview interface and then select username and enter the password in the popup window. Click the “Login” button to log in the system. Logout: Click StartàLogout or click StartàShutdown to pop up the “Shutdown”... -
Page 95: Edit Permission Group
Account & Permission Management DVR User Manual Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings. 10.3.2 Edit Permission Group Go to “Edit Permission Group” interface and then click in the group list to edit the permission group (the operations of the “Edit Permission Group”... -
Page 96: Black And White List
Account & Permission Management DVR User Manual Permission Group”, please see 10.3.1 Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default permission groups (“Administrator”, “Advanced” and “Common”) cannot be deleted. 10.4 Black and White List Click StartàSettingsàAccount and AuthorityàSecurity to go to the following interface. -
Page 97: Password Security
Account & Permission Management DVR User Manual 10.6 Password Security Click StartàSettingsàAccount and AuthorityàSecurityàPassword Security to go to the following interface. In this interface, you can set the level and expiration time of the password. 10.7 View Online User Click StartàSettingsàAccount and AuthorityàUser Status to view the online user information (you can view the online user name, login type, IP address and login time;... -
Page 98: Device Management
Device Management DVR User Manual 11 Device Management 11.1 Network Configuration 11.1.1 TCP/IP Configuration Click StartàSettingsàNetworkàTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually enter the network addresses. - Page 99 Device Management DVR User Manual HTTP Port: the default HTTP port of the DVR is 80. The port number should be changed to others like 81. The port is mainly used to client remote access. If you want to access the DVR through a web browser, you should enter IP address plus HTTP port in the address bar like http://192.168.11.61:81.
-
Page 100: Pppoe Configuration
Device Management DVR User Manual ③ After the certificate has been installed, enable this function and apply it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.1.201:443). Server Port: the default server port of the DVR is 6036. The server port number can be changed as required. - Page 101 Device Management DVR User Manual Check “Enable” and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. Click “Test” to test the effectiveness of the input information. Click “Apply” to save the settings. You will have to enter the server address and domain name if some DDNS types are selected.
- Page 102 Device Management DVR User Manual Create domain name and then click Request Domain. After you successfully request your domain name, you will see your domain name information in the list.
-
Page 103: E-Mail Configuration
Device Management DVR User Manual Click StartàSettingsàNetworkàDDNS to go to DDNS setting interface. Enable DDNS and then select the www.vitekivpddns.com DDNS type. Enter the registered username, password and domain name and then click “Apply”. Map the IP address and HTTP port in the router (you can skip this step if UPnP function is enabled). -
Page 104: Upnp Configuration
Device Management DVR User Manual to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you enter) and enter the password of the sender and then click “Apply” to save the settings (you don’t have to enter the username and password if “Anonymous Login”... -
Page 105: Nat Configuration
Device Management DVR User Manual 11.1.7 NAT Configuration Click StartàSettingsàNetworkàNAT to go to the interface for NAT configuration. Check “Enable” and then select the NAT server address. Click “Apply” to save the settings. You can scan the QRCode through the mobile client which is installed on a mobile phone or tablet to log into the mobile client. -
Page 106: Ftp Configuration
Device Management DVR User Manual 11.1.9 FTP Configuration Some models may not support this function. Click StartàSettingsàNetworkàFTP to go to the interface for FTP configuration. Check “Enable” and enter the server name, port, username and password, max file size and remote directory. -
Page 107: Wireless
Device Management DVR User Manual ② Check SNMPv1or SNMPv2 to enable this function. ③ Set the port of the SNMP. ④ Set the trap address and the trap port. ⑤ Click “Apply” to save the settings. Trap Address: The IP address of SNMP host. Trap Port: The port of SNMP host. -
Page 108: View Network Status
Device Management DVR User Manual ③ Enable wireless function. ④ Choose the wireless type as needed. ⑤ Click “Network Status” to view the 3G/4G connection status and get the IP address. 11.1.13 View Network Status Click StartàSettingsàNetworkàNetwork Status to view the network status or click the tool bar at the bottom of the live preview interface to view network status conveniently. -
Page 109: Date And Time Configuration
Device Management DVR User Manual Set the device name, device No., language, video format and main output resolution. Enable or disable wizard, “Log In Automatically”, “Log Out Automatically” (if checked, you can set the wait time) “App Live Self-Adaption” and “Dwell Automatically” (if checked, you can set the wait time). -
Page 110: Recorder Osd Settings
Device Management DVR User Manual Time” option to set the system time. NTP: select “NTP” in the “Synchronous” option and then choose the NTP server. 11.2.3 Recorder OSD Settings Click StartàSettingsàSystemàBasicàRecorder OSD settings to go to the following interface. OSD name and icon can be enabled here. 11.3 Factory Default Click StartàSettingsàSystemàMaintenanceàFactory Default and then click the “Reset to factory default”... -
Page 111: Backup And Restore
Device Management DVR User Manual Click StartàSettingsàSystemàMaintenanceàUpgrade to go to “Upgrade” interface. Select the USB device in “Device Name” option and go to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. The system may automatically restart during upgrading. -
Page 112: Restart Automatically
Device Management DVR User Manual Select the USB device in “Device Name” option; go to the path where you want to store the configuration backup file and then click the “Backup” button; finally click the “OK” button in the popup window. Recover Select the USB device in “Device Name”... -
Page 113: View System Information
Device Management DVR User Manual Choose the log file in the list and then click the “Export” button to export the log file. Click on the “Content” title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. -
Page 114: Remote Surveillance
Remote Surveillance DVR User Manual 12 Remote Surveillance 12.1 Mobile Client Surveillance Enable NAT in the DVR. Refer to 11.1.7 NAT Configuration for details. Download and install the mobile client “Transcendent Viewer” into the mobile device with Android or iOS system. Run the mobile client, go to the “Add Device”... -
Page 115: Web Wan Access
Remote Surveillance DVR User Manual Notes: 1. Please make sure that the IP address of the DVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the DVR shall be set to 192.168.1.XXX. 2. - Page 116 Remote Surveillance DVR User Manual Enter the serial number (click on the tool bar at the bottom of the live preview interface to see the serial number of the DVR), user name (the user name of the DVR, admin by default) and password (the password of the DVR, 123456 by default) of the DVR, select the display language on the top right corner of the interface and then click the “Login”...
-
Page 117: Web Remote Control
Remote Surveillance DVR User Manual 12.4 Web Remote Control The supported browsers for remote access are IE8/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. When you access the DVR through IE for the first time, you need to download and install the relative components for normal preview and playback. - Page 118 Remote Surveillance DVR User Manual Start Preview Ø Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click in the tool bar to preview all the cameras.
- Page 119 Remote Surveillance DVR User Manual Button Meaning Click it to close all the preview cameras. Click it to start recording for all cameras to computer. Click stop recording. Click it to start recording for all cameras to the DVR. Click stop recording.
-
Page 120: Remote Playback
Remote Surveillance DVR User Manual Button Meaning Click it to snap. Click it to start record to computer Click it to start record to the NVR. Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area. -
Page 121: Remote Backup
Remote Surveillance DVR User Manual Button Meaning Stop button. Rewind button. Click it to play video backward. Play button. Click it to play video forward. Pause button. Click it to decrease the playing speed. Click it to increase the playing speed. Previous frame button. - Page 130 *Limited Warranty means that VITEK reserves the right to repair or replace any product found de- fective within the warranty time period, prorated to the date of original purchase. If VITEK cannot repair the product, VITEK reserves the right to replace it with an equal or better product and grade at VITEK’s discretion.
