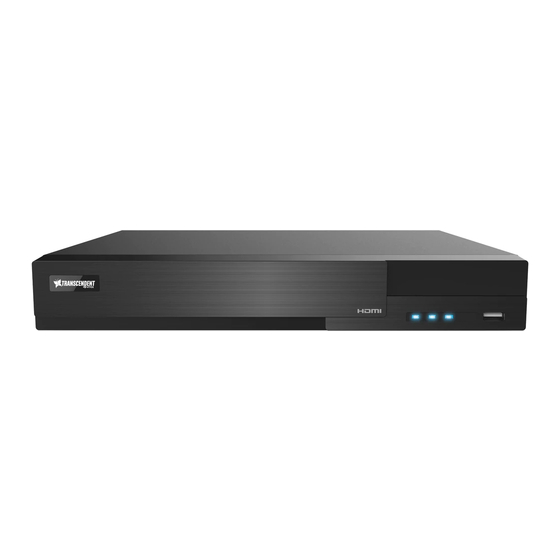

Vitek Transcendent VT-TR8NHA Series Quick Start Manual

Transcendent series 4 and 8 channel 8mp [4k] 5-in-1 hd-tvi / ahd / cvi / cvbs / ip ndaa compliant digital video recorders
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

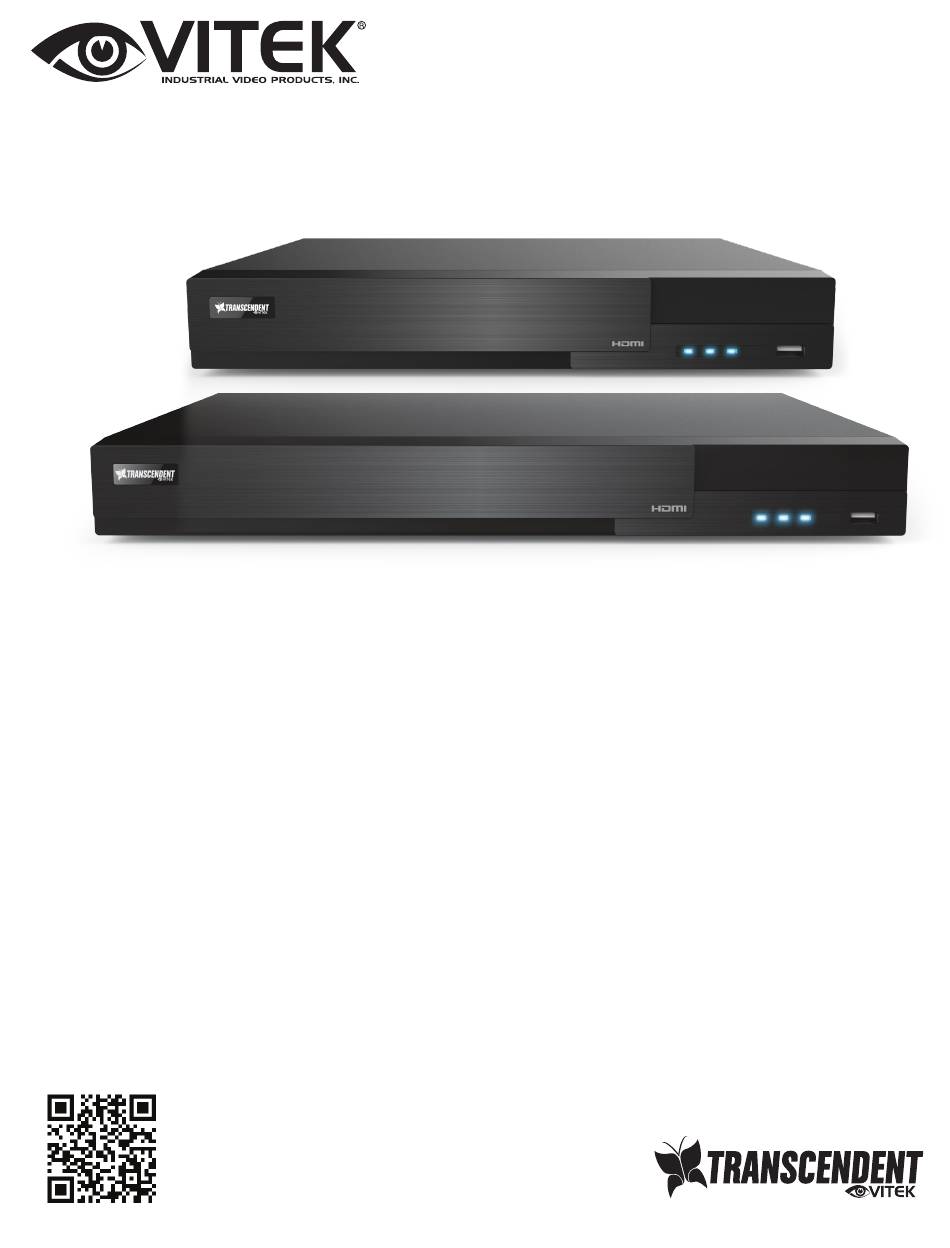

QUICK START GUIDE
VT-TR8NHA410
VT-TR8NHA820
KEY FEATURES:
• 4, 8 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 8MP + IP Camera Support
• Live View: TVI/AHD/CVI [VT-TR8NHA410]: 4K@60fps, 5MP@80fps, 4MP/3MP/1080P/720P/WD1@120fps
• Live View: TVI/AHD/CVI [VT-TR8NHA820]: 4K@120fps, 5MP@160fps, 4MP/3MP/1080P/720P/WD1@240fps
• Analog Channel Recording [VT-TR8NHA410]: 4K@28fps (only 1 Ch. supports), 4K Lite@60fps, 5MP@48fps,
5MP Lite@80fps, 4MP/3MP@60fps, 4MP Lite/1080P/720P/WD1/D1@120fps
• Analog Channel Recording [VT-TR8NHA820]: 4K@56fps, 4K Lite@120fps, 5MP@96fps, 5MP Lite@160fps,
4MP/3MP@120fps, 4MP Lite/1080P/720P/WD1/D1@240fps
• HDMI, VGA, and BNC Spot Video Output
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
• H.265 / H.264 Compression
• 2-Way Audio (Takes up 1 Ch. Audio Input)
• PTZ Control over Coax, RS-485
• VT-TR8NHA410: 4 Alarm Inputs / 1 Alarm Output, VT-TR8NHA820: 8 Alarm Inputs / 2 Alarm Inputs
• Pentaplex: Live Display / Record / Playback / Backup /Remote Access
• VT-TR8NHA410: 1 Internal SATA2/3 HDD Slot up to 10TB (1 x 10TB HDD) +1 x E-SATA
• VT-TR8NHA820: 2 Internal SATA2/3 HDD Slot up to 10TB (2 x 10TB HDD) +1 x E-SATA
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote Control
• 3 Year Warranty
PLEASE NOTE:
Complete manual can be found at:
www.vitekcctv.com
VT-TR8NHA Series
Transcendent Series 4 and 8 Channel 8MP [4K]
5-In-1 HD-TVI / AHD / CVI / CVBS / IP NDAA
Compliant Digital Video Recorders
NDAA
COMPLIANT
4K
8MP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcendent VT-TR8NHA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek Transcendent VT-TR8NHA Series

Summary of Contents for Vitek Transcendent VT-TR8NHA Series

  • Page 1 • HDMI, VGA, and BNC Spot Video Output • Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller] • H.265 / H.264 Compression • 2-Way Audio (Takes up 1 Ch. Audio Input) •...

  • Page 2: Setup And Configuration

    SETUP & CONFIGURATION: 1. Notes ● Please read this instruction carefully for correct use of the product and preserve it for reference purposes. ● This manual is suitable for 4/8 CH HD Hybrid DVR. All the examples and pictures used here are for reference only.
  • Page 3 7. Network Configuration & Adding IP Cameras ►LAN 1 Set the network of the DVR. Go to Start → Settings → Network →TCP/IPv4. Input IP address, subnet mask, gateway, etc. If using DHCP, please enable DHCP in both the DVR and the router. 2 Go to Start →...

  • Page 4: Nat Settings

    9. NAT ► NAT Settings 1 Make sure the DVR is powered and connected to a network. TCP/ IPv4 Port DDNS E-mail UPnP Network Status 2 Go to Start → Settings → Network → TCP/IPv4. You can obtain the IP address, subnet mask and gateway automatically. You can also manually enter them according to the actual network situation.
  • Page 5 SPECIFICATIONS - VT-TR8NHA410 SPECIFICATIONS - VT-TR8NHA820 Video Inputs 4 Channels HD-TVI / AHD / CVI / CVBS Analog BNC Video Inputs 8 Channels HD-TVI / AHD / CVI / CVBS Analog BNC Inputs Supporting up to 8MP[4K] Inputs Supporting up to 8MP[4K] Additional IP Camera Support 2 IPCs (8Mp@20fps, 5MP &...
  • Page 6 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! STARLIGHT 2MP HD OVER COAX CAMERAS IN FIXED / MOTORIZED LENS CONFIGURATIONS VTC-THB2RFS VTC-THT2RFS VTD-THD16R2F Transcendent 2.0 Megapixel Indoor/Outdoor 4-in-1 Starlight Fixed Lens Cameras FEATURES • 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor • Advanced Starlight Technology Offers Dramatically •...
  • Page 7 NOTES...

  • Page 8: Limited Product Warranty

    Limited Product Warranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...
