QUICK START GUIDE
KEY FEATURES:
16 or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 8 MegaPixel + IP Camera Support with ability to
•
substitute up to 32 (VT-TR8HA3280) 8 (VT-TR8HA1620) HDA inputs for IP cameras
VT-TR8HA1620: Video Resolution (HDA): TVI/ AHD / CVI: 8MP@7fps, 8MP Lite@15fps, 5MP@12fps, 4MP@15fps,
•
4MPLite/3MP/1080P/720P/WD1 @30fps
•
VT-TR8HA3280: Video Resolution (HDA): TVI/ AHD / CVI: 8MP@8fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1 @30fps
Video Resolution (IP): Up to 8MP@30fps
•
HDMI (4K), VGA, and BNC Spot Video Output
•
Simple plug and play, point-to-point connection from camera to DVR
•
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
H.265 / 264 Compression
•
•
2-Way Audio / 1-Audio In
PTZ Control over RS-485 / Control over Coax (CoC)
•
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
•
VT-TR8HA1620: 2 Internal SATA2/SATA3 HDD Slot supporting up to 20TB (2 x 10TB HDD)
•
VT-TR8HA3280: 8 Internal SATA2/SATA3 HDD Slot supporting up to 80TB (8 x 10TB HDD)
•
Applications for iOS & Android
•
Remote Viewing over the Internet via Web Browser or LAN
•
Mac OS® Client & CMS Central Management Software Included
•
•
Supports both Dynamic and Static IP Addresses
Control locally via USB Mouse or IR Remote cont
•
3-Year Warrranty
•
PLEASE NOTE:
Complete manual can be found at:
www.vitekcctv.com

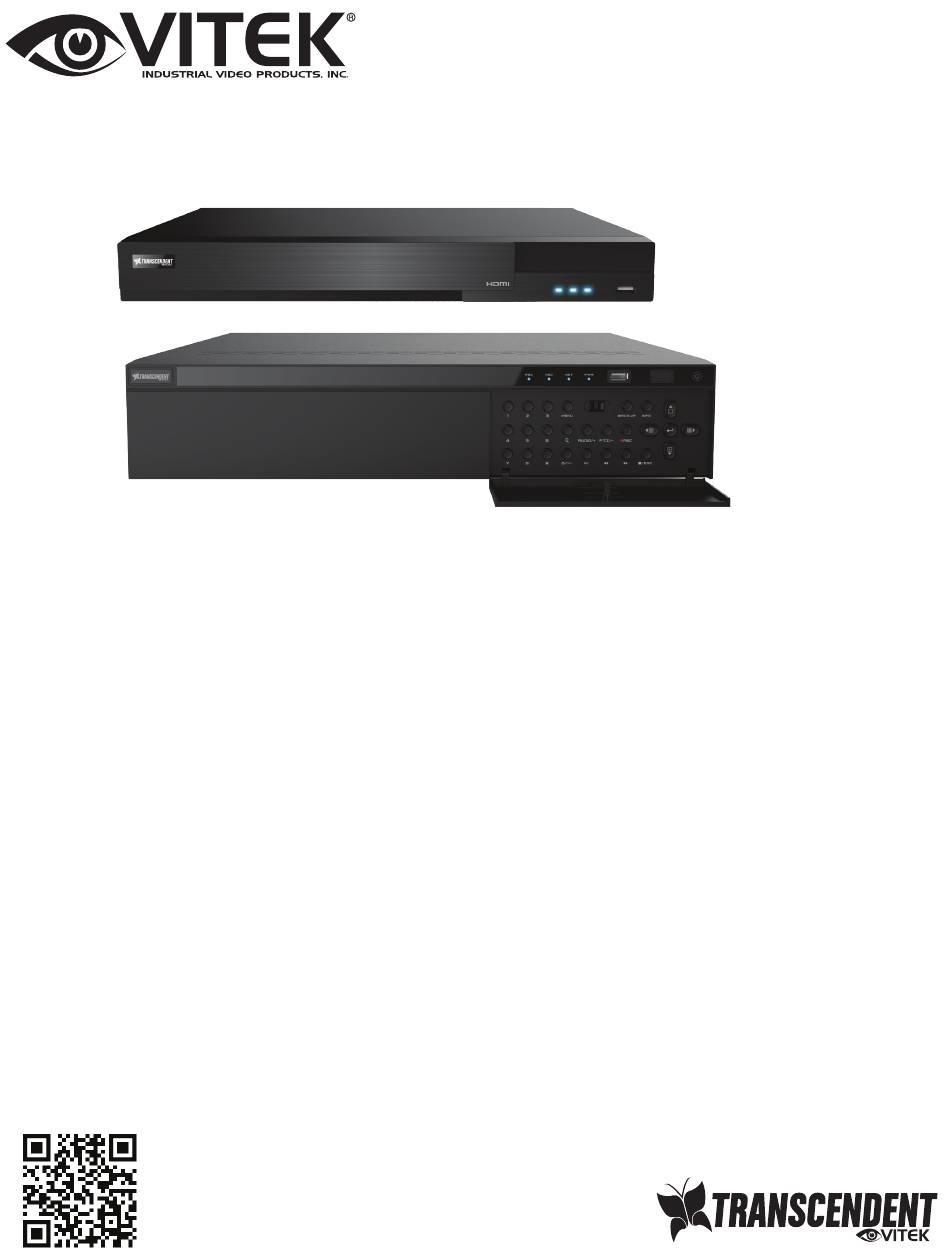

VT-TR8HA Series
Transcendent Series 16 and 32 Channel
8.0 MegaPixel [4K] 5-In-1 HD-TVI / AHD / CVI /
CVBS / IP Digital Video Recorders
VT-TR8HA1620
VT-TR8HA3280
4K
8MP
