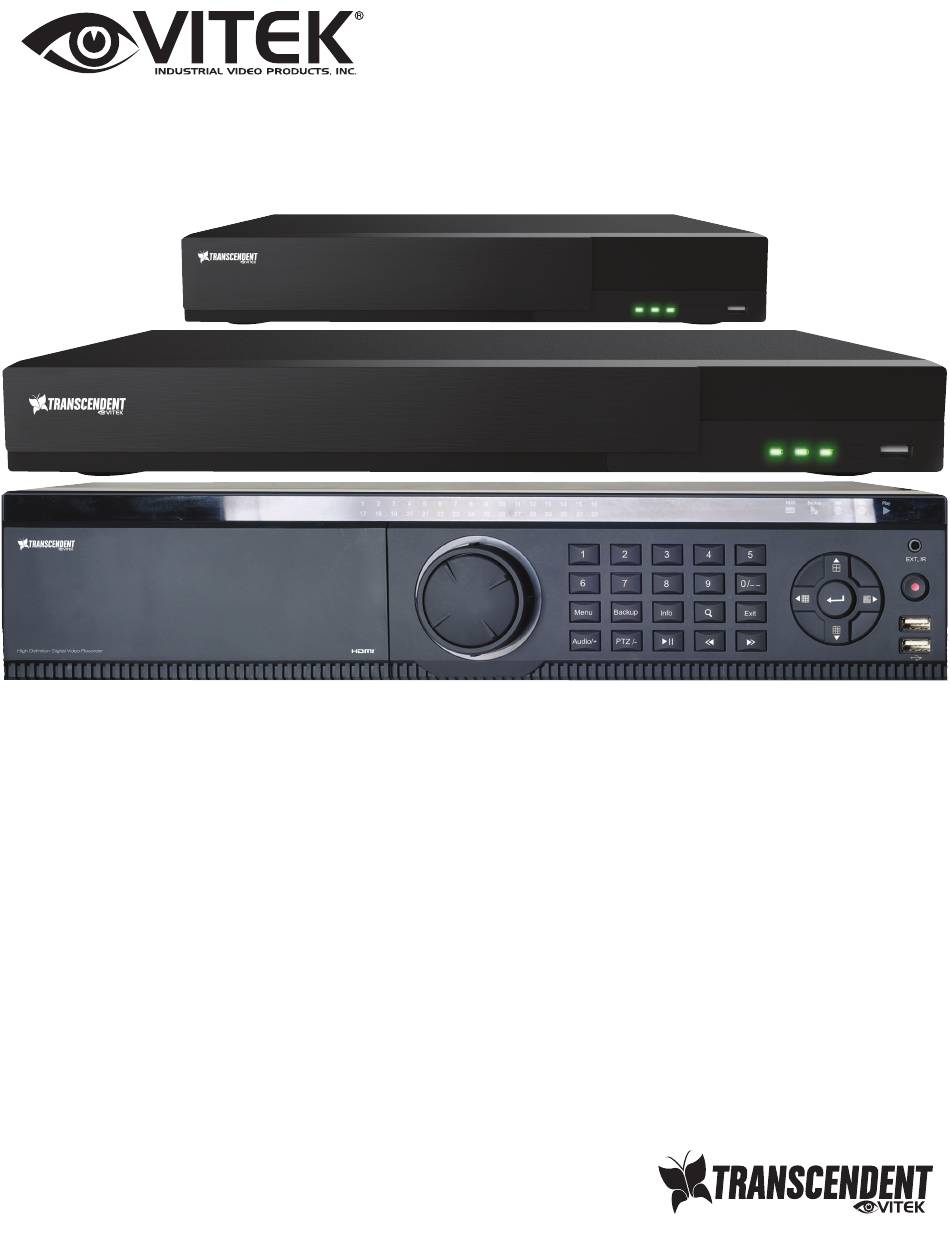

QUICK START GUIDE
FEATURES:
● 4, 8, 16, or 32 Channel HD-TVI/AHD/CVI/960H BNC Inputs + IP Camera Support
● 2 Channel IP Camera Support (VT-TR2HA410, VT-TR8HA410), 4-Channel IP Camera Support (VT-
TR2HA810, VT-TR5HA3280), 8-Channel IP Camera Support (VT-TR2HA1620, VT-TR2HA3280, VT-
TR8HA820 VT-TR8HA1620)
● Simple plug and play, point-to-point connection from camera to DVR
● H.265 Compression
● HDMI, VGA, and BNC (Spot) Video Outputs
● 2-Way Audio
● PTZ Control over CoC or RS485
● 4 Alarm Inputs / 1 Alarm Output (4 Channel), 8 In / 2 Out (8 Ch.), 16 In / 4 Out (16 Ch. & 32 Ch.)
● Pentaplex: Live Display / Record / Playback / Backup / Remote Access
● 1 Internal SATA2/SATA3 HDD Slot supporting up to 10TB (VT-TR2HA410, VT-TR2HA810, VT-TR8HA410) / 2
Internal SATA2/SATA3 HDD Slots supporting up to 20TB (VT-TR2HA1620, VT-TR8HA820, VT-TR8HA1620) /
8 Internal SATA2/SATA3 HDD Slots supporting up to 80TB (VT-TR2HA3280, VT-TR5HA3280)
● Applications for iOS & Android
● Remote Viewing over the Internet via Web Browser or LAN
● Mac OS® Client & CMS Central Management Software Included
● Supports both Dynamic and Static IP Addresses
● Control locally via USB Mouse or IR Remote control
PLEASE NOTE:
Complete User Guide, Software, Tools, and
Updates are available online. Visit: http://
www.vitekcctv.com/Downloads

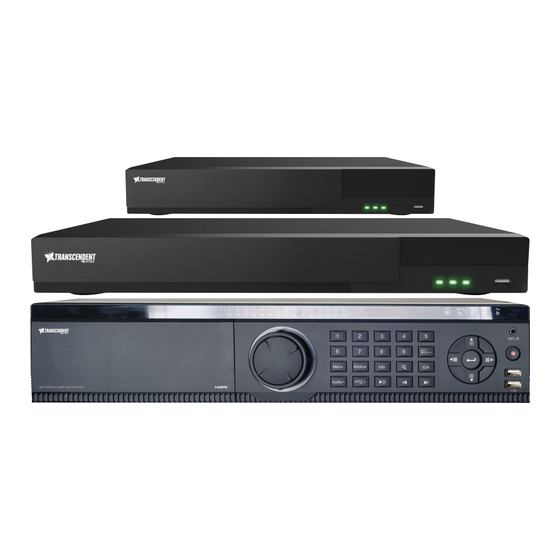

VT-TRHA Series
Transcendent Series 4, 8, 16, and 32
Channel HD-TVI/AHD/CVI/960H/IP Digital
Video Recorders
Advertisement
Related Manuals for Vitek VT-TRHA Series
Summary of Contents for Vitek VT-TRHA Series
- Page 1 VT-TRHA Series Transcendent Series 4, 8, 16, and 32 Channel HD-TVI/AHD/CVI/960H/IP Digital Video Recorders QUICK START GUIDE FEATURES: ● 4, 8, 16, or 32 Channel HD-TVI/AHD/CVI/960H BNC Inputs + IP Camera Support ● 2 Channel IP Camera Support (VT-TR2HA410, VT-TR8HA410), 4-Channel IP Camera Support (VT-...
- Page 2 SETUP & CONFIGURATION: 1. Notes ● Please read this instruction carefully for correct use of the product and preserve it for reference purposes. ● This manual is suitable for 4/8/16/32 CH HD TVI Hybrid DVR. All the examples and pictures used here are for reference only.
- Page 3 7. Network Configuration & Adding IP Cameras After you finish adding IP cameras, you can see the live images through the monitor of the DVR. The following will introduce how to add IP cameras via LAN/WAN. ►LAN 1 Set the network of the DVR. Go to Start → Settings → Network →TCP/IPv4. Input IP address, subnet mask, gateway, etc.
- Page 4 9. NAT ► NAT Settings 1 The DVR shall be powered on and connected to the network. TCP/ IPv4 Port DDNS E-mail UPnP Network Status 2 Go to Start → Settings → Network → TCP/IPv4. You can obtain the IP address, subnet mask and gateway automatically. You can also manually enter them according to the actual network situation.
