QUICK START GUIDE
KEY FEATURES:
• 32 Ch. HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 5MP Lite + IP Support
• 8-Channel Additional IP Camera Support up to 5 MegaPixel @ 30fps (40 Cameras Total),
with Ability to Change up to 16 HDA Inputs into IP Inputs
• Recording: 5MP Lite: 320fps, 4MP Lite/1080P: 480fps, 1080P Lite/720P/WD1: 960fps
• HDMI (1920×1080,1280×1024), VGA (1080P), and BNC Spot Video Output
• Simple plug and play, point-to-point connection from camera to DVR
• H.265 High Profile Compression
• Fully Programmable Intelligent Analytics including Object Removal / Museum Search,
Exception, Line Crossing, and Area Intrusion Detection (IP Camera Dependent)
• 2-Way Audio
• Audio In: RCA × 16 [Multi Pin Whip-Style Audio Breakout Connector DB25 to RCA]* + Output: RCA × 1
*Connector is Included
• Free VMS (Video Management Software) Lite and Standard versions available for
organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller]
• PTZ Control over RS-485 / Control over Coax (CoC)
• 16 Alarm inputs / 4 Alarm Outputs
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• 8 SATA2/3 HDD Slots supporting up to 80TB
(8 x 10TB HDD) Internal Storage + 1 x e-SATA
• Applications for iOS & Android®
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote control
• 3 Year Warranty
PLEASE NOTE:
Complete manual can be found at:
www.vitekcctv.com

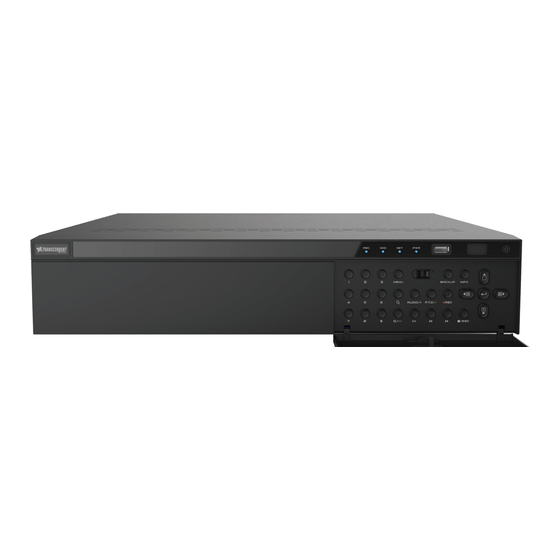

VT-TR2HA3281
Transcendent Series 2 MegaPixel
32 Channel 5-in-1
Digital Video Recorder
