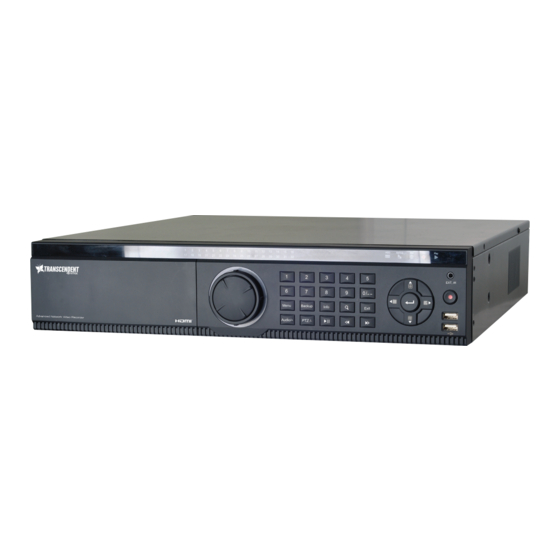

Vitek VT-TNR414P Quick Start Manual
Vt-tnr series
transcendent series 4, 8, 32, and 64 channel 5
megapixel h.265 real time network video
recorders with 4k hdmi output
Hide thumbs
Also See for VT-TNR414P:
- Manual (104 pages) ,
- User manual (186 pages) ,
- Quick start manual (12 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Manual
QUICK START GUIDE
FEATURES:
● 4, 8, 32, and 64 Channel Stand-alone Real-time IP Network Video Recorders
● Full 8 Megapixel Real-time recording & playback
● 4K HDMI & VGA Video Outputs
● H.265 / H.264 Video Compression
● Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
● Internal PoE Switch (VT-TNR414P, VT-TNR818P, and VT-TNR3216P)
● 1 Gigabit LAN
● Pentaplex: Live Display / Record / Playback / Backup / Remote Access
● Supports SATA2/SATA3 HDD
● Applications for iOS® & Android®
● Remote Viewing over the Internet via Web Browser or LAN
● Mac OS® Client & CMS Central Management Software Included
● Supports both Dynamic and Static IP Addresses
● Web-based remote configuration
● Control locally via Front Panel Controls, USB Mouse, or with the Included IR Remote control
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates
are available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
VT-TNR Series
Transcendent Series 4, 8, 32, and 64 Channel 5
MegaPixel H.265 Real Time Network Video
Recorders with 4K HDMI Output
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-TNR414P
Summary of Contents for Vitek VT-TNR414P
-
Page 1: Quick Start Guide
● H.265 / H.264 Video Compression ● Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models ● Internal PoE Switch (VT-TNR414P, VT-TNR818P, and VT-TNR3216P) ● 1 Gigabit LAN ● Pentaplex: Live Display / Record / Playback / Backup / Remote Access ●... - Page 2 The contents of this manual are subject to change without notice. ● To prevent electric shocks and risk of fire hazards, only use the power source that Vitek provided with your NVR. 2. Check Package Contents Please confirm that the device and all accessories are included in the package.
- Page 3 4. System Startup ● Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device ● Startup: ① Connect the output display device to the VGA/HDMI interface of the NVR. ②...
- Page 4 Date and Time Configuration: ● The date and time of the system needs to be set up if you use the wizard for the first time. Refer to the following figure. Set the time zone, system time, date format and time format. The DST will be enabled by default if the time zone selected includes DST.
- Page 5 QRCode: ● You can scan the QRCode through the mobile client which is installed on a mobile phone or Tablet to log into the mobile client instantly. Please refer to 12.1 Mobile Client Surveillance for details. Add Camera: ● Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click to add the searched camera.
- Page 6 ● Click ● Click to edit the found IP camera as shown on the below left. Input the new IP address, subnet mask, gateway, to edit the found IP camera as shown on the below left. Input the new IP address, subnet mask, gateway, username and the password of the camera.
- Page 7 Disk Settings: ● You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click “Format- ting” to format the disk. Click “Next” to continue...
- Page 8 Record Settings: ● Two record modes are available: Auto and Manual. ● Auto: Select one auto mode in the interface as shown below and then click “OK” button to save the settings. See 7.1.1 Mode Configuration for details. Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM June 2016...
