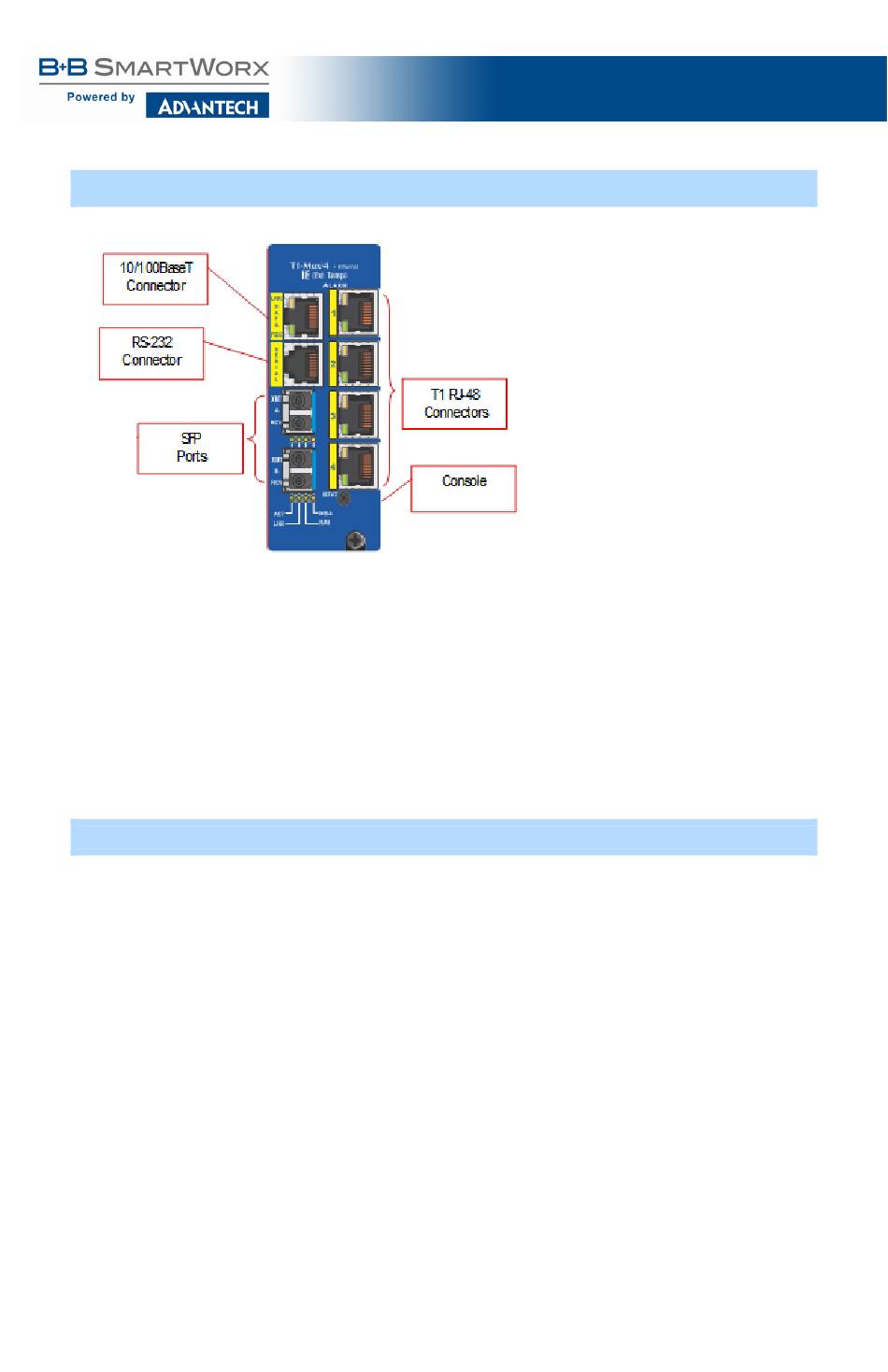

SERIAL PORT CONNECTION

The IE-iMcV-T1-Mux/4 + Ethernet includes a console serial port. To establish a link between a
module's console port and a local PC, connect the Mini Jack to DB9 adapter (optional
accessory available through B+B SmartWorx, part number 825-39950). This RS-232 serial
connection provides access to the IE-iMcV-T1-Mux/4 + Ethernet module CLI configuration
screens. Set the computer/terminal for VT-100 emulation, 38.4K baud, 8 data bits, 1 stop
bit, no parity and no flow control. Under the VT-100 emulation, set the backspace key to
send delete.
IVIEW ² MANAGEMENT SOFTW ARE
iView² is the B+B SmartWorx management software designed specifically for
the B+B SmartWorx "iMcV" family of modules. It features a GUI and gives
network managers the ability to monitor and control the manageable B+B
SmartWorx products.
iView² is available in several versions, including WebServer version 3.0, and
can also function as a snap-in module for HP OpenView Network Node
Manager and other third party SNMP Management software.
iView2 supports the following platforms: Windows 2000, XP, Vista, 7.
Please see the SNMP Management Module for software configuration options.
For assistance in selecting the best version of iView² for your operating
system, please visit B+B SmartWorx website or contact Technical Support.
IE-iMcV-T1-Mux/4+Ethernet
9
