FEATURES

IE-iMcV-T1-Mux/4 + Ethernet offers the following features:
• Four T1 ports with RJ-48 connectors
• One full bandwidth Ethernet 10/100BaseT port
• 1+1 protection switching via two SFP-based optical ports
• DDMI supported on SFP ports
• One end-to-end serial RS-232 port on RJ-45 connector; supports up to 120K baud rate
• Local CLI management console port on Mini Jack connector
• Remote management through iMediaChassis series with SNMP Management
• AIS generation on signal loss on all T1 interfaces
• SNMP Alarm TRAP reporting in managed chassis
• AutoCross for the Ethernet port
• Last Gasp on remote power loss
• Supports all MSA-compliant SFPs 155mpbs
• Link Fault Pass-Through (LFPT)
• Bandwidth control, 10/100 Frc/Adv, Flow Control, FXLL
The IE-iMcV-T1-Mux/4 + Ethernet module is a dual-wide iMcV module. Compatible
chassis series include the following:
• iMediaChassis series
• MediaChassis series (2 slot models )
• IE-MediaChassis series (2 slot models)
NOTE: Some options require items that are sold separately, available from B+B SmartWorx.

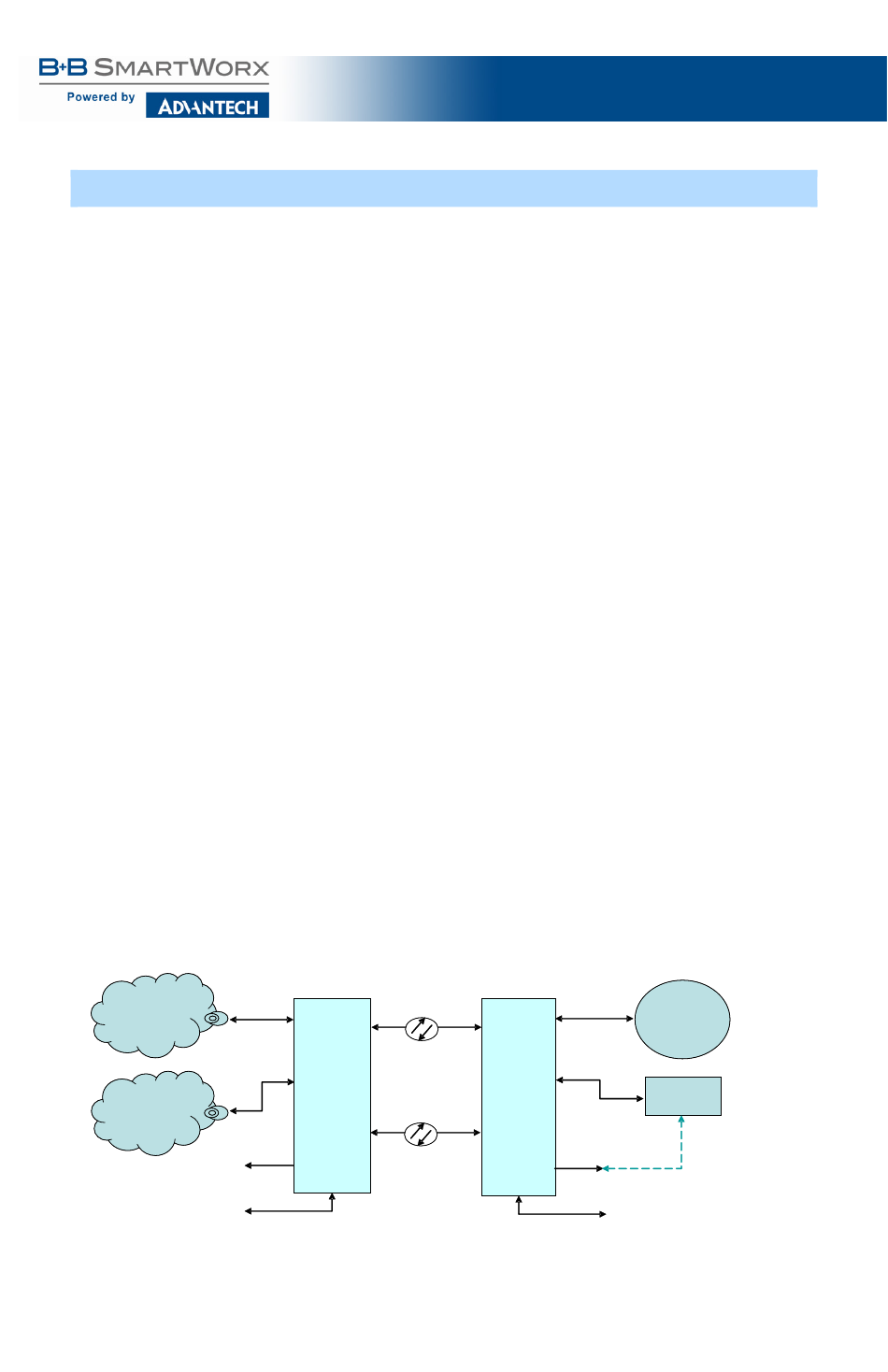

Product Application
The IE-iMcV-T1-Mux/4 + Ethernet delivers four T1 lines to a site over a protected, dedicated
fiber line. One serial RS-232 line and one 10/100BaseT Ethernet line can be carried at the
same time. All configurations run at full line rates with no interaction.
10/100BaseT
(1 Port)
ISP Internet
T1
(4 port)
TDM Network
PSTN
Serial Port
Local Far End
Console
IE-iMcV-T1-Mux/4+Ethernet
T1 - Mux
Dedicated
(Network)
Fiber
Host
Dedicated
Fiber
Protection
(1+1)
6
10/100BaseT
(1 Port)
T1 - Mux
T1
(Subscriber) (4 Port)
Remote
Serial Port
Remote Far End
Console
Customer
LAN
Customer
PABX
Console RS232
