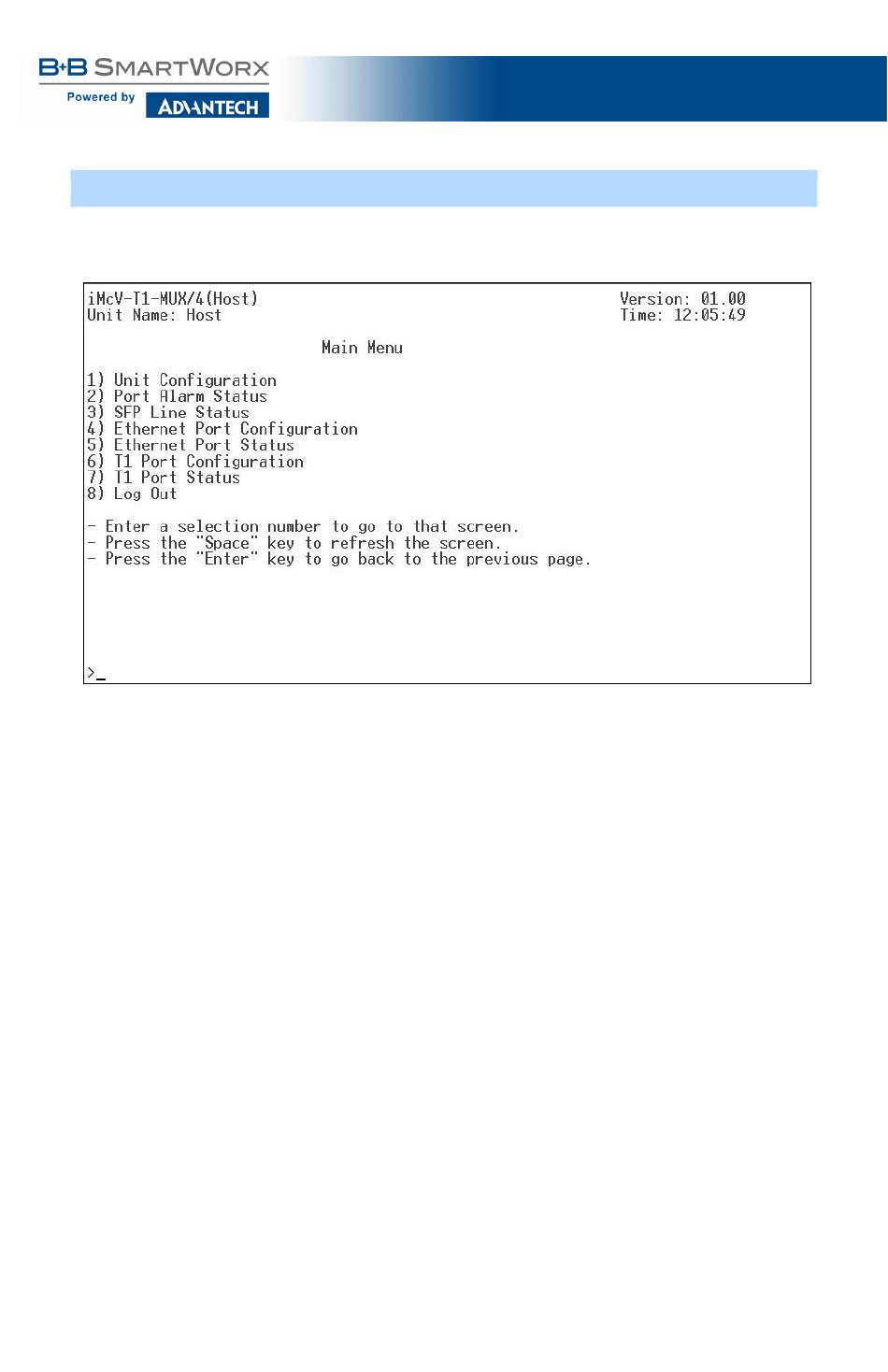

MAIN MENU

From the main menu, the end-user can view essential unit configuration data
and a clock indicating when the displayed information was last refreshed.
Menu Options
1 = Refer to the Unit Configuration Screen.
2 = Refer to the Port Alarm Status screen.
3 = Refer to the SFP Line Status screen; SFP DDMI alarms are also displayed.
4 = Refer to the Ethernet Port Configuration screen.
5 = Refer to the Ethernet Port Status screen.
6 = Refer to the T1 Port Configuration screen.
7 = Refer to the T1 Port Status screen.
8 = Logout.
NOTE: On all configuration screens, the title is the same as the "option" selected from the previous screen.
