DIP SWITCH ASSIGNMENTS

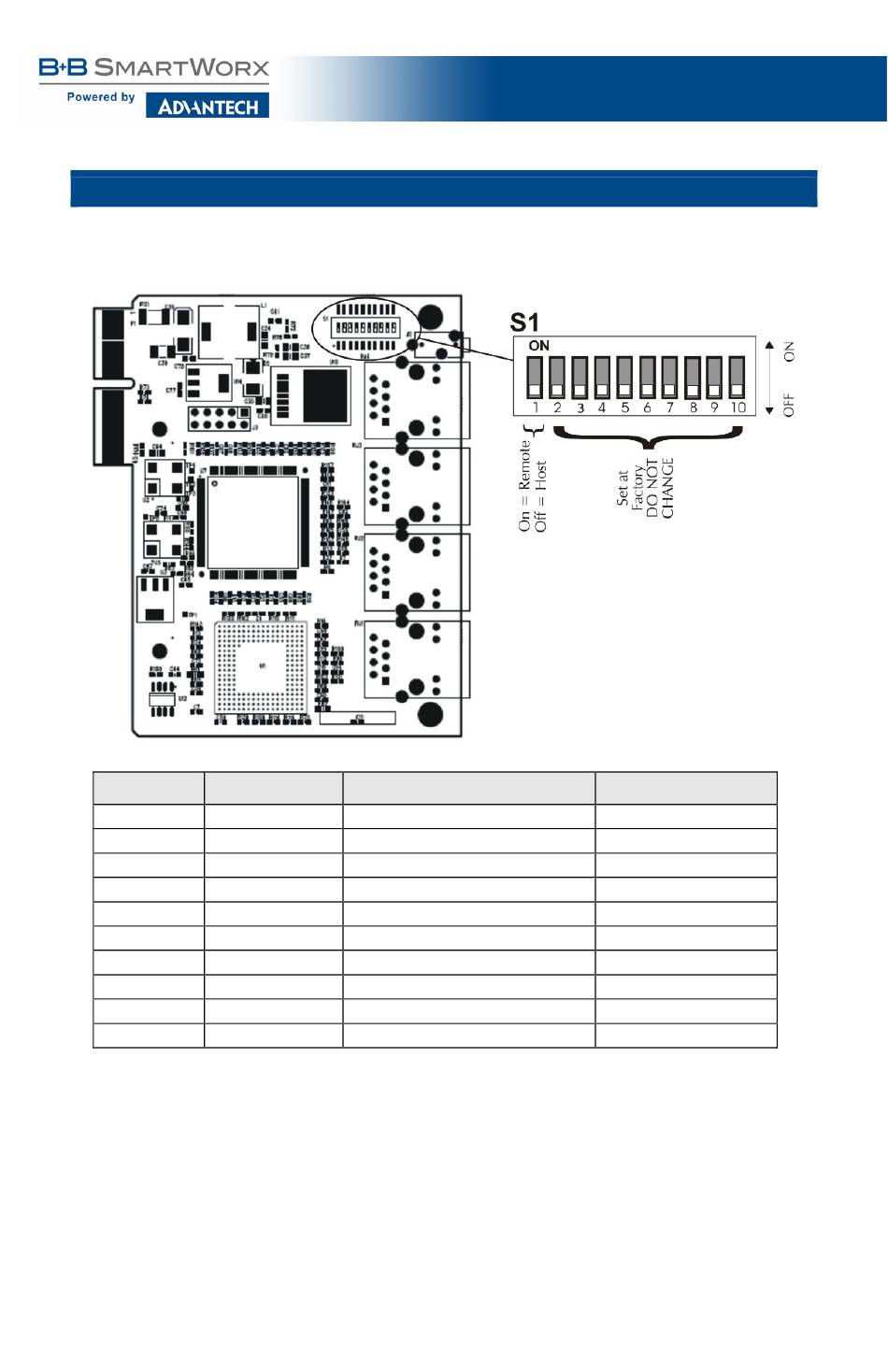

A single 10-position DIP Switch is located on the unit to set configuration. The switch positions
are as follows:
Switch #
Function
1
Host/Remote
2
Reserved
3
Reserved
4
Reserved
5
Reserved
6
Reserved
7
Reserved
8
Reserved
9
Reserved
10
Reserved
NOTE: Switch #1 must be set to ON at the Remote location.
Switches #2 through #10 are reserved for factory use only and must be OFF for proper operation.
IE-iMcV-T1-Mux/4+Ethernet
Settings
OFF = Host, ON = Remote
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
12
Factory Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
